Theben is a trusted manufacturer of innovative electrical control and building automation solutions, renowned for German engineering, reliability, and energy efficiency. Offering a comprehensive range of timers, motion and presence sensors, lighting controls, heating controls, and smart building technology, Theben helps improve comfort while reducing energy consumption. Suitable for residential, commercial, and industrial applications, Theben products deliver dependable performance, advanced functionality, and easy installation, making them a preferred choice for electricians, contractors, and facility managers seeking high-quality electrical control solutions.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theMova S360-100 DE WH Motion Detector (PIR) Ceiling Installation Indoor White
Theben 1030560
Ceiling-mounted motion detector for discreet indoor installation
Automatic, light-dependent lighting control for efficient operation
Mixed light measurement for reliable detection performance
Adjustable brightness threshold from 30 to 3000 lx
Adjustable light switch-off delay from 10 s to 60 min
360° detection angle with circular coverage up to 50 m² (Ø 8 m)
White finish for a clean, unobtrusive appearance
Preset values for fast commissioning; configurable via remote control
Protection class IP54 when fitted
This motion detector is designed for professional indoor applications where dependable, energy-efficient lighting control is required. Its discreet ceiling-mounted design makes it well suited for offices, hallways, and utility rooms, while the adjustable sensitivity and delay settings support precise, needs-based operation. Delivered with preset values for quick installation, it also offers convenient fine-tuning via remote control for added flexibility in everyday use.
.
Operating voltage
230 V AC
Frequency
50 Hz
Installation type
Ceiling mounting
Switching output
Light
Light measurement
Mixed light measurement
Setting range brightness
30 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
50 m² (ø 8 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
85 mm
Width
85 mm
Height
97 mm
Net weight
99 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben LUXA 103 S360-100-28 DE-UP WH Presence Detector (PIR) Ceiling Installation White
Theben 1030072
Passive infrared presence detector for long and narrow areas such as corridors and hallways
Rectangular detection range of 28 x 5 m with 360° detection angle
Suitable for ceiling mounting and flush-mounted installation
Controls one lighting channel with mixed light measurement
Optimized for LED loads up to 400 W
Supports semi-automatic and fully automatic operation
IP54 protection when fitted, suitable for wet rooms and outdoor applications
Integrated push button input, teach-in function, staircase lighting function, and parallel connection capability
Low stand-by consumption of approx. 0.5 W
This passive infrared presence detector is designed for professional lighting control in corridors, hallways, and other long, narrow spaces. Engineered for ceiling installation, it delivers reliable motion detection across a rectangular area of 28 x 5 meters at a mounting height of 3 meters. The device provides flexible operating modes, remote control compatibility, and enhanced installation options for demanding building environments. With IP54 protection when fitted and support for LED loads up to 400 W, it offers a robust and efficient solution for modern lighting management.
.
Frequency
50 Hz
Installation type
Ceiling mounting, flush-mounted
Switching output
Light
Light measurement
Mixed light measurement
Light switch-off delay
15 s - 30 min
Detection range
140 m² (28 x 5 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Stand-by consumption
ca. 0.5 W
Dimensions (L x W x H)
94 x 94 x 41 mm
Net weight
88 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben thePassa P360 DALI-2 S UP WH Corridor Presence Sensor Flush-Mounted Ceiling Installation White
Theben 2010390
DALI-2 certified presence and brightness sensor for flush-mounted ceiling installation
Rectangular detection area up to 30 x 5 m with two separately evaluated zones
Reliable mixed light measurement for precise lighting control
Adjustable detection sensitivity with integrated test mode for commissioning and verification
Suitable for demanding corridor applications and compatible DALI-2 controllers according to IEC 62386
Designed for professional lighting management, this DALI-2 sensor delivers accurate presence and brightness data to a Multi-Master Application Controller. Its two-zone rectangular detection field enables differentiated control strategies, making it particularly effective in long corridors and similar building areas. With a wide detection angle, adjustable sensitivity, and a practical test mode, the device supports efficient planning, commissioning, and operation in modern lighting installations.
.
Operating voltage
DALI (9.5 - 22.5 V DC)
Installation type
Ceiling installation, flush-mounted
Switching output
Sensor DALI
Light measurement
Mixed light measurement
Setting range brightness
10 - 10000 lx
Detection range
150 m² (30 x 5 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
117 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben thePassa P360-221 DALI UP WH Presence Detector (PIR) Corridor Ceiling Installation Flush-Mounted White
Theben 2010340
Flush-mounted presence detector for ceiling installation
DALI interface for intelligent lighting control
Suitable for corridor applications with switchable detection area
Controls up to 50 DALI electronic ballasts
Supports constant light control and switching operation with dimmable lighting
Adjustable standby dimming value for orientation lighting
Mixed light measurement for reliable brightness detection
IP54 protection when fitted
This flush-mounted presence detector is designed for professional ceiling installation in corridors and similar areas. With DALI control, flexible lighting modes, and a switchable detection range, it provides efficient and reliable automation for modern building environments. The adjustable brightness range, selectable switch-off delay, and standby dimming function help optimize energy use while improving occupant comfort. Dual push-button inputs and remote control capability further enhance installation flexibility and system integration.
.
Operating voltage
110 - 230 V AC
Frequency
50 - 60 Hz
Installation type
Ceiling installation, flush-mounted
Switching output
DALI
Light measurement
Mixed light measurement
Setting range brightness
10 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
150 m² (30 x 5 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
135 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben PIRA T6 Mini Motion Detector DE Ceiling Mounting
Theben 1030202
Compact motion detector for ceiling mounting in smaller indoor areas
360° detection range with coverage of up to 28 m² (ø 6 m)
Optimized for an installation height of 2.5 m
Controls one lighting channel via 230 V relay output
Mixed light measurement with adjustable brightness range from 5 to 1000 lx
Adjustable switch-off delay from 5 s to 15 min
Factory preset for fast commissioning: 100 lx and 2 min
Suitable for offices, utility rooms, and other compact indoor applications
This particularly compact motion detector is designed for reliable, fully automatic lighting control in smaller indoor spaces. With ceiling mounting, mixed light measurement, and a 360° detection area, it offers efficient occupancy-based switching for everyday use. The adjustable brightness threshold and time delay support flexible configuration, while the factory preset enables immediate installation and operation. Its space-saving design makes it an excellent choice for offices, storage areas, and utility rooms where dependable automation is required.
.
Operating voltage
230 V AC
Frequency
50 Hz
Installation type
Ceiling mounting
Switching output
Light
Light measurement
Mixed light measurement
Setting range brightness
5 - 1000 lx
Light switch-off delay
5 s - 15 min
Detection range
28 m² (ø 6 m)
Detection angle
360°
Type of protection
IP 21
Length
50 mm
Width
50 mm
Height
75 mm
Net weight
50 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben PIRA TO AP Motion Detector (PIR) for Outdoor Wall Mounting
Theben 1030206
Outdoor motion detector for fully automatic lighting control
180° semicircular detection area with up to 10 m range
Suitable for wall installation and surface mounting
Mixed light measurement for reliable switching based on ambient brightness
Adjustable light switch-off delay from 5 s to 15 min
IP 55 protection for dependable outdoor use
Low stand-by consumption of less than 0.5 W
Factory preset for fast installation and immediate operation
This Theben motion detector is designed for professional outdoor lighting automation at entrances, patios, and similar exterior areas. With its 180-degree detection angle and 10-meter range, it provides dependable motion-based switching while taking ambient light into account for efficient energy use. The adjustable brightness threshold and time delay allow flexible adaptation to site requirements, while the factory preset settings help reduce commissioning effort. Its compact design, wall-mount installation, and robust IP 55 protection make it a practical solution for reliable everyday use.
.
Frequency
50 Hz
Installation type
Wall installation, surface mounted
Switching output
Light
Light measurement
Mixed light measurement
Light switch-off delay
5 s - 15 min
Detection range
10 m
Detection angle
180°
Type of protection
IP 55
Stand-by consumption
< 0.5 W
Dimensions (L × W × H)
86 × 78 × 80 mm
Net weight
119 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda P360 DALI-2 S UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor DALI-2 Certified
Theben 2080090
DALI-2 certified presence and brightness sensor for flush-mounted ceiling installation
360° circular detection range with coverage of up to 452 m² (ø 24 m)
Triple mixed light measurement with four brightness instances and one presence instance
DALI telegram transmission according to IEC 62386 Part 303/304
Adjustable sensitivity and test mode for efficient commissioning
Suitable for indoor use with IP 54 protection when fitted
Requires a Multi-Master Application Controller for configuration
Designed for professional lighting control applications, this DALI-2 certified presence detector delivers reliable occupancy and brightness data to higher-level control systems. Its flush-mounted ceiling design supports discreet integration, while the wide 360° detection area ensures dependable coverage for offices, meeting rooms, corridors, and other indoor environments. Advanced mixed light measurement and configurable sensitivity contribute to precise operation and straightforward commissioning.
.
Operating voltage
DALI (9,5 - 22,5 V DC)
Installation type
Ceiling installation, flush-mounted
Switching output
Sensor DALI
Light measurement
Mixed light measurement
Setting range brightness
10 - 10000 lx
Detection range
452 m² (ø 24 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
117 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben thePassa P360-101 UP WH Presence Detector (PIR) Corridor Detector Ceiling Installation Flush-Mounted Indoor White
Theben 2010300
Flush-mounted presence detector for ceiling installation
Ideal for long corridors with a detection area of up to 30 x 4.5 m
Selectable detection area: 30 x 4.5 m or 15 x 4.5 m
360° detection angle and 150 m² coverage
Operating voltage: 110 - 230 V AC, 50 - 60 Hz
Switching outputs for light and presence
Mixed light measurement with brightness setting range of 30 - 3000 lx
Light switch-off delay: 10 s - 60 min
Presence switch-on delay: 0 s - 10 min / room surveillance
IP54 protection when fitted, suitable for demanding environments
Maximum installation height up to 6 m
This flush-mounted presence detector is engineered for professional corridor lighting control and occupancy detection in commercial and institutional environments. It combines reliable PIR sensing with mixed light measurement and configurable timing functions to support efficient, adaptive operation. The separate floating normally open contact enables integration with higher-level control systems, while the powerful light switching output offers dependable performance for advanced lighting applications. Fully or semi-automatic operation, teach-in, staircase lighting, and short-term presence detection provide exceptional flexibility for varied installation requirements.
.
Operating voltage
110 - 230 V AC
Frequency
50 - 60 Hz
Installation type
Ceiling installation, flush-mounted
Switching output
Light | Presence
Light measurement
Mixed light measurement
Setting range brightness
30 - 3000 lx
Light switch-off delay
10 s - 60 min
Switch-on delay presence
0 s - 10 min / room surveillance
Detection range
150 m² (30 x 5 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Dimensions (L x W x H)
83 x 110 x 110 mm
Net weight
152 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 1-3 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theMova S360-100 AP WH Motion Detector (PIR) Surface-Mounted Ceiling Mount for Indoor Use White
Theben 1030550
Surface-mounted ceiling installation for quick, cutout-free mounting
Automatic lighting control based on motion and ambient brightness
Mixed light measurement with brightness setting range from 30 to 3000 lx
Adjustable switch-off delay from 10 seconds to 60 minutes
360° detection angle with a detection range of up to 50 m² (Ø 8 m)
Suitable for indoor use with IP 54 protection when fitted
Delivered with preset values for immediate operational readiness
Remote configuration possible for convenient later adjustments
This white motion detector is designed for efficient ceiling-mounted surface installation and reliable, demand-based lighting control. It combines motion detection with mixed light measurement to help optimize energy use and enhance comfort in a wide range of indoor applications. With its circular detection area, adjustable settings, and immediate readiness after installation, it offers a practical and flexible solution for professional lighting automation.
.
Operating voltage
230 V AC
Frequency
50 Hz
Installation type
Ceiling installation, surface mounted
Switching output
Light
Light measurement
Mixed light measurement
Brightness setting range
30 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
50 m² (ø 8 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Dimensions (L x W x H)
97 x 97 x 71 mm
Net weight
135 g
Available 1-3 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda P360-100 M UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor White
Theben 2080020
Automatic presence- and brightness-dependent lighting control
Large circular detection area for spacious indoor environments
Flexible operation with fully automatic or semi-automatic mode
Parallel operation possible in master-master or master-slave configurations
Teach-in function for simple brightness threshold adjustment
Integrated staircase lighting function
Connection for push buttons or switches for manual operation
Remote parameterization for convenient setup and commissioning
This white presence detector is designed for flush-mounted ceiling installation and delivers reliable, intelligent lighting control across large interior areas. With mixed light measurement, a 360° detection angle, and a 452 m² detection range, it provides precise occupancy detection and efficient energy management. Suitable for demanding commercial applications, the device combines flexibility, ease of installation, and advanced control functions to support comfortable and automated lighting operation.
.
Operating voltage
110 - 230 V AC
Frequency
50 - 60 Hz
Installation type
Ceiling installation, flush-mounted
Switching output
Light
Light measurement
Mixed light measurement
Setting range brightness
30 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
452 m² (ø 24 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
144 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda P360-110 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor
Theben 2080040
DALI master presence detector for flush-mounted ceiling installation
Controls up to 50 DALI ballasts in broadcast mode
Large circular detection range up to 24 m diameter
360° detection angle for comprehensive room coverage
Adaptive 1-channel light measurement with mixed light measurement
Supports switch mode or constant light control with standby function
Integrated push button input for conventional push buttons
Easy DALI group configuration for flexible commissioning
Short-term presence function for optimized energy efficiency
Suitable for indoor applications with IP54 protection when fitted
Designed for modern lighting control requirements, the Theben theRonda P360-110 DALI UP WH combines precise presence detection with intelligent DALI control. Its wide detection area, flexible operating modes, and integrated push button interface make it a practical solution for efficient, user-friendly lighting management in offices, meeting rooms, corridors, and other indoor environments.
.
Operating voltage
110 - 230 V AC
Frequency
50 - 60 Hz
Installation type
Ceiling installation, flush-mounted
Switching output
DALI
Light measurement
Mixed light measurement
Setting range brightness
10 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
452 m² (ø 24 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
135 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda P360-330 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor
Theben 2080045
Powerful DALI master for flush-mounted ceiling installation
Controls up to 50 DALI ballasts and up to three addressable lighting channels
Circular detection area up to 24 m diameter with 360° coverage
Adaptive 3-channel light measurement with mixed light measurement
Flexible operation as switch or constant lighting control with standby function
Up to three push button inputs for conventional push buttons
Simple DALI group configuration and optional remote assignment
Short-term presence function for enhanced lighting control
This Theben DALI presence detector is designed for professional indoor lighting control in ceiling-mounted applications. It combines precise presence detection with flexible daylight-dependent switching and dimming, helping optimize comfort, energy efficiency, and automation in offices, meeting rooms, corridors, and similar spaces. With support for up to 50 DALI ballasts and configurable lighting channels, it provides a scalable and practical solution for modern lighting systems.
.
Operating voltage
110 - 230 V AC
Frequency
50 - 60 Hz
Installation type
Ceiling installation, flush-mounted
Switching output
DALI
Light measurement
Mixed light measurement
Setting range brightness
10 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
452 m² (ø 24 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
137 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda P360-101 M UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor White
Theben 2080025
White flush-mounted presence detector for ceiling installation
Controls lighting and HVAC via two separate channels based on presence and brightness
360° circular detection area with a detection range of 452 m² (ø 24 m)
Mixed light measurement for reliable brightness-based control
Operating voltage: 110 - 230 V AC, frequency: 50 - 60 Hz
Adjustable brightness threshold from 30 to 3000 lx
Switch-off delay for lighting: 10 s - 60 min
Presence switch-on delay: 0 s - 10 min / room surveillance
Suitable for fully or semi-automatic operation
Master-master or master-slave configuration possible for larger areas
Integrated teach-in function and connection for manual push buttons or switches
Floating presence channel for HVAC
Convenient parameter setting via remote control
Protection rating: IP 54 when fitted
This Theben presence detector provides a professional room automation solution for modern building management. Designed for flush-mounted ceiling installation, it delivers dependable presence- and brightness-based control of lighting and HVAC systems through two independent channels. Its circular detection pattern and extensive coverage make it well suited for offices, meeting rooms, corridors, and other commercial interior spaces. With flexible operating modes, adjustable parameters, and support for scalable system configurations, it offers efficient control, enhanced comfort, and reduced energy consumption.
.
Operating voltage
110 - 230 V AC
Frequency
50 - 60 Hz
Installation type
Ceiling installation
Mounting type
Flush-mounted
Switching output
Light | Presence
Light measurement
Mixed light measurement
Brightness setting range
30 - 3000 lx
Light switch-off delay
10 s - 60 min
Presence switch-on delay
0 s - 10 min / Room surveillance
Detection range
452 m² (ø 24 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
152 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 1-3 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda S360-101 UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor White
Theben 2080525
White flush-mounted presence detector for ceiling installation
Controls lighting and HVAC systems for efficient room automation
Operating voltage: 110 - 230 V AC, 50 - 60 Hz
Detection range: 50 m² (ø 8 m) with 360° coverage
Detects seated people up to 4 m and walking people up to 8 m
Mixed light measurement with brightness setting range from 30 to 3000 lx
Adjustable light switch-off delay: 10 s to 60 min
Adjustable switch-on delay for presence: 0 s to 10 min / room surveillance
Switching outputs for light and presence
Fully or semi-automatic operation with push button/switch input
Remote controllable with teach-in function and adjustable sensitivity
Protection rating: IP54 when fitted
Low power consumption of just 0.1 W
Designed for professional room automation, the Theben theRonda S360-101 UP WH combines reliable presence detection with flexible control for lighting and HVAC applications. Its ceiling-mounted PIR design delivers precise 360° monitoring, while adjustable time and brightness settings support energy-efficient operation in a wide range of indoor environments. With robust IP54 protection when fitted, remote control capability, and convenient installation, this detector offers a dependable and economical solution for modern building management.
.
Brand
Theben
Shortened Description
Theben theRonda S360-101 UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor White
Operating Voltage
110 - 230 V AC
Frequency
50 - 60 Hz
Installation Type
Ceiling installation, flush-mounted
Switching Output
Light | Presence
Light Measurement
Mixed light measurement
Brightness Setting Range
30 - 3000 lx
Light Switch-Off Delay
10 s - 60 min
Switch-On Delay Presence
0 s - 10 min / room surveillance
Detection Range
50 m² (ø 8 m)
Detection Angle
360°
Type of Protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net Weight
143 g
Available 1-3 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theMura S180-100 UP WH Motion Detector (PIR) Flush-Mounted Wall Installation White
Theben 2060650
Passive infrared motion detector for flush-mounted wall installation
170° semi-circular detection area covering up to 238 m² (14 x 17 m)
Mixed light measurement for precise lighting control
Adjustable brightness threshold from 5 to 1000 lx
Light switch-off delay with impulse and 10 s to 30 min settings
Fully or semi-automatic operation for flexible application
Integrated, lockable push button for manual override
Teach-in, staircase lighting, and pulse functions
Detection area extendable via master/slave circuit
Supplied with matching Theben bezel frame
Theben theMura S180-100 UP WH is a professional PIR motion detector designed for discreet flush-mounted wall installation. It delivers reliable presence-based lighting control with mixed light measurement, adaptable switching settings, and a wide detection range, making it an efficient solution for corridors, entrances, stairwells, and other interior lighting applications. Its integrated manual override and flexible operating modes support convenient, project-specific use.
.
Operating voltage
230 V AC
Frequency
50 - 60 Hz
Installation type
Wall installation, flush-mounted
Switching output
Light
Light measurement
Mixed light measurement
Setting range brightness
5 - 1000 lx
Light switch-off delay
Impulse, 10 s - 30 min
Detection range
238 m² (14 x 17 m)
Detection angle
170°
Type of protection
IP 20
Length
57 mm
Width
85 mm
Height
85 mm
Net weight
111 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben PlanoSpot 360 DALI-2 S DE WH Presence Detector (PIR) Ceiling Installation White DALI-2 Certified
Theben 2030190
DALI-2 certified presence sensor for advanced room automation
Ceiling mounting for discreet and efficient installation
Mixed light measurement for reliable brightness detection
360° detection angle with a detection range of 49 m² (7 x 7 m)
Swiveling lens for precise adjustment of the square detection area up to 8 x 8 m
Provides presence information (2 instances) and brightness data (4 instances)
Compact design with IP20 protection rating
This Theben presence sensor is designed for professional building automation applications where precision, flexibility, and dependable detection are essential. Its DALI-2 certification and detailed presence and brightness data support intelligent lighting control and efficient space management. With a ceiling-mounted design and adjustable detection area, it offers a practical solution for modern interior environments requiring accurate occupancy sensing.
.
Brand
Theben
Installation type
Ceiling mounting
Light measurement
Mixed light measurement
Detection range
49 m² (7 x 7 m)
Detection angle
360°
Type of protection
IP 20
Length
69 mm
Width
76 mm
Height
76 mm
Net weight
97 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 1-3 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda S360-101 FLAT DE WH Presence Detector (PIR) Ceiling Installation Indoors 1 Presence Channel for HVAC white
Theben 2080545
Ceiling-mounted presence detector for multifunctional room automation
Controls lighting as well as HVAC systems via two separate channels
360° circular detection area with a coverage range of up to 50 m² (ø 8 m)
Brightness-dependent automatic switching with mixed light measurement
Adjustable light switch-off delay from 10 s to 60 min
Configurable sensitivity with preset values for quick commissioning
Convenient parameter adjustment via remote control
Suitable for indoor use with IP54 protection when fitted
Designed for professional room automation, this Theben presence detector combines reliable occupancy detection with efficient control of lighting and HVAC applications. Its ceiling-mount design, mixed light measurement, and adjustable operating parameters support flexible use in a wide range of commercial environments. With preset commissioning values and remote configuration options, it offers a practical and time-saving solution for installers and facility operators seeking dependable performance and straightforward maintenance.
.
Operating voltage
230 V AC
Frequency
50 Hz
Installation type
Ceiling mounting
Switching output
Light | Presence
Light measurement
Mixed light measurement
Setting range brightness
30 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
50 m² (ø 8 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
87 mm
Width
85 mm
Height
85 mm
Net weight
106 g
Available 1-3 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 1-3 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda S360-100 UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor White
Theben 2080520
White flush-mounted presence detector for ceiling installation
Reliable mixed light measurement for precise lighting control
Detection range up to 50 m² with 360° coverage
Suitable for seated persons up to 4 m and walking persons up to 8 m at 3 m installation height
Adjustable brightness threshold from 30 to 3000 lx
Adjustable switch-off delay from 10 seconds to 60 minutes
Light switching output for loads up to 2300 W
Manual operation via push button/switch input
Selectable fully or semi-automatic operation
Teach-in function, adjustable sensitivity, and remote control capability
Low power consumption of 0.1 W
Protection rating IP54 when fitted
This Theben presence detector combines dependable motion and light sensing with flexible control options for professional indoor lighting applications. Designed for ceiling installation and flush mounting, it supports efficient, automated illumination in offices, corridors, and other commercial environments. Its adjustable settings, manual override capability, and robust IP54 protection provide a versatile and energy-efficient solution for demanding installation requirements.
.
Operating voltage
110 - 230 V AC
Frequency
50 - 60 Hz
Installation type
Ceiling installation
Mounting
Flush-mounted
Switching output
Light
Light measurement
Mixed light measurement
Brightness setting range
30 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
50 m² (ø 8 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
137 g
Available 1-3 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

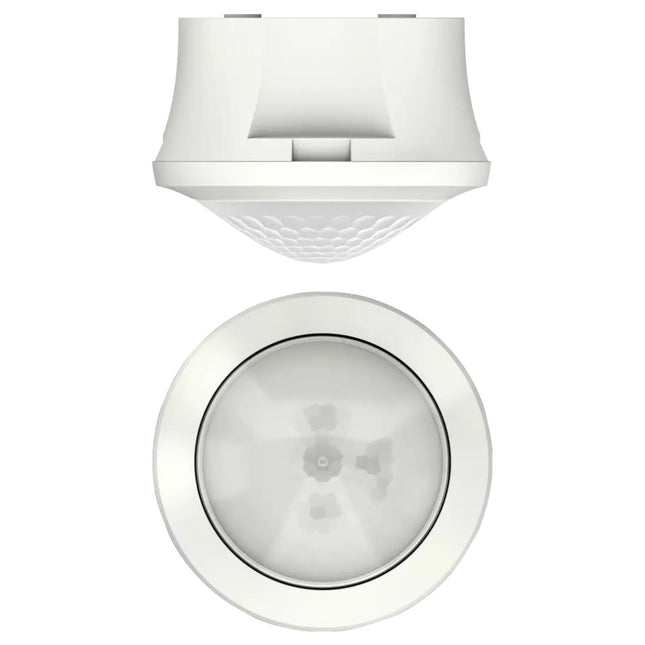

Theben theRonda S360-100 AP WH Presence Detector (PIR) Ceiling Installation Surface-Mounted Indoor White
Theben 2080550
Surface-mounted ceiling installation for fast, cutout-free mounting
Automatic lighting control based on motion and ambient brightness
Mixed light measurement with adjustable brightness threshold from 30 to 3000 lx
360° detection angle with up to 50 m² coverage, diameter up to 8 m
Adjustable switch-off delay from 10 seconds to 60 minutes
Preset factory settings for immediate operational readiness
Remote configuration capability for convenient later adjustment
IP 54 protection when fitted
This white motion detector is designed for professional indoor lighting control in ceiling-mounted applications. It combines reliable motion detection with mixed light measurement to support energy-efficient operation and consistent comfort in rooms with varying ambient conditions. The compact, surface-mounted design enables quick installation, while adjustable settings allow precise adaptation to the specific requirements of the installation environment. With preset values and remote setup options, the device provides a practical solution for efficient commissioning and ongoing control.
.
Operating voltage
230 V AC
Frequency
50 Hz
Installation type
Ceiling installation, surface mounted
Switching output
Light
Light measurement
Mixed light measurement
Brightness setting range
30 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
50 m² (ø 8 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Dimensions
97 x 97 x 71 mm
Net weight
134 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda S360-100 FLAT DE WH Presence Detector (PIR) Ceiling Installation Indoor White
Theben 2080540
Presence detector for discreet ceiling mounting
Reliable automatic lighting control for indoor applications
Brightness-dependent switching with integrated mixed light measurement
Adjustable light threshold from 30 to 3000 lx
Adjustable switch-off delay from 10 s to 60 min
Circular detection range of 50 m² (Ø 8 m)
360° detection angle for comprehensive room coverage
Preset values for quick commissioning
Remote control configuration supported for convenient adjustment
IP54 protection when fitted
This presence detector is designed for professional lighting automation in standard indoor rooms. Its discreet ceiling-mounted design blends seamlessly into the environment while delivering dependable detection and precise brightness evaluation across varying lighting conditions. The circular coverage area and wide 360° detection angle provide efficient room-wide sensing, making it suitable for offices, corridors, meeting rooms, and similar applications. Adjustable parameters enable flexible adaptation to room requirements, while preset settings simplify installation and commissioning. For added convenience, configuration can also be performed using a remote control.
.
Operating voltage
230 V AC
Frequency
50 Hz
Installation type
Ceiling mounting
Switching output
Light
Light measurement
Mixed light measurement
Setting range brightness
30 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
50 m² (ø 8 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
87 mm
Width
85 mm
Height
85 mm
Net weight
101 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

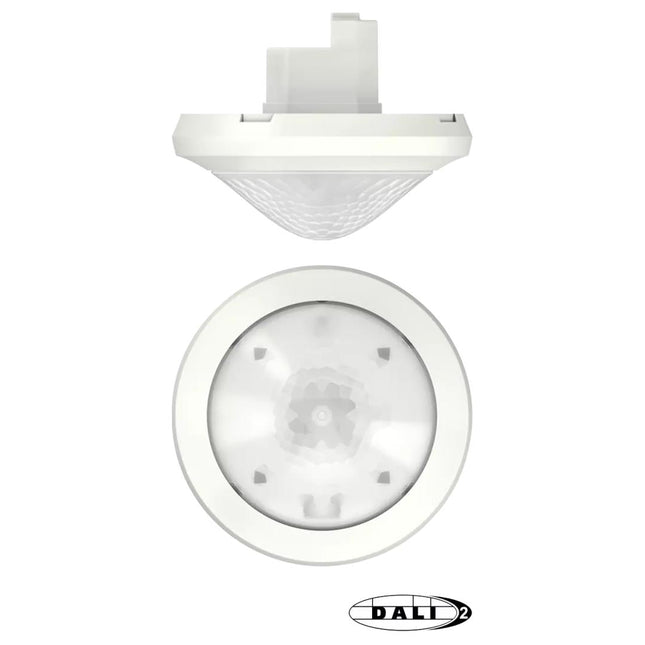

Theben theRonda S360-110 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor
Theben 2080580
DALI presence detector for flush-mounted ceiling installation
Acts as a DALI master and controls up to 50 DALI ballasts
360° detection with circular coverage up to 8 m diameter
Switching output via DALI broadcast mode for one lighting channel
Integrated push button input for conventional push buttons
Suitable for switch operation or constant light control with standby function
Adaptive 1-channel light measurement and short-term presence function
Mixed light measurement for reliable brightness control
Flexible push button assignment via optional remote control
IP54 protection when fitted
This DALI presence detector is designed for efficient, flexible lighting control in professional indoor applications. Its flush-mounted ceiling design supports discreet installation, while the integrated DALI master functionality simplifies setup and group configuration. With mixed light measurement, adjustable brightness settings, and a configurable switch-off delay, it helps optimize both comfort and energy efficiency. The integrated push button input and optional remote control assignment provide added flexibility for a wide range of project requirements.
.
Operating voltage
110 - 230 V AC
Frequency
50 - 60 Hz
Installation type
Ceiling installation, flush-mounted
Switching output
DALI
Light measurement
Mixed light measurement
Setting range brightness
10 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
50 m² (ø 8 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
128 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda S360 DALI-2 S UP WH Presence Detector (PIR) Presence Sensor Ceiling Installation Flush-Mounted Indoor DALI2-Certified
Theben 2080590
DALI-2 certified presence and brightness sensor for professional building automation
Flush-mounted ceiling installation for discreet indoor integration
360° detection with a coverage area of up to 50 m² (ø 8 m)
Single-channel mixed light measurement for precise brightness evaluation
Transmits presence and brightness values via DALI telegram in accordance with IEC 62386 Part 303/304
Adjustable sensitivity and test mode for simplified commissioning
Requires a Multi-Master Application Controller supporting the relevant standard components
Compact design with IP54 protection when fitted
Theben theRonda S360 DALI-2 S UP WH is a reliable flush-mounted presence detector designed for demanding lighting control applications. With DALI-2 certification, it delivers accurate presence and brightness data to a higher-level controller, supporting efficient, automated lighting management in commercial and institutional environments. Its wide 360° detection range, mixed light measurement, and easy commissioning features make it a practical solution for modern indoor installations.
.
Operating voltage
DALI (9,5 - 22,5 V DC)
Installation type
Ceiling installation
Mounting type
Flush-mounted
Switching output
Sensor DALI
Light measurement
Mixed light measurement
Setting range brightness
10 - 10000 lx
Detection range
50 m² (ø 8 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
165 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Theben theRonda P360 DALI-2 HCL UP WH
Theben 2080095
Passive infrared presence detector for flush-mounted ceiling installation
DALI-2 certified base unit for the DALI-2 Room Solution
Supports control of up to four addressable lighting channels
Mixed light measurement with a brightness setting range of 10–3000 lx
Detection area of 452 m² with a 360° detection angle
Time switch and time-of-day-dependent colour temperature control (HCL)
Compatible with DALI ECGs, DALI relays, and DALI push button interfaces
Commissioning via app for convenient setup and operation
Type of protection IP54 when fitted
This flush-mounted ceiling presence detector is designed for professional lighting control in modern building environments. As the base unit for the innovative DALI-2 Room Solution, it combines precise motion detection with intelligent light management to support energy-efficient and user-centric room automation. With support for HCL, RGBW lamp control, and timed actions, it delivers a flexible solution for demanding applications in offices, meeting rooms, and commercial interiors.
.
Operating voltage
230 V AC
Frequency
50 Hz
Installation type
Ceiling installation, flush-mounted
Switching output
DALI
Light measurement
Mixed light measurement
Setting range brightness
10 - 3000 lx
Light switch-off delay
10 s - 60 min
Detection range
452 m² (ø 24 m)
Detection angle
360°
Type of protection
IP 54 (when fitted)
Length
83 mm
Width
110 mm
Height
110 mm
Net weight
135 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

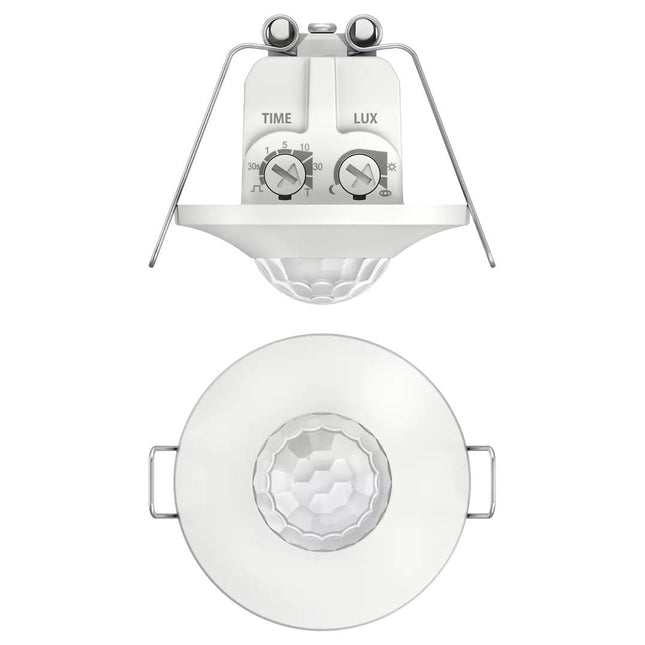

Theben thePiccola P360-100 DE WH Presence Detector (PIR) Mini Presence Detector Ceiling Installation Recessed Ceiling Installation White
Theben 2090200
Compact mini presence detector for discreet ceiling installation
Automatic brightness-dependent lighting control
360° circular detection area with up to 50 m² coverage
Integrated mixed light measurement for precise operation
Adjustable brightness threshold from 5 to 1000 lx
Adjustable light switch-off delay from 30 s to 30 min
Remote-controllable with manual switching function
Suitable for operating voltages from 110 to 240 V AC
This compact presence detector is designed for efficient, discreet lighting automation in smaller rooms and commercial environments. Its ceiling-mounted design supports unobtrusive integration, while the mixed light measurement delivers reliable performance under varying ambient conditions. With flexible adjustment options for brightness and switch-off delay, the device can be tailored to specific application requirements. The detector also supports manual light control and remote operation, providing enhanced convenience and operational control.
.
Brand
Theben
Detection angle
360°
Detection range
50 m² (ø 8 m)
Operating voltage
110 - 240 V AC
Frequency
50 - 60 Hz
Installation type
Ceiling mounting
Switching output
Light
Light measurement
Mixed light measurement
Setting range brightness
5 - 1000 lx
Light switch-off delay
30 s - 30 min
Type of protection
IP 55 (Sensor), IP 20 (power module)
Length
44 mm
Width
44 mm
Height
43 mm
Net Weight
93 g
Available 10-16 working days
This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.
