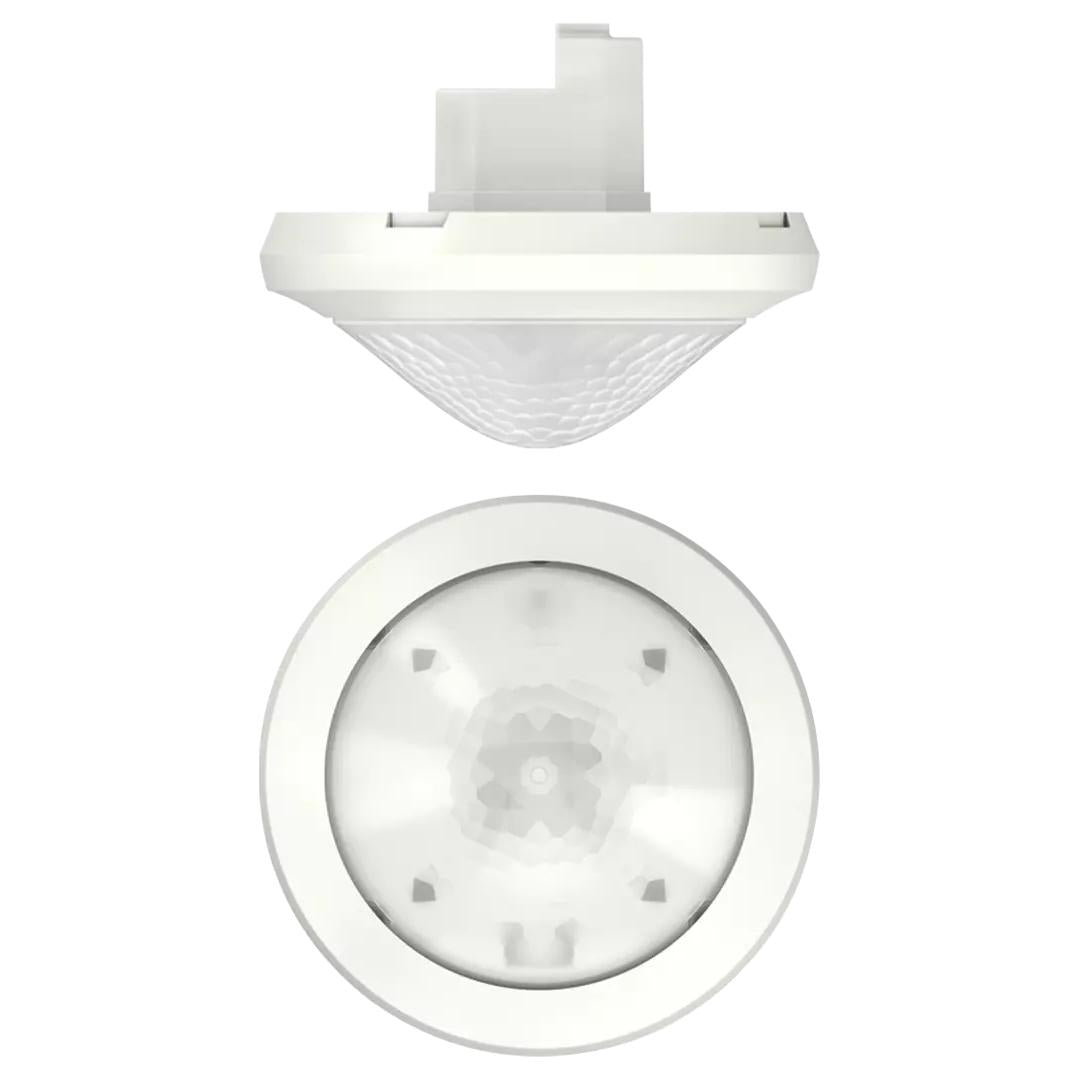

Theben theRonda P360-101 M UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor White

Description

Theben theRonda P360-101 M UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor White

Theben 2080025

  • White flush-mounted presence detector for ceiling installation
  • Controls lighting and HVAC via two separate channels based on presence and brightness
  • 360° circular detection area with a detection range of 452 m² (ø 24 m)
  • Mixed light measurement for reliable brightness-based control
  • Operating voltage: 110 - 230 V AC, frequency: 50 - 60 Hz
  • Adjustable brightness threshold from 30 to 3000 lx
  • Switch-off delay for lighting: 10 s - 60 min
  • Presence switch-on delay: 0 s - 10 min / room surveillance
  • Suitable for fully or semi-automatic operation
  • Master-master or master-slave configuration possible for larger areas
  • Integrated teach-in function and connection for manual push buttons or switches
  • Floating presence channel for HVAC
  • Convenient parameter setting via remote control
  • Protection rating: IP 54 when fitted

This Theben presence detector provides a professional room automation solution for modern building management. Designed for flush-mounted ceiling installation, it delivers dependable presence- and brightness-based control of lighting and HVAC systems through two independent channels. Its circular detection pattern and extensive coverage make it well suited for offices, meeting rooms, corridors, and other commercial interior spaces. With flexible operating modes, adjustable parameters, and support for scalable system configurations, it offers efficient control, enhanced comfort, and reduced energy consumption.

.

Operating voltage 110 - 230 V AC
Frequency 50 - 60 Hz
Installation type Ceiling installation
Mounting type Flush-mounted
Switching output Light | Presence
Light measurement Mixed light measurement
Brightness setting range 30 - 3000 lx
Light switch-off delay 10 s - 60 min
Presence switch-on delay 0 s - 10 min / Room surveillance
Detection range 452 m² (ø 24 m)
Detection angle 360°
Type of protection IP 54 (when fitted)
Length 83 mm
Width 110 mm
Height 110 mm
Net weight 152 g

Read more

Theben theRonda P360-101 M UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor White

Product form

SKU: 2080025

Theben theRonda P360-101 M UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor White Theben 2080025 White flush-mounted presence detector... Read more

£231.15 ex VAT £277.38 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 110 - 230 V AC
    Frequency 50 - 60 Hz
    Installation type Ceiling installation
    Mounting type Flush-mounted
    Switching output Light | Presence
    Light measurement Mixed light measurement
    Brightness setting range 30 - 3000 lx
    Light switch-off delay 10 s - 60 min
    Presence switch-on delay 0 s - 10 min / Room surveillance
    Detection range 452 m² (ø 24 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Length 83 mm
    Width 110 mm
    Height 110 mm
    Net weight 152 g
