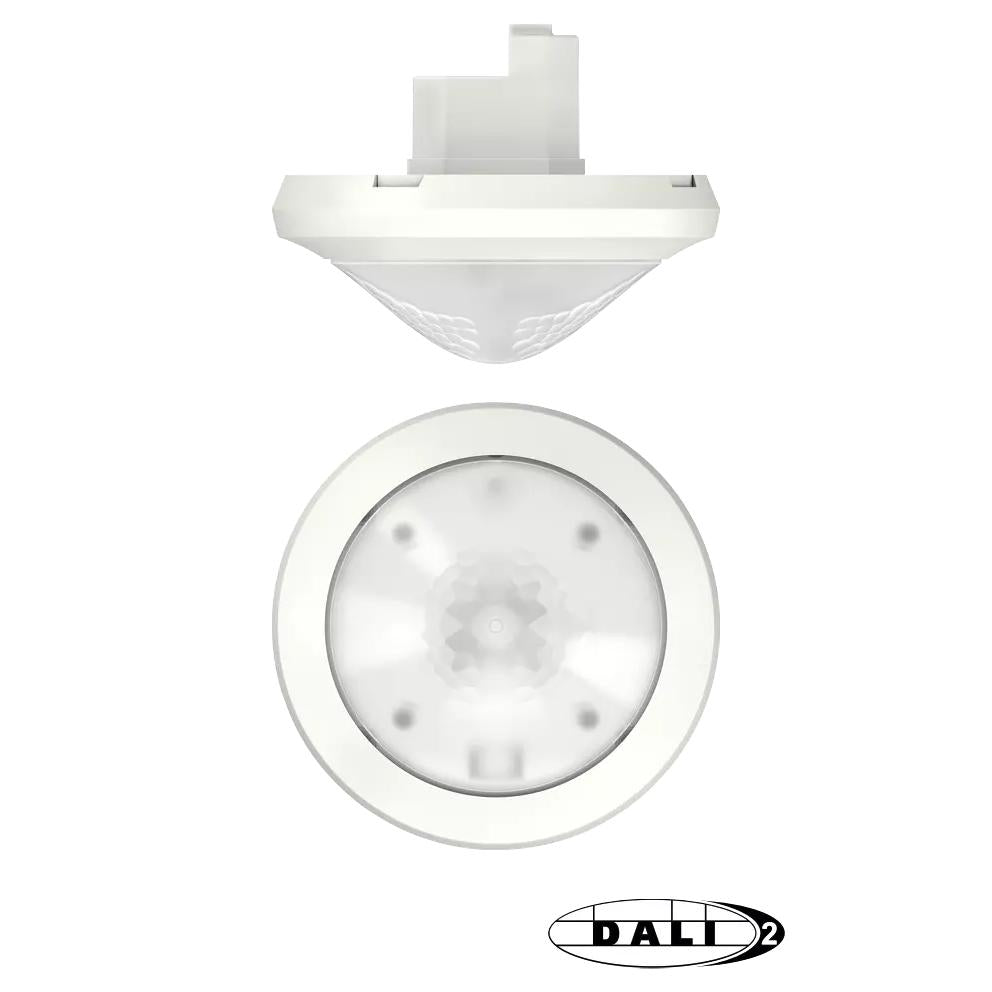

Theben thePassa P360-221 DALI UP WH Presence Detector (PIR) Corridor Ceiling Installation Flush-Mounted White

Description

Theben thePassa P360-221 DALI UP WH Presence Detector (PIR) Corridor Ceiling Installation Flush-Mounted White

Theben 2010340

  • Flush-mounted presence detector for ceiling installation
  • DALI interface for intelligent lighting control
  • Suitable for corridor applications with switchable detection area
  • Controls up to 50 DALI electronic ballasts
  • Supports constant light control and switching operation with dimmable lighting
  • Adjustable standby dimming value for orientation lighting
  • Mixed light measurement for reliable brightness detection
  • IP54 protection when fitted

This flush-mounted presence detector is designed for professional ceiling installation in corridors and similar areas. With DALI control, flexible lighting modes, and a switchable detection range, it provides efficient and reliable automation for modern building environments. The adjustable brightness range, selectable switch-off delay, and standby dimming function help optimize energy use while improving occupant comfort. Dual push-button inputs and remote control capability further enhance installation flexibility and system integration.

.

Operating voltage 110 - 230 V AC
Frequency 50 - 60 Hz
Installation type Ceiling installation, flush-mounted
Switching output DALI
Light measurement Mixed light measurement
Setting range brightness 10 - 3000 lx
Light switch-off delay 10 s - 60 min
Detection range 150 m² (30 x 5 m)
Detection angle 360°
Type of protection IP 54 (when fitted)
Length 83 mm
Width 110 mm
Height 110 mm
Net weight 135 g

Read more

Theben thePassa P360-221 DALI UP WH Presence Detector (PIR) Corridor Ceiling Installation Flush-Mounted White

Product form

SKU: 2010340

Theben thePassa P360-221 DALI UP WH Presence Detector (PIR) Corridor Ceiling Installation Flush-Mounted White Theben 2010340 Flush-mounted presence detector for... Read more

£152.01 ex VAT £182.41 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 110 - 230 V AC
    Frequency 50 - 60 Hz
    Installation type Ceiling installation, flush-mounted
    Switching output DALI
    Light measurement Mixed light measurement
    Setting range brightness 10 - 3000 lx
    Light switch-off delay 10 s - 60 min
    Detection range 150 m² (30 x 5 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Length 83 mm
    Width 110 mm
    Height 110 mm
    Net weight 135 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben thePassa P360-221 DALI UP WH Presence Detector (PIR) Corridor Ceiling Installation Flush-Mounted White

    Theben 2010340

    • Flush-mounted presence detector for ceiling installation
    • DALI interface for intelligent lighting control
    • Suitable for corridor applications with switchable detection area
    • Controls up to 50 DALI electronic ballasts
    • Supports constant light control and switching operation with dimmable lighting
    • Adjustable standby dimming value for orientation lighting
    • Mixed light measurement for reliable brightness detection
    • IP54 protection when fitted

    This flush-mounted presence detector is designed for professional ceiling installation in corridors and similar areas. With DALI control, flexible lighting modes, and a switchable detection range, it provides efficient and reliable automation for modern building environments. The adjustable brightness range, selectable switch-off delay, and standby dimming function help optimize energy use while improving occupant comfort. Dual push-button inputs and remote control capability further enhance installation flexibility and system integration.

    .

    Operating voltage 110 - 230 V AC
    Frequency 50 - 60 Hz
    Installation type Ceiling installation, flush-mounted
    Switching output DALI
    Light measurement Mixed light measurement
    Setting range brightness 10 - 3000 lx
    Light switch-off delay 10 s - 60 min
    Detection range 150 m² (30 x 5 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Length 83 mm
    Width 110 mm
    Height 110 mm
    Net weight 135 g
