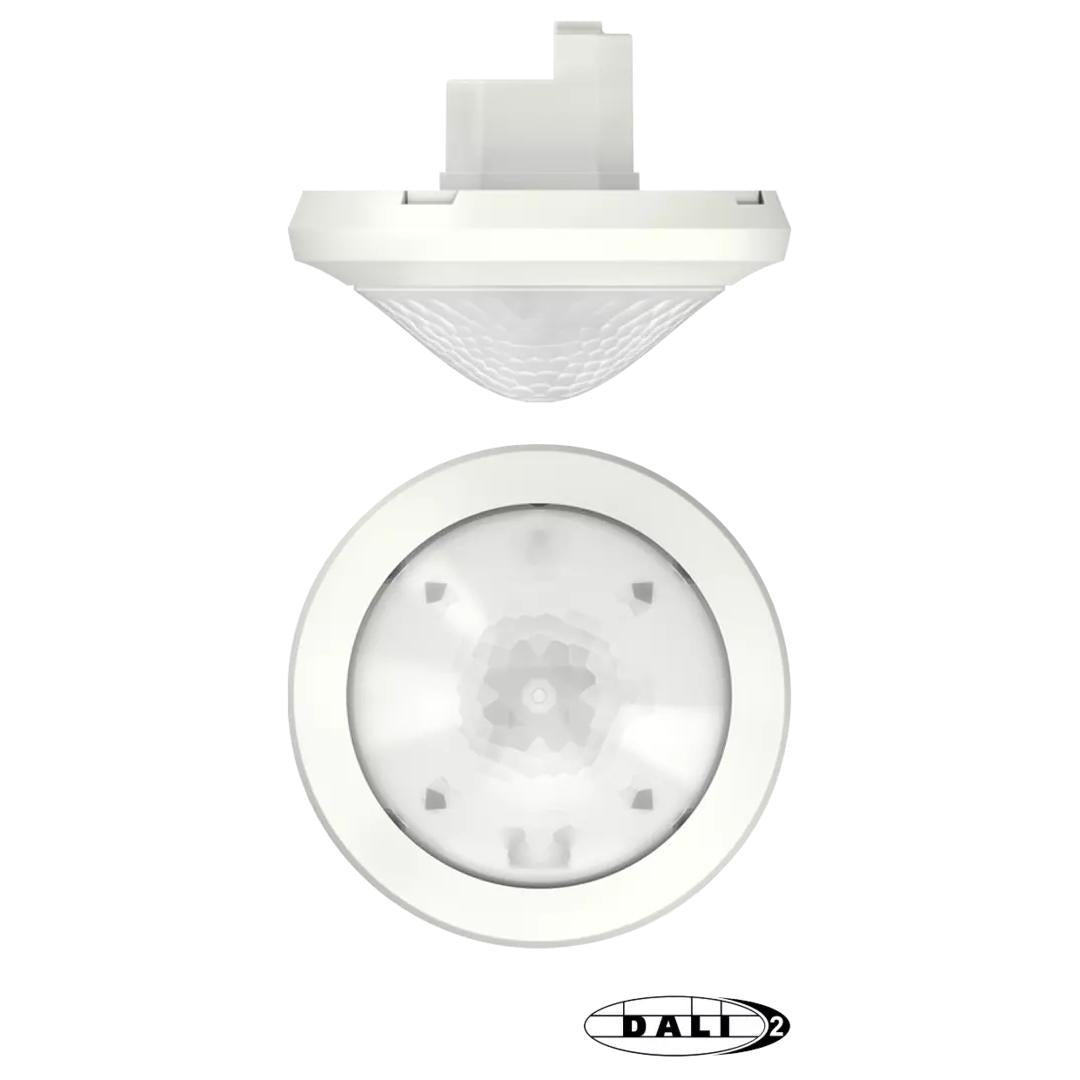

Theben theRonda S360 DALI-2 S UP WH Presence Detector (PIR) Presence Sensor Ceiling Installation Flush-Mounted Indoor DALI2-Certified

Description

Theben theRonda S360 DALI-2 S UP WH Presence Detector (PIR) Presence Sensor Ceiling Installation Flush-Mounted Indoor DALI2-Certified

Theben 2080590

  • DALI-2 certified presence and brightness sensor for professional building automation
  • Flush-mounted ceiling installation for discreet indoor integration
  • 360° detection with a coverage area of up to 50 m² (ø 8 m)
  • Single-channel mixed light measurement for precise brightness evaluation
  • Transmits presence and brightness values via DALI telegram in accordance with IEC 62386 Part 303/304
  • Adjustable sensitivity and test mode for simplified commissioning
  • Requires a Multi-Master Application Controller supporting the relevant standard components
  • Compact design with IP54 protection when fitted

Theben theRonda S360 DALI-2 S UP WH is a reliable flush-mounted presence detector designed for demanding lighting control applications. With DALI-2 certification, it delivers accurate presence and brightness data to a higher-level controller, supporting efficient, automated lighting management in commercial and institutional environments. Its wide 360° detection range, mixed light measurement, and easy commissioning features make it a practical solution for modern indoor installations.

.

Operating voltage DALI (9,5 - 22,5 V DC)
Installation type Ceiling installation
Mounting type Flush-mounted
Switching output Sensor DALI
Light measurement Mixed light measurement
Setting range brightness 10 - 10000 lx
Detection range 50 m² (ø 8 m)
Detection angle 360°
Type of protection IP 54 (when fitted)
Length 83 mm
Width 110 mm
Height 110 mm
Net weight 165 g

Read more

Theben theRonda S360 DALI-2 S UP WH Presence Detector (PIR) Presence Sensor Ceiling Installation Flush-Mounted Indoor DALI2-Certified

Product form

SKU: 2080590

Theben theRonda S360 DALI-2 S UP WH Presence Detector (PIR) Presence Sensor Ceiling Installation Flush-Mounted Indoor DALI2-Certified Theben 2080590 DALI-2... Read more

£135.41 ex VAT £162.49 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage DALI (9,5 - 22,5 V DC)
    Installation type Ceiling installation
    Mounting type Flush-mounted
    Switching output Sensor DALI
    Light measurement Mixed light measurement
    Setting range brightness 10 - 10000 lx
    Detection range 50 m² (ø 8 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Length 83 mm
    Width 110 mm
    Height 110 mm
    Net weight 165 g
