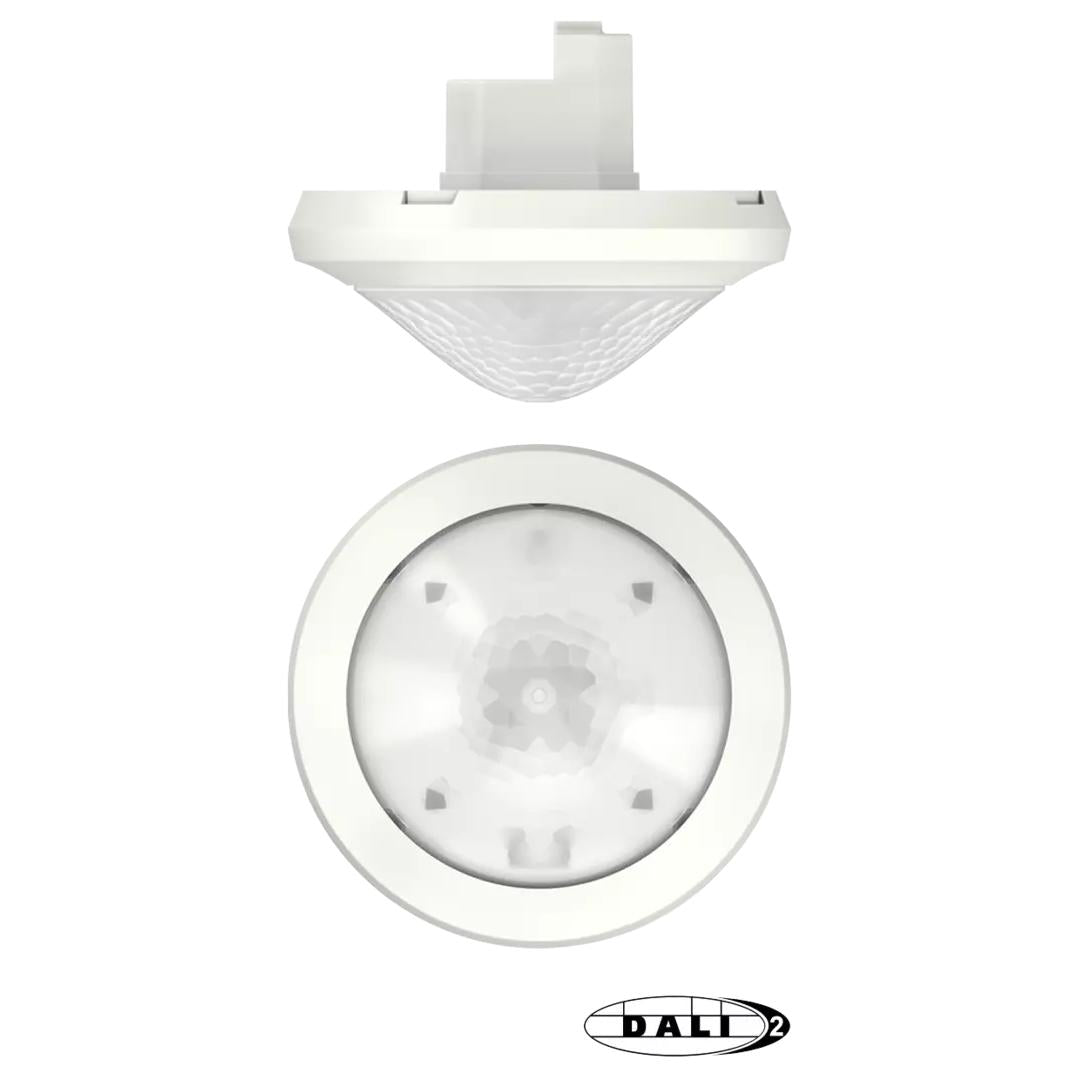

Theben theRonda S360-110 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor

Description

Theben theRonda S360-110 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor

Theben 2080580

  • DALI presence detector for flush-mounted ceiling installation
  • Acts as a DALI master and controls up to 50 DALI ballasts
  • 360° detection with circular coverage up to 8 m diameter
  • Switching output via DALI broadcast mode for one lighting channel
  • Integrated push button input for conventional push buttons
  • Suitable for switch operation or constant light control with standby function
  • Adaptive 1-channel light measurement and short-term presence function
  • Mixed light measurement for reliable brightness control
  • Flexible push button assignment via optional remote control
  • IP54 protection when fitted

This DALI presence detector is designed for efficient, flexible lighting control in professional indoor applications. Its flush-mounted ceiling design supports discreet installation, while the integrated DALI master functionality simplifies setup and group configuration. With mixed light measurement, adjustable brightness settings, and a configurable switch-off delay, it helps optimize both comfort and energy efficiency. The integrated push button input and optional remote control assignment provide added flexibility for a wide range of project requirements.

.

Operating voltage 110 - 230 V AC
Frequency 50 - 60 Hz
Installation type Ceiling installation, flush-mounted
Switching output DALI
Light measurement Mixed light measurement
Setting range brightness 10 - 3000 lx
Light switch-off delay 10 s - 60 min
Detection range 50 m² (ø 8 m)
Detection angle 360°
Type of protection IP 54 (when fitted)
Length 83 mm
Width 110 mm
Height 110 mm
Net weight 128 g

Read more

Theben theRonda S360-110 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor

Product form

SKU: 2080580

Theben theRonda S360-110 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor Theben 2080580 DALI presence detector for flush-mounted... Read more

£137.73 ex VAT £165.28 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 110 - 230 V AC
    Frequency 50 - 60 Hz
    Installation type Ceiling installation, flush-mounted
    Switching output DALI
    Light measurement Mixed light measurement
    Setting range brightness 10 - 3000 lx
    Light switch-off delay 10 s - 60 min
    Detection range 50 m² (ø 8 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Length 83 mm
    Width 110 mm
    Height 110 mm
    Net weight 128 g
