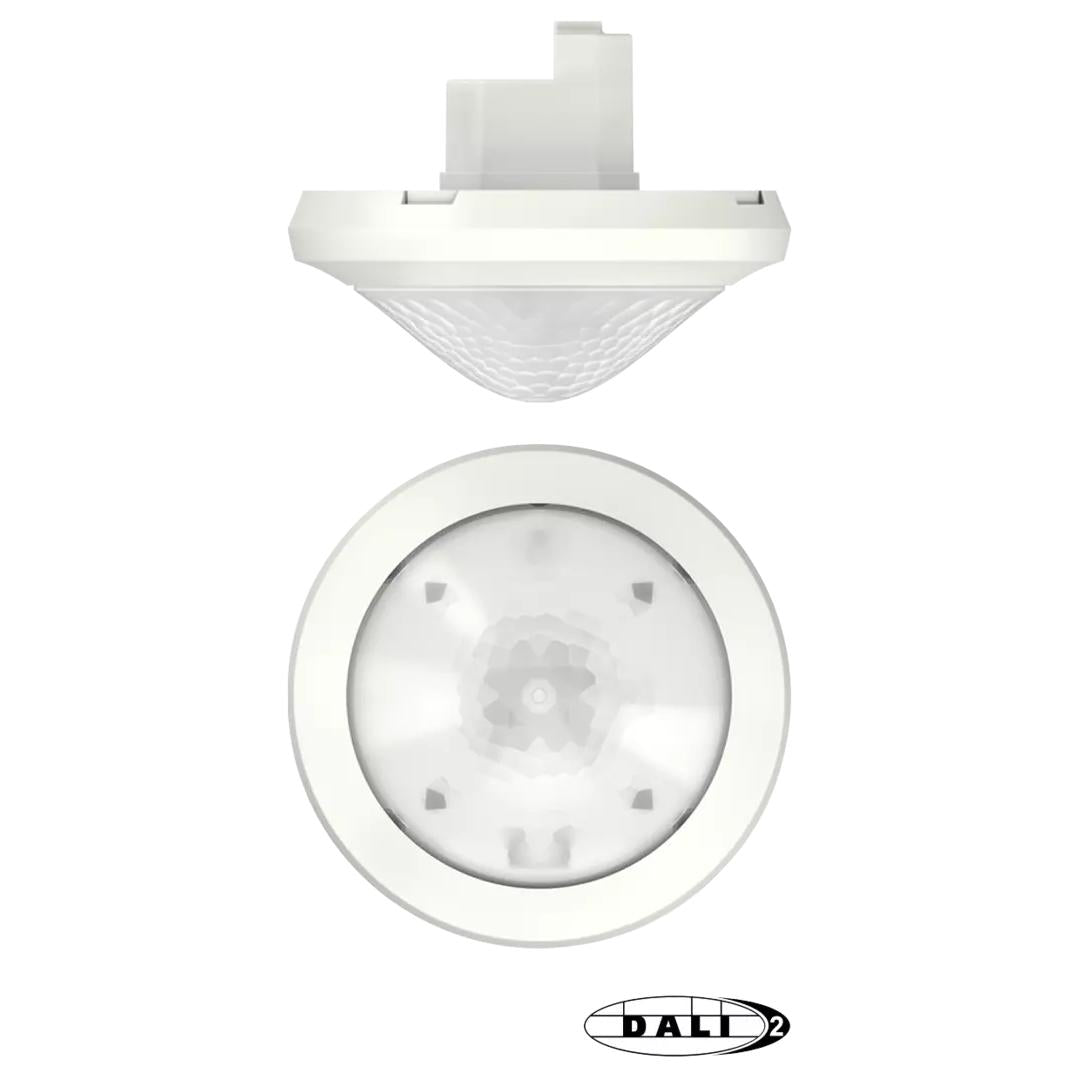

Theben theRonda P360-110 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor

Description

Theben theRonda P360-110 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor

Theben 2080040

  • DALI master presence detector for flush-mounted ceiling installation
  • Controls up to 50 DALI ballasts in broadcast mode
  • Large circular detection range up to 24 m diameter
  • 360° detection angle for comprehensive room coverage
  • Adaptive 1-channel light measurement with mixed light measurement
  • Supports switch mode or constant light control with standby function
  • Integrated push button input for conventional push buttons
  • Easy DALI group configuration for flexible commissioning
  • Short-term presence function for optimized energy efficiency
  • Suitable for indoor applications with IP54 protection when fitted

Designed for modern lighting control requirements, the Theben theRonda P360-110 DALI UP WH combines precise presence detection with intelligent DALI control. Its wide detection area, flexible operating modes, and integrated push button interface make it a practical solution for efficient, user-friendly lighting management in offices, meeting rooms, corridors, and other indoor environments.

.

Operating voltage 110 - 230 V AC
Frequency 50 - 60 Hz
Installation type Ceiling installation, flush-mounted
Switching output DALI
Light measurement Mixed light measurement
Setting range brightness 10 - 3000 lx
Light switch-off delay 10 s - 60 min
Detection range 452 m² (ø 24 m)
Detection angle 360°
Type of protection IP 54 (when fitted)
Length 83 mm
Width 110 mm
Height 110 mm
Net weight 135 g

Read more

Theben theRonda P360-110 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor

Product form

SKU: 2080040

Theben theRonda P360-110 DALI UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor Theben 2080040 DALI master presence detector for... Read more

£176.47 ex VAT £211.76 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 110 - 230 V AC
    Frequency 50 - 60 Hz
    Installation type Ceiling installation, flush-mounted
    Switching output DALI
    Light measurement Mixed light measurement
    Setting range brightness 10 - 3000 lx
    Light switch-off delay 10 s - 60 min
    Detection range 452 m² (ø 24 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Length 83 mm
    Width 110 mm
    Height 110 mm
    Net weight 135 g
      Downloads
    Datasheet unavailable for this product at the moment.
