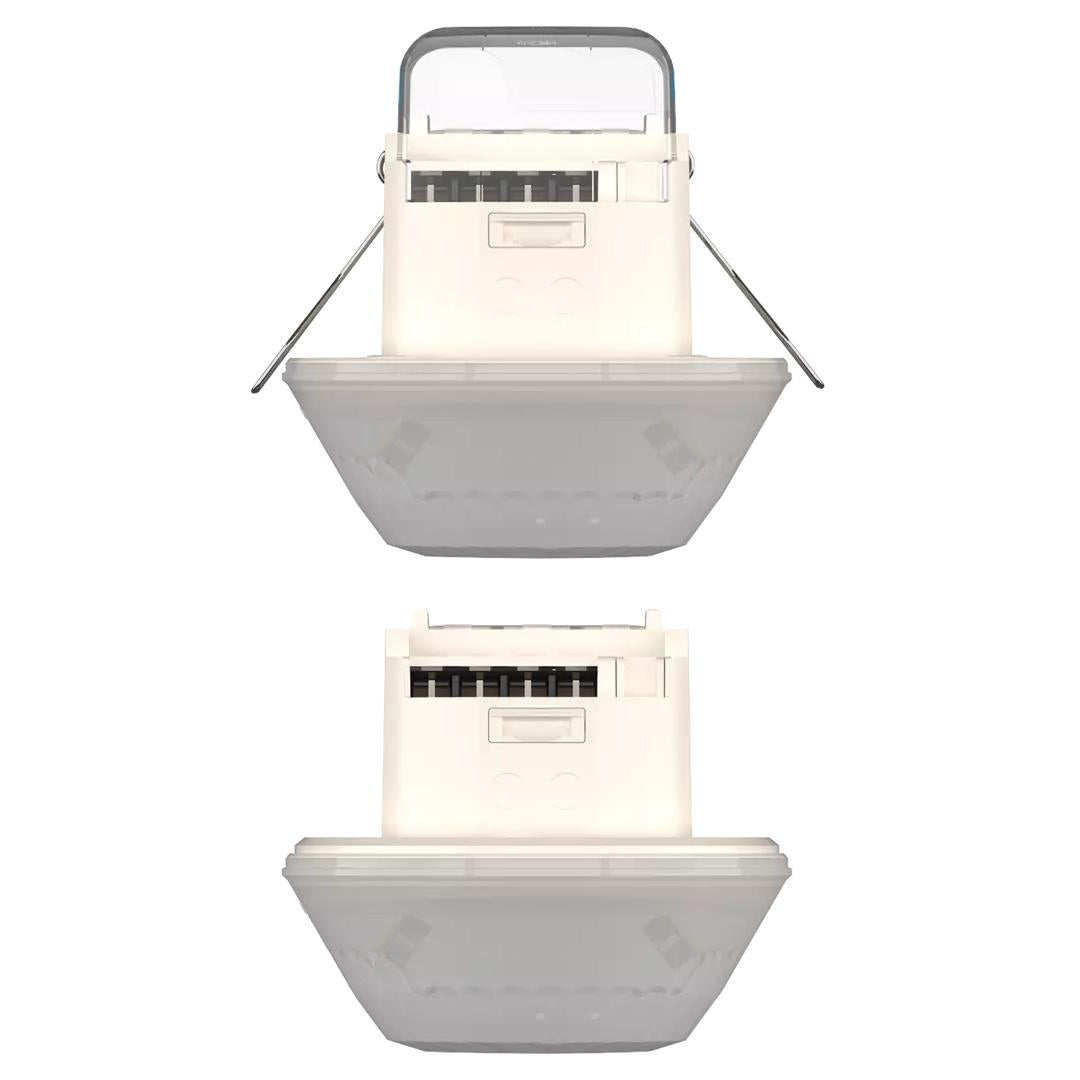

Theben LUXA 103 S360-100-28 DE-UP WH Presence Detector (PIR) Ceiling Installation White

Description

Theben LUXA 103 S360-100-28 DE-UP WH Presence Detector (PIR) Ceiling Installation White

Theben 1030072

  • Passive infrared presence detector for long and narrow areas such as corridors and hallways
  • Rectangular detection range of 28 x 5 m with 360° detection angle
  • Suitable for ceiling mounting and flush-mounted installation
  • Controls one lighting channel with mixed light measurement
  • Optimized for LED loads up to 400 W
  • Supports semi-automatic and fully automatic operation
  • IP54 protection when fitted, suitable for wet rooms and outdoor applications
  • Integrated push button input, teach-in function, staircase lighting function, and parallel connection capability
  • Low stand-by consumption of approx. 0.5 W

This passive infrared presence detector is designed for professional lighting control in corridors, hallways, and other long, narrow spaces. Engineered for ceiling installation, it delivers reliable motion detection across a rectangular area of 28 x 5 meters at a mounting height of 3 meters. The device provides flexible operating modes, remote control compatibility, and enhanced installation options for demanding building environments. With IP54 protection when fitted and support for LED loads up to 400 W, it offers a robust and efficient solution for modern lighting management.

.

Frequency 50 Hz
Installation type Ceiling mounting, flush-mounted
Switching output Light
Light measurement Mixed light measurement
Light switch-off delay 15 s - 30 min
Detection range 140 m² (28 x 5 m)
Detection angle 360°
Type of protection IP 54 (when fitted)
Stand-by consumption ca. 0.5 W
Dimensions (L x W x H) 94 x 94 x 41 mm
Net weight 88 g

Read more

Theben LUXA 103 S360-100-28 DE-UP WH Presence Detector (PIR) Ceiling Installation White

Product form

SKU: 1030072

Theben LUXA 103 S360-100-28 DE-UP WH Presence Detector (PIR) Ceiling Installation White Theben 1030072 Passive infrared presence detector for long... Read more

£105.94 ex VAT £127.13 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Frequency 50 Hz
    Installation type Ceiling mounting, flush-mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 15 s - 30 min
    Detection range 140 m² (28 x 5 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Stand-by consumption ca. 0.5 W
    Dimensions (L x W x H) 94 x 94 x 41 mm
    Net weight 88 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben LUXA 103 S360-100-28 DE-UP WH Presence Detector (PIR) Ceiling Installation White

    Theben 1030072

    • Passive infrared presence detector for long and narrow areas such as corridors and hallways
    • Rectangular detection range of 28 x 5 m with 360° detection angle
    • Suitable for ceiling mounting and flush-mounted installation
    • Controls one lighting channel with mixed light measurement
    • Optimized for LED loads up to 400 W
    • Supports semi-automatic and fully automatic operation
    • IP54 protection when fitted, suitable for wet rooms and outdoor applications
    • Integrated push button input, teach-in function, staircase lighting function, and parallel connection capability
    • Low stand-by consumption of approx. 0.5 W

    This passive infrared presence detector is designed for professional lighting control in corridors, hallways, and other long, narrow spaces. Engineered for ceiling installation, it delivers reliable motion detection across a rectangular area of 28 x 5 meters at a mounting height of 3 meters. The device provides flexible operating modes, remote control compatibility, and enhanced installation options for demanding building environments. With IP54 protection when fitted and support for LED loads up to 400 W, it offers a robust and efficient solution for modern lighting management.

    .

    Frequency 50 Hz
    Installation type Ceiling mounting, flush-mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 15 s - 30 min
    Detection range 140 m² (28 x 5 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Stand-by consumption ca. 0.5 W
    Dimensions (L x W x H) 94 x 94 x 41 mm
    Net weight 88 g
