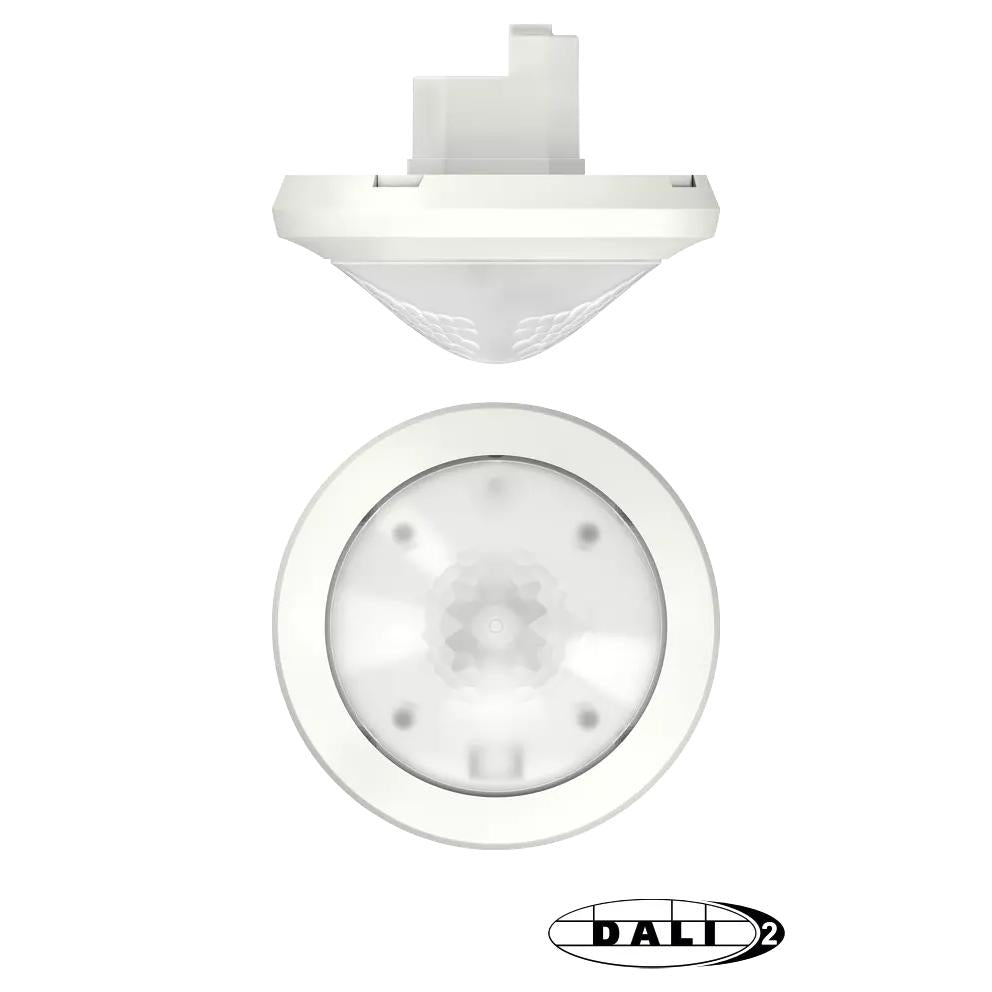

Theben thePassa P360 DALI-2 S UP WH Corridor Presence Sensor Flush-Mounted Ceiling Installation White

Description

Theben thePassa P360 DALI-2 S UP WH Corridor Presence Sensor Flush-Mounted Ceiling Installation White

Theben 2010390

  • DALI-2 certified presence and brightness sensor for flush-mounted ceiling installation
  • Rectangular detection area up to 30 x 5 m with two separately evaluated zones
  • Reliable mixed light measurement for precise lighting control
  • Adjustable detection sensitivity with integrated test mode for commissioning and verification
  • Suitable for demanding corridor applications and compatible DALI-2 controllers according to IEC 62386

Designed for professional lighting management, this DALI-2 sensor delivers accurate presence and brightness data to a Multi-Master Application Controller. Its two-zone rectangular detection field enables differentiated control strategies, making it particularly effective in long corridors and similar building areas. With a wide detection angle, adjustable sensitivity, and a practical test mode, the device supports efficient planning, commissioning, and operation in modern lighting installations.

.

Operating voltage DALI (9.5 - 22.5 V DC)
Installation type Ceiling installation, flush-mounted
Switching output Sensor DALI
Light measurement Mixed light measurement
Setting range brightness 10 - 10000 lx
Detection range 150 m² (30 x 5 m)
Detection angle 360°
Type of protection IP 54 (when fitted)
Length 83 mm
Width 110 mm
Height 110 mm
Net weight 117 g

Read more

Theben thePassa P360 DALI-2 S UP WH Corridor Presence Sensor Flush-Mounted Ceiling Installation White

Product form

SKU: 2010390

Theben thePassa P360 DALI-2 S UP WH Corridor Presence Sensor Flush-Mounted Ceiling Installation White Theben 2010390 DALI-2 certified presence and... Read more

£154.35 ex VAT £185.22 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage DALI (9.5 - 22.5 V DC)
    Installation type Ceiling installation, flush-mounted
    Switching output Sensor DALI
    Light measurement Mixed light measurement
    Setting range brightness 10 - 10000 lx
    Detection range 150 m² (30 x 5 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Length 83 mm
    Width 110 mm
    Height 110 mm
    Net weight 117 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben thePassa P360 DALI-2 S UP WH Corridor Presence Sensor Flush-Mounted Ceiling Installation White

    Theben 2010390

    • DALI-2 certified presence and brightness sensor for flush-mounted ceiling installation
    • Rectangular detection area up to 30 x 5 m with two separately evaluated zones
    • Reliable mixed light measurement for precise lighting control
    • Adjustable detection sensitivity with integrated test mode for commissioning and verification
    • Suitable for demanding corridor applications and compatible DALI-2 controllers according to IEC 62386

    Designed for professional lighting management, this DALI-2 sensor delivers accurate presence and brightness data to a Multi-Master Application Controller. Its two-zone rectangular detection field enables differentiated control strategies, making it particularly effective in long corridors and similar building areas. With a wide detection angle, adjustable sensitivity, and a practical test mode, the device supports efficient planning, commissioning, and operation in modern lighting installations.

    .

    Operating voltage DALI (9.5 - 22.5 V DC)
    Installation type Ceiling installation, flush-mounted
    Switching output Sensor DALI
    Light measurement Mixed light measurement
    Setting range brightness 10 - 10000 lx
    Detection range 150 m² (30 x 5 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Length 83 mm
    Width 110 mm
    Height 110 mm
    Net weight 117 g
