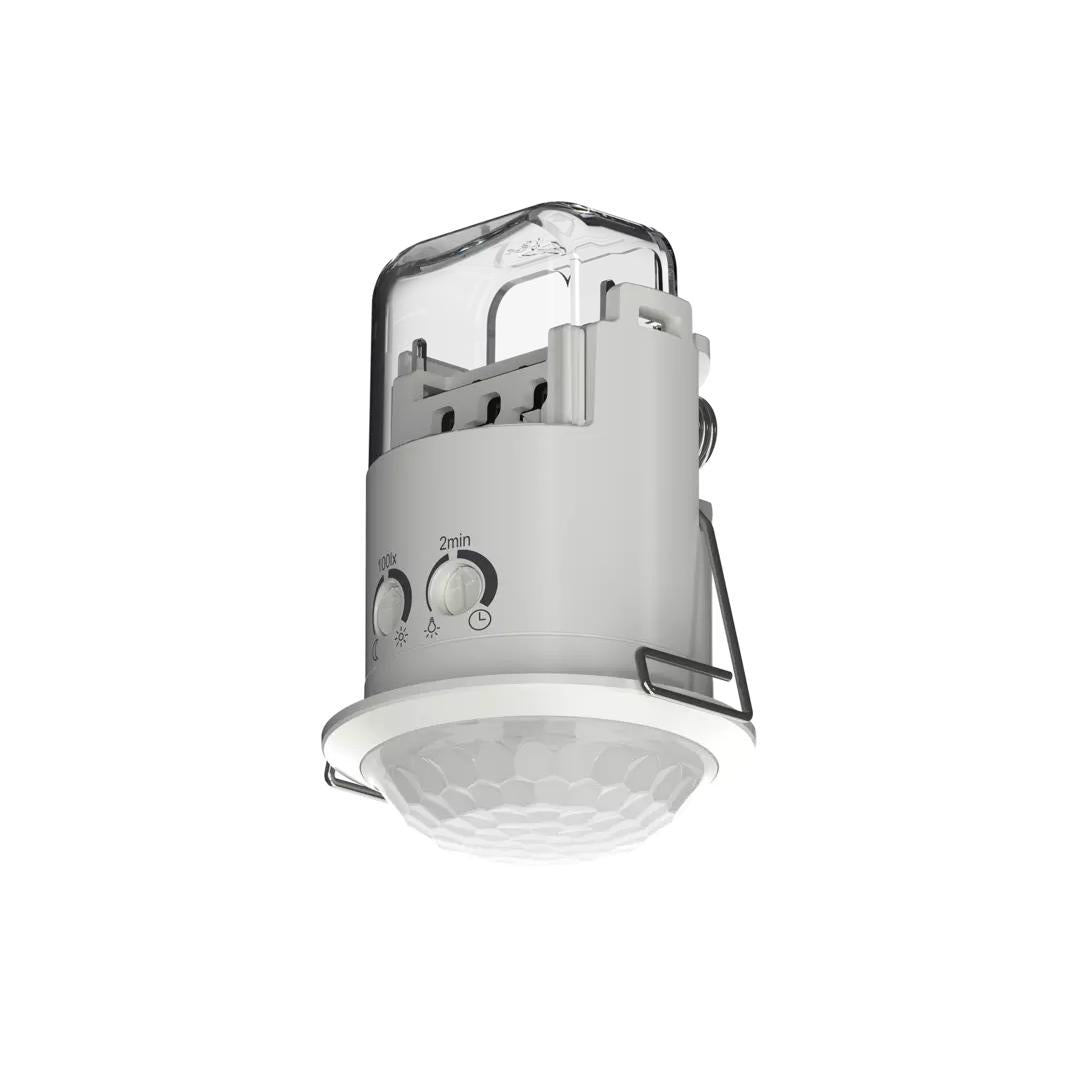

Theben PIRA T6 Mini Motion Detector DE Ceiling Mounting

Description

Theben PIRA T6 Mini Motion Detector DE Ceiling Mounting

Theben 1030202

  • Compact motion detector for ceiling mounting in smaller indoor areas
  • 360° detection range with coverage of up to 28 m² (ø 6 m)
  • Optimized for an installation height of 2.5 m
  • Controls one lighting channel via 230 V relay output
  • Mixed light measurement with adjustable brightness range from 5 to 1000 lx
  • Adjustable switch-off delay from 5 s to 15 min
  • Factory preset for fast commissioning: 100 lx and 2 min
  • Suitable for offices, utility rooms, and other compact indoor applications

This particularly compact motion detector is designed for reliable, fully automatic lighting control in smaller indoor spaces. With ceiling mounting, mixed light measurement, and a 360° detection area, it offers efficient occupancy-based switching for everyday use. The adjustable brightness threshold and time delay support flexible configuration, while the factory preset enables immediate installation and operation. Its space-saving design makes it an excellent choice for offices, storage areas, and utility rooms where dependable automation is required.

.

Operating voltage 230 V AC
Frequency 50 Hz
Installation type Ceiling mounting
Switching output Light
Light measurement Mixed light measurement
Setting range brightness 5 - 1000 lx
Light switch-off delay 5 s - 15 min
Detection range 28 m² (ø 6 m)
Detection angle 360°
Type of protection IP 21
Length 50 mm
Width 50 mm
Height 75 mm
Net weight 50 g

Read more

Theben PIRA T6 Mini Motion Detector DE Ceiling Mounting

Product form

SKU: 1030202

Theben PIRA T6 Mini Motion Detector DE Ceiling Mounting Theben 1030202 Compact motion detector for ceiling mounting in smaller indoor... Read more

£91.27 ex VAT £109.52 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type Ceiling mounting
    Switching output Light
    Light measurement Mixed light measurement
    Setting range brightness 5 - 1000 lx
    Light switch-off delay 5 s - 15 min
    Detection range 28 m² (ø 6 m)
    Detection angle 360°
    Type of protection IP 21
    Length 50 mm
    Width 50 mm
    Height 75 mm
    Net weight 50 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben PIRA T6 Mini Motion Detector DE Ceiling Mounting

    Theben 1030202

    • Compact motion detector for ceiling mounting in smaller indoor areas
    • 360° detection range with coverage of up to 28 m² (ø 6 m)
    • Optimized for an installation height of 2.5 m
    • Controls one lighting channel via 230 V relay output
    • Mixed light measurement with adjustable brightness range from 5 to 1000 lx
    • Adjustable switch-off delay from 5 s to 15 min
    • Factory preset for fast commissioning: 100 lx and 2 min
    • Suitable for offices, utility rooms, and other compact indoor applications

    This particularly compact motion detector is designed for reliable, fully automatic lighting control in smaller indoor spaces. With ceiling mounting, mixed light measurement, and a 360° detection area, it offers efficient occupancy-based switching for everyday use. The adjustable brightness threshold and time delay support flexible configuration, while the factory preset enables immediate installation and operation. Its space-saving design makes it an excellent choice for offices, storage areas, and utility rooms where dependable automation is required.

    .

    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type Ceiling mounting
    Switching output Light
    Light measurement Mixed light measurement
    Setting range brightness 5 - 1000 lx
    Light switch-off delay 5 s - 15 min
    Detection range 28 m² (ø 6 m)
    Detection angle 360°
    Type of protection IP 21
    Length 50 mm
    Width 50 mm
    Height 75 mm
    Net weight 50 g

    Read more
