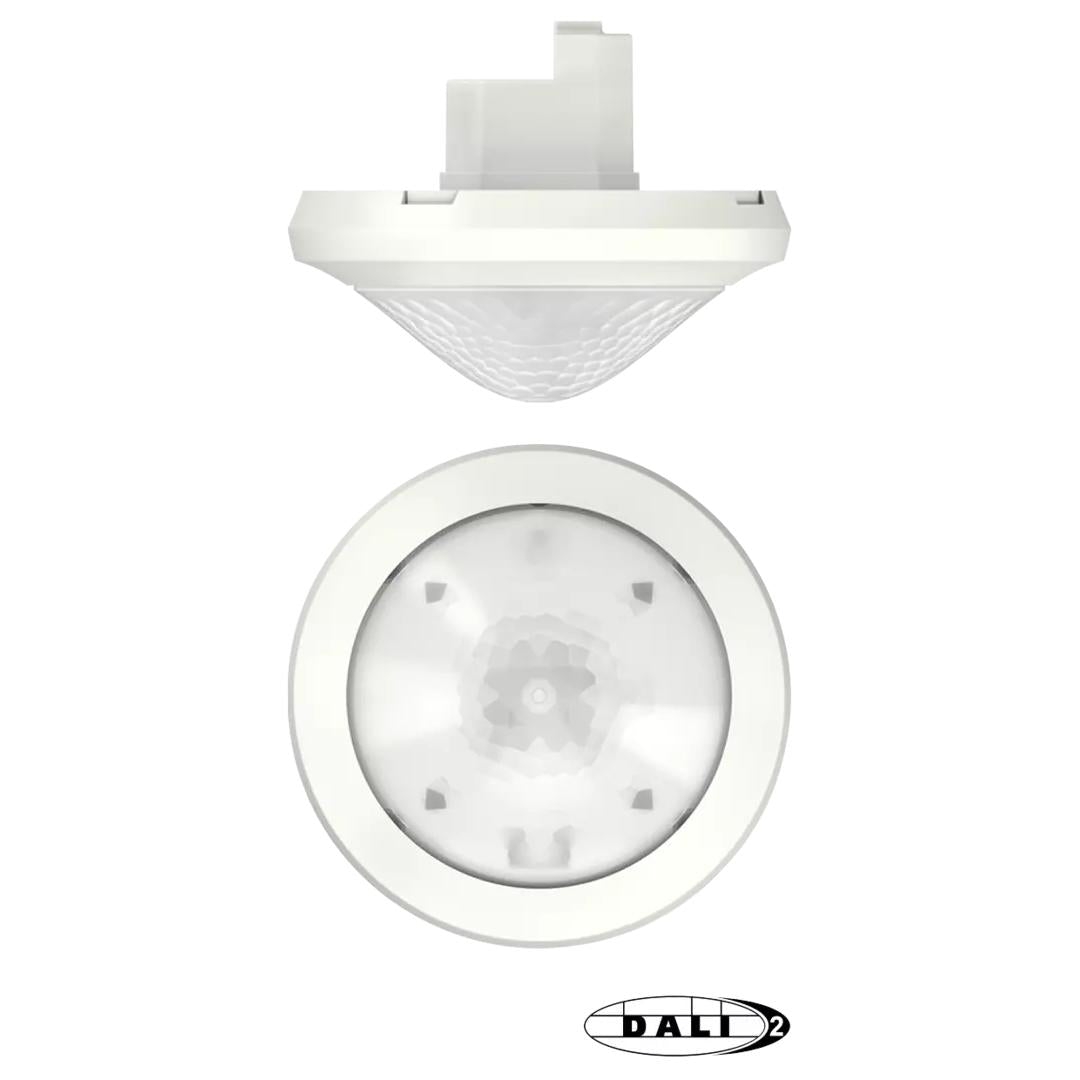

Theben theRonda P360 DALI-2 S UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor DALI-2 Certified

Description

Theben theRonda P360 DALI-2 S UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor DALI-2 Certified

Theben 2080090

  • DALI-2 certified presence and brightness sensor for flush-mounted ceiling installation
  • 360° circular detection range with coverage of up to 452 m² (ø 24 m)
  • Triple mixed light measurement with four brightness instances and one presence instance
  • DALI telegram transmission according to IEC 62386 Part 303/304
  • Adjustable sensitivity and test mode for efficient commissioning
  • Suitable for indoor use with IP 54 protection when fitted
  • Requires a Multi-Master Application Controller for configuration

Designed for professional lighting control applications, this DALI-2 certified presence detector delivers reliable occupancy and brightness data to higher-level control systems. Its flush-mounted ceiling design supports discreet integration, while the wide 360° detection area ensures dependable coverage for offices, meeting rooms, corridors, and other indoor environments. Advanced mixed light measurement and configurable sensitivity contribute to precise operation and straightforward commissioning.

.


Operating voltage DALI (9,5 - 22,5 V DC)
Installation type Ceiling installation, flush-mounted
Switching output Sensor DALI
Light measurement Mixed light measurement
Setting range brightness 10 - 10000 lx
Detection range 452 m² (ø 24 m)
Detection angle 360°
Type of protection IP 54 (when fitted)
Length 83 mm
Width 110 mm
Height 110 mm
Net weight 117 g

Read more

Theben theRonda P360 DALI-2 S UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor DALI-2 Certified

Product form

SKU: 2080090

Theben theRonda P360 DALI-2 S UP WH Presence Detector (PIR) Ceiling Installation Flush-Mounted Indoor DALI-2 Certified Theben 2080090 DALI-2 certified... Read more

£196.52 ex VAT £235.82 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage DALI (9,5 - 22,5 V DC)
    Installation type Ceiling installation, flush-mounted
    Switching output Sensor DALI
    Light measurement Mixed light measurement
    Setting range brightness 10 - 10000 lx
    Detection range 452 m² (ø 24 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Length 83 mm
    Width 110 mm
    Height 110 mm
    Net weight 117 g
