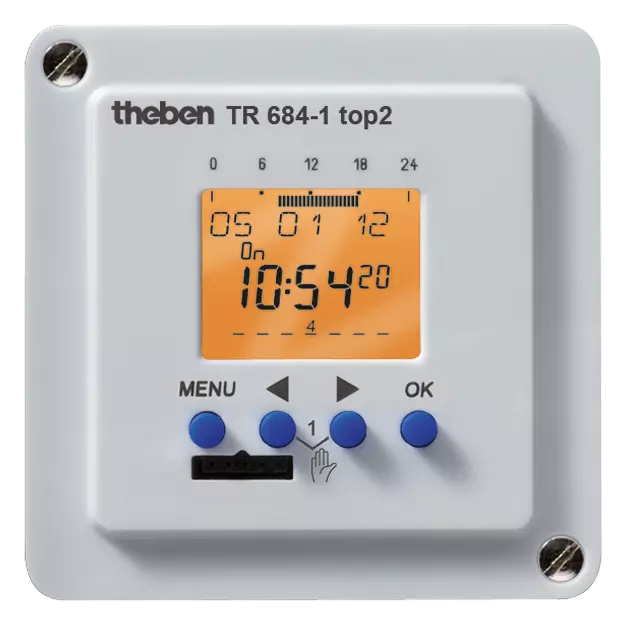

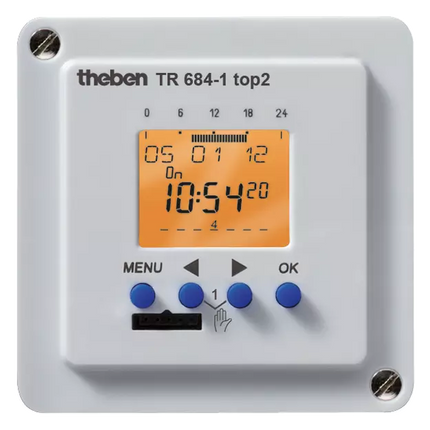

Theben Tr 684-1 Top2 4-Channel Series-Mounted Annual Time Switch Expandable And Rc-Compatible

Description

Theben Tr 684-1 Top2 4-Channel Series-Mounted Annual Time Switch Expandable And Rc-Compatible

Theben 6840100

  • Digital timer module for recessed mounting in OEM series-production devices
  • Yearly and astronomical program functionality for flexible scheduling
  • ON-OFF, pulse, and cycle program functions
  • Phase-independent switching output for versatile integration
  • 1-channel changeover relay with switching capacity up to 16 A at 250 V AC (cos ? = 1)
  • Operating voltage range of 110–240 V AC, 50–60 Hz
  • Integrated power reserve and automatic daylight saving time adjustment
  • OBELISK top2 interface for easy program backup and transfer

This Theben digital timer module is engineered for reliable time-based control in demanding OEM applications. Its compact recessed-mount design supports efficient integration into production devices, while the yearly and astronomical programming options provide precise, adaptable switching for a wide range of operating requirements. With maintenance-free operation, integrated power reserve, and simple program transfer capability, it delivers a dependable solution for professional automation environments.

.

Operating voltage 110 - 240 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~1.3 W
Protection class II according to EN 60 730-1
Type of protection IP 20

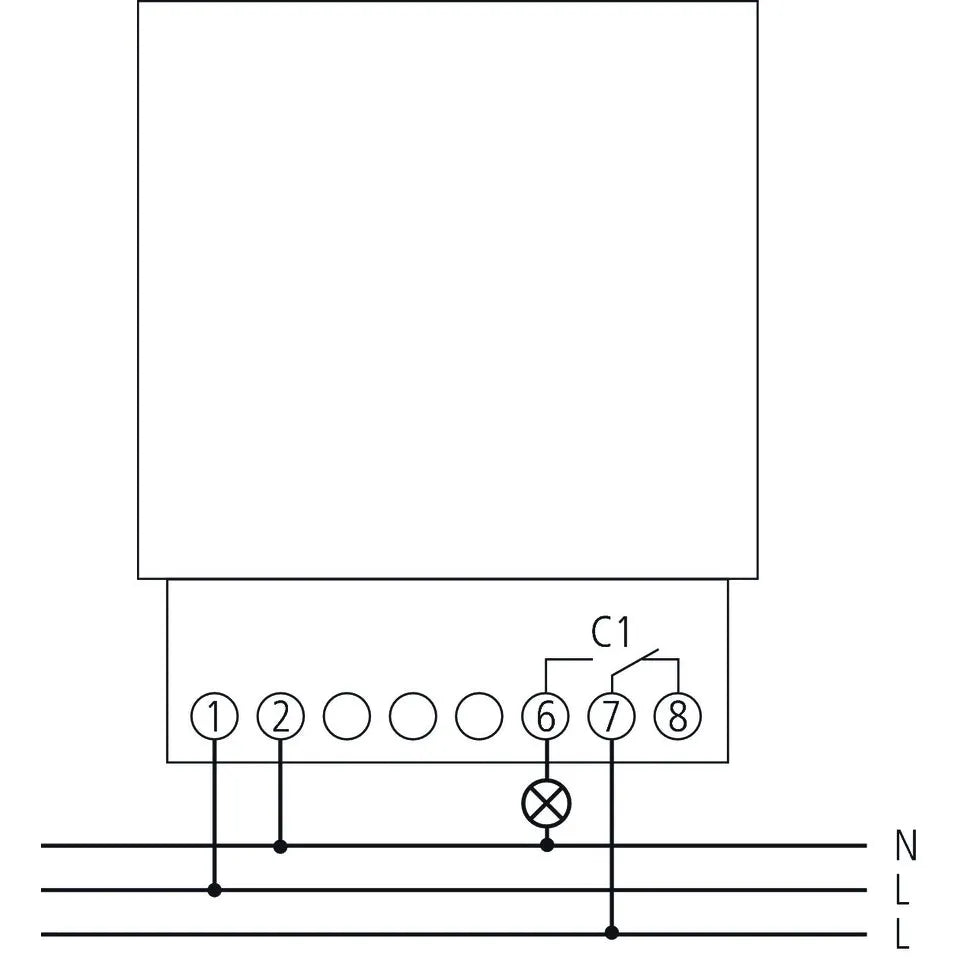

Switching output Phase-independent
Program Yearly program; Astronomical program
Program functions ON-OFF; Pulse; Cycle
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 10 A
Shortest switching times 1 s
Time accuracy at 25 °C ? ± 0,5 s/day (quartz) or DCF77/GNSS

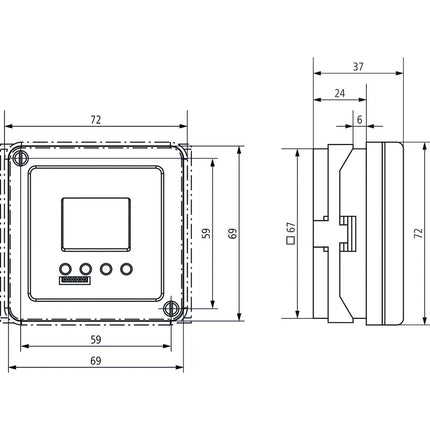

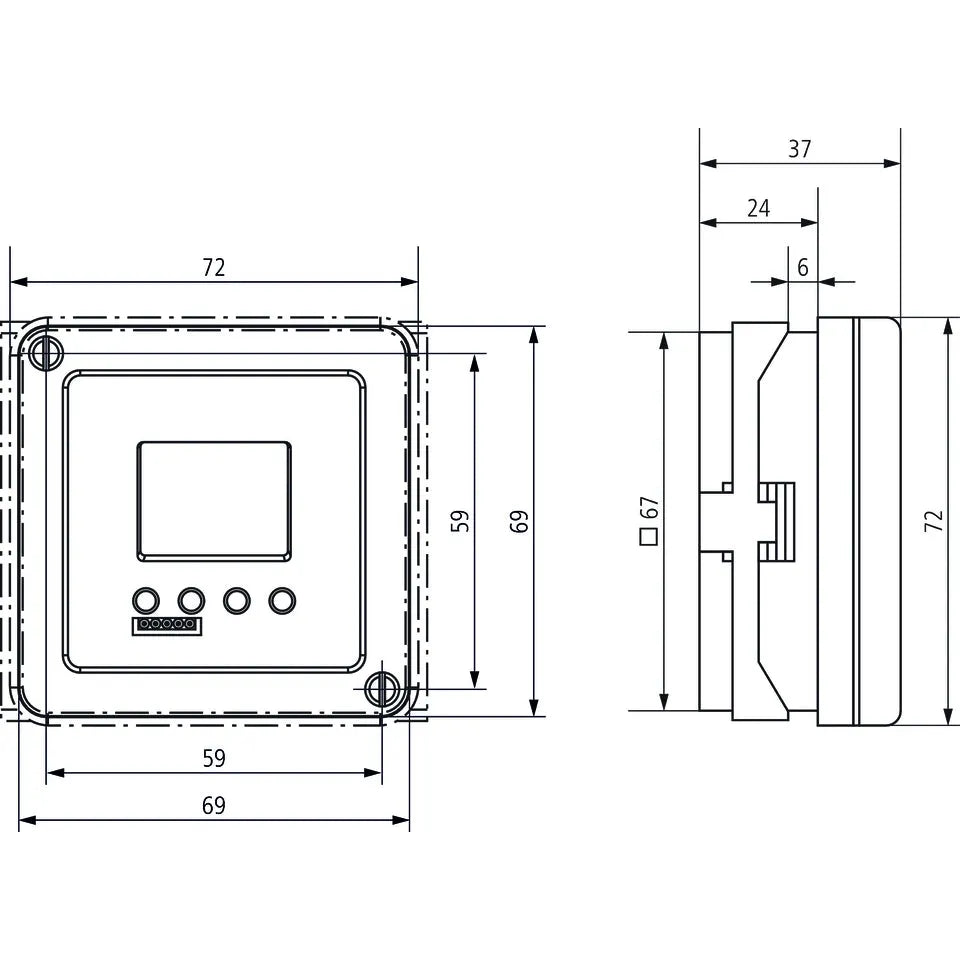

Length 37 mm
Width 72 mm
Height 69 mm
Net weight 112 g

Read more

Theben Tr 684-1 Top2 4-Channel Series-Mounted Annual Time Switch Expandable And Rc-Compatible

Product form

SKU: 6840100

Theben Tr 684-1 Top2 4-Channel Series-Mounted Annual Time Switch Expandable And Rc-Compatible Theben 6840100 Digital timer module for recessed mounting... Read more

£123.45 ex VAT £148.14 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 110 - 240 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~1.3 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Yearly program; Astronomical program
    Program functions ON-OFF; Pulse; Cycle
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 10 A
    Shortest switching times 1 s
    Time accuracy at 25 °C ? ± 0,5 s/day (quartz) or DCF77/GNSS
    Length 37 mm
    Width 72 mm
    Height 69 mm
    Net weight 112 g
      Downloads

    Description

    Theben Tr 684-1 Top2 4-Channel Series-Mounted Annual Time Switch Expandable And Rc-Compatible

    Theben 6840100

    • Digital timer module for recessed mounting in OEM series-production devices
    • Yearly and astronomical program functionality for flexible scheduling
    • ON-OFF, pulse, and cycle program functions
    • Phase-independent switching output for versatile integration
    • 1-channel changeover relay with switching capacity up to 16 A at 250 V AC (cos ? = 1)
    • Operating voltage range of 110–240 V AC, 50–60 Hz
    • Integrated power reserve and automatic daylight saving time adjustment
    • OBELISK top2 interface for easy program backup and transfer

    This Theben digital timer module is engineered for reliable time-based control in demanding OEM applications. Its compact recessed-mount design supports efficient integration into production devices, while the yearly and astronomical programming options provide precise, adaptable switching for a wide range of operating requirements. With maintenance-free operation, integrated power reserve, and simple program transfer capability, it delivers a dependable solution for professional automation environments.

    .

    Operating voltage 110 - 240 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~1.3 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Yearly program; Astronomical program
    Program functions ON-OFF; Pulse; Cycle
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 10 A
    Shortest switching times 1 s
    Time accuracy at 25 °C ? ± 0,5 s/day (quartz) or DCF77/GNSS
    Length 37 mm
    Width 72 mm
    Height 69 mm
    Net weight 112 g

    Read more
