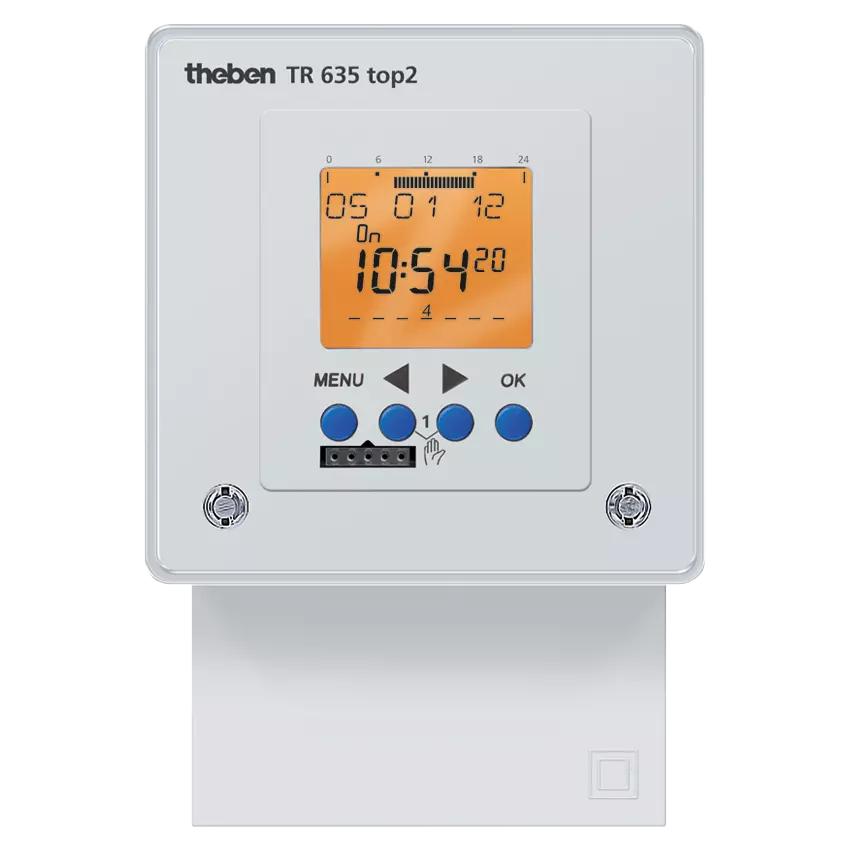

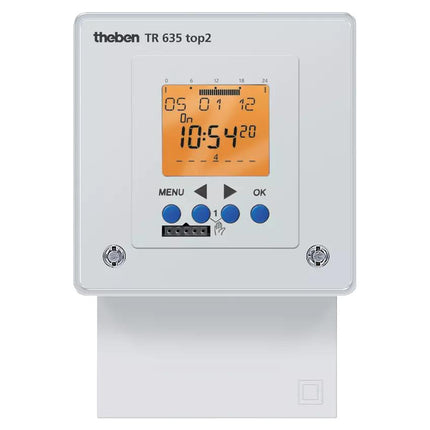

Theben Tr 635 Top2 1 Channel Weekly Program Flush-Mounted Digital Time Switch

Description

Theben Tr 635 Top2 1 Channel Weekly Program Flush-Mounted Digital Time Switch

Theben 6350100

  • 1-channel digital time switch for front panel and wall installation
  • Suitable for lighting, HVAC, and building management applications
  • Weekly program with ON/OFF, pulse, and cycle functions
  • Phase-independent switching output for flexible integration
  • Rechargeable lithium battery with power reserve up to 10 years
  • Operable without mains connection for convenient pre-wiring setup
  • Text-guided LCD display for simple and intuitive programming
  • OBELISK top2 memory card interface for fast program transfer
  • 84 memory slots for customized scheduling
  • Automatic summer/winter time changeover

Theben TR 635 top2 is a professional-grade digital time switch designed to deliver precise, flexible, and reliable time control across a wide range of building applications. Its compact design and flush-mounted suitability support efficient installation, while the user-friendly programming interface helps reduce setup time and simplify daily operation. With advanced scheduling options, memory expansion via OBELISK top2, and a long-lasting power reserve, this unit offers dependable performance for modern automation requirements.

.

Operating voltage 12 - 24 V UC
Frequency 50 - 60 Hz
Stand-by consumption ~0.3 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Switching output Phase-independent
Program Weekly program
Program functions ON-OFF, Pulse, Cycle
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 2 A
Shortest switching times 1 s
Time accuracy at 25 °C typical ± 0,25 s/day (quartz)

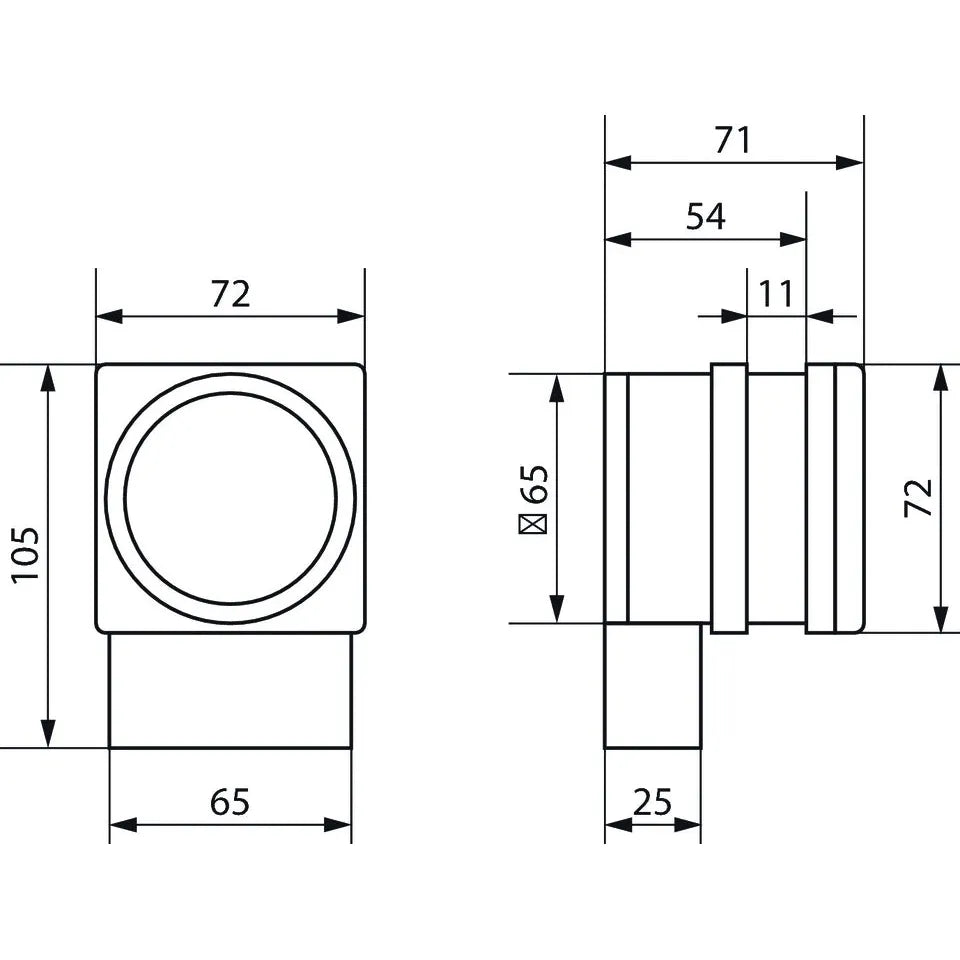

Length 71 mm
Width 72 mm
Height 105 mm
Net weight 202 g

Read more

Theben Tr 635 Top2 1 Channel Weekly Program Flush-Mounted Digital Time Switch

Product form

SKU: 6350100

Theben Tr 635 Top2 1 Channel Weekly Program Flush-Mounted Digital Time Switch Theben 6350100 1-channel digital time switch for front... Read more

£158.68 ex VAT £190.42 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 12 - 24 V UC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.3 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program
    Program functions ON-OFF, Pulse, Cycle
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 2 A
    Shortest switching times 1 s
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 71 mm
    Width 72 mm
    Height 105 mm
    Net weight 202 g
      Downloads

    Description

    Theben Tr 635 Top2 1 Channel Weekly Program Flush-Mounted Digital Time Switch

    Theben 6350100

    • 1-channel digital time switch for front panel and wall installation
    • Suitable for lighting, HVAC, and building management applications
    • Weekly program with ON/OFF, pulse, and cycle functions
    • Phase-independent switching output for flexible integration
    • Rechargeable lithium battery with power reserve up to 10 years
    • Operable without mains connection for convenient pre-wiring setup
    • Text-guided LCD display for simple and intuitive programming
    • OBELISK top2 memory card interface for fast program transfer
    • 84 memory slots for customized scheduling
    • Automatic summer/winter time changeover

    Theben TR 635 top2 is a professional-grade digital time switch designed to deliver precise, flexible, and reliable time control across a wide range of building applications. Its compact design and flush-mounted suitability support efficient installation, while the user-friendly programming interface helps reduce setup time and simplify daily operation. With advanced scheduling options, memory expansion via OBELISK top2, and a long-lasting power reserve, this unit offers dependable performance for modern automation requirements.

    .

    Operating voltage 12 - 24 V UC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.3 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program
    Program functions ON-OFF, Pulse, Cycle
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 2 A
    Shortest switching times 1 s
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 71 mm
    Width 72 mm
    Height 105 mm
    Net weight 202 g
