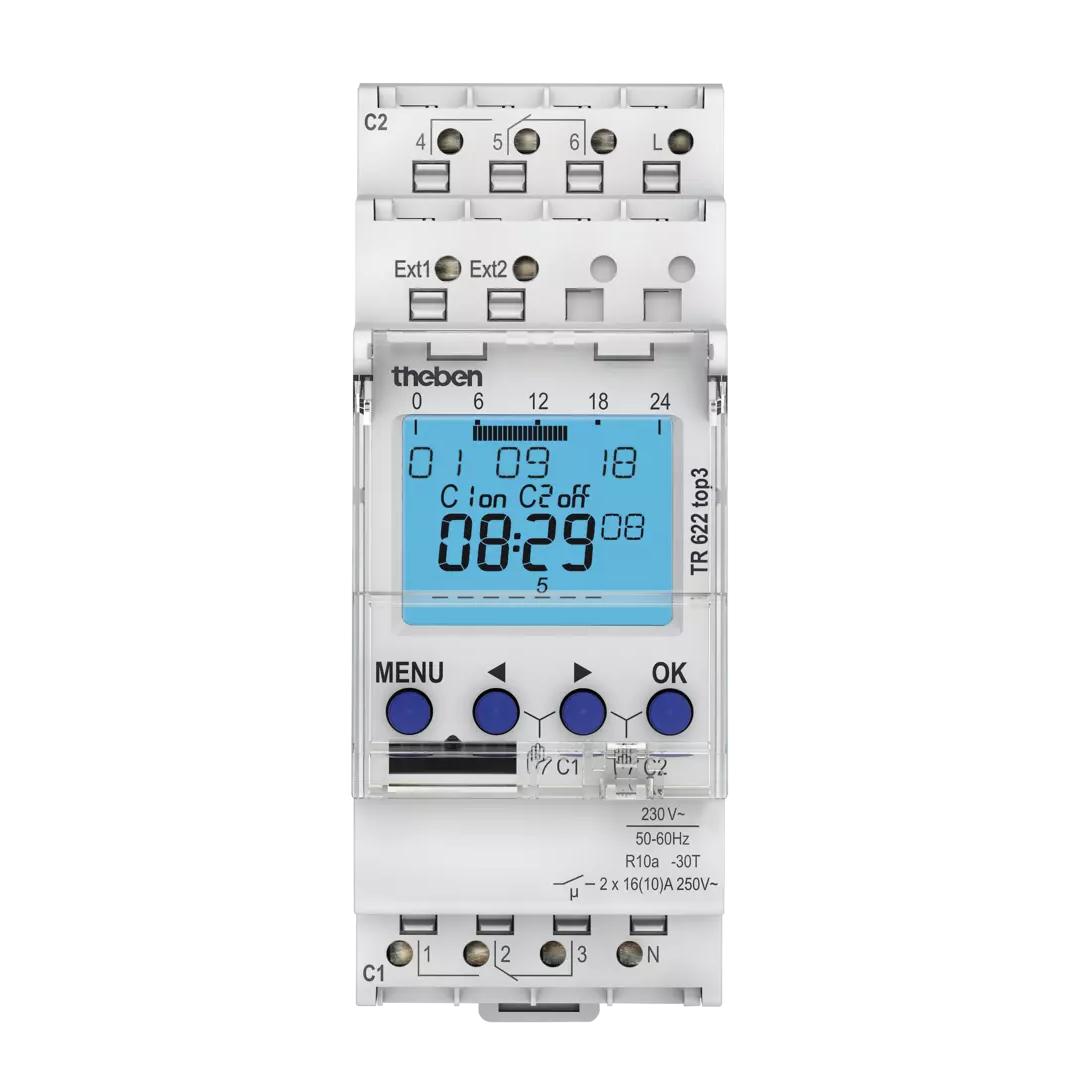

Theben Tr 622 Top3 Digital Time Switch 2 Channels Reg/Din Rail/Top-Hat Rail

Description

Theben Tr 622 Top3 Digital Time Switch 2 Channels Reg/Din Rail/Top-Hat Rail

Theben 6220130

  • Digital 2-channel time switch for DIN rail installation
  • Weekly program with ON/OFF functions
  • Two external inputs and three special programs for flexible operation
  • Channel switching and channel lock for enhanced control
  • High LED switching capacity of up to 600 W per channel
  • Programming via app with optional Bluetooth OBELISK top3
  • Low standby consumption of approximately 0.4 W
  • DUOFix plug-in terminals and integrated power reserve

Designed for professional time-based control applications, this digital 2-channel time switch combines precision, flexibility, and energy efficiency in a compact DIN rail format. The weekly program and versatile special functions support reliable switching in a wide range of electrical installations, while the optional Bluetooth OBELISK top3 enables convenient app-based programming with strong tamper protection. With its robust performance, clear operating logic, and suitability for modern lighting systems, it is an efficient solution for demanding commercial and technical environments.

.

Operating voltage 230 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~0.4 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Switching output Phase-independent
Program Weekly program
Program functions ON-OFF
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 10 A
Shortest switching times 1 min
Time accuracy at 25 °C typical ± 0,25 s/day (quartz)

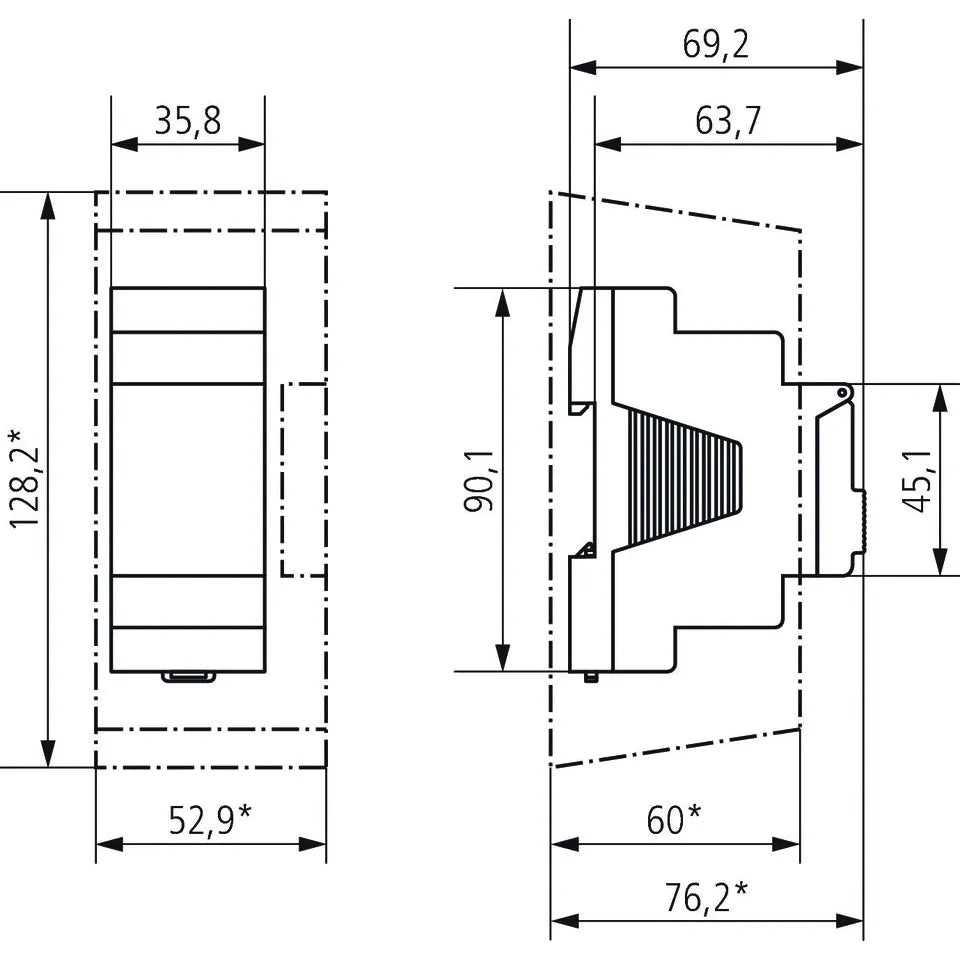

Length 69 mm
Width 35 mm
Height 90 mm
Net weight 134 g

Read more

Theben Tr 622 Top3 Digital Time Switch 2 Channels Reg/Din Rail/Top-Hat Rail

Product form

SKU: 6220130

Theben Tr 622 Top3 Digital Time Switch 2 Channels Reg/Din Rail/Top-Hat Rail Theben 6220130 Digital 2-channel time switch for DIN... Read more

£260.54 ex VAT £312.65 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program
    Program functions ON-OFF
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 10 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 69 mm
    Width 35 mm
    Height 90 mm
    Net weight 134 g
      Downloads

    Description

    Theben Tr 622 Top3 Digital Time Switch 2 Channels Reg/Din Rail/Top-Hat Rail

    Theben 6220130

    • Digital 2-channel time switch for DIN rail installation
    • Weekly program with ON/OFF functions
    • Two external inputs and three special programs for flexible operation
    • Channel switching and channel lock for enhanced control
    • High LED switching capacity of up to 600 W per channel
    • Programming via app with optional Bluetooth OBELISK top3
    • Low standby consumption of approximately 0.4 W
    • DUOFix plug-in terminals and integrated power reserve

    Designed for professional time-based control applications, this digital 2-channel time switch combines precision, flexibility, and energy efficiency in a compact DIN rail format. The weekly program and versatile special functions support reliable switching in a wide range of electrical installations, while the optional Bluetooth OBELISK top3 enables convenient app-based programming with strong tamper protection. With its robust performance, clear operating logic, and suitability for modern lighting systems, it is an efficient solution for demanding commercial and technical environments.

    .

    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program
    Program functions ON-OFF
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 10 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 69 mm
    Width 35 mm
    Height 90 mm
    Net weight 134 g

    Read more
