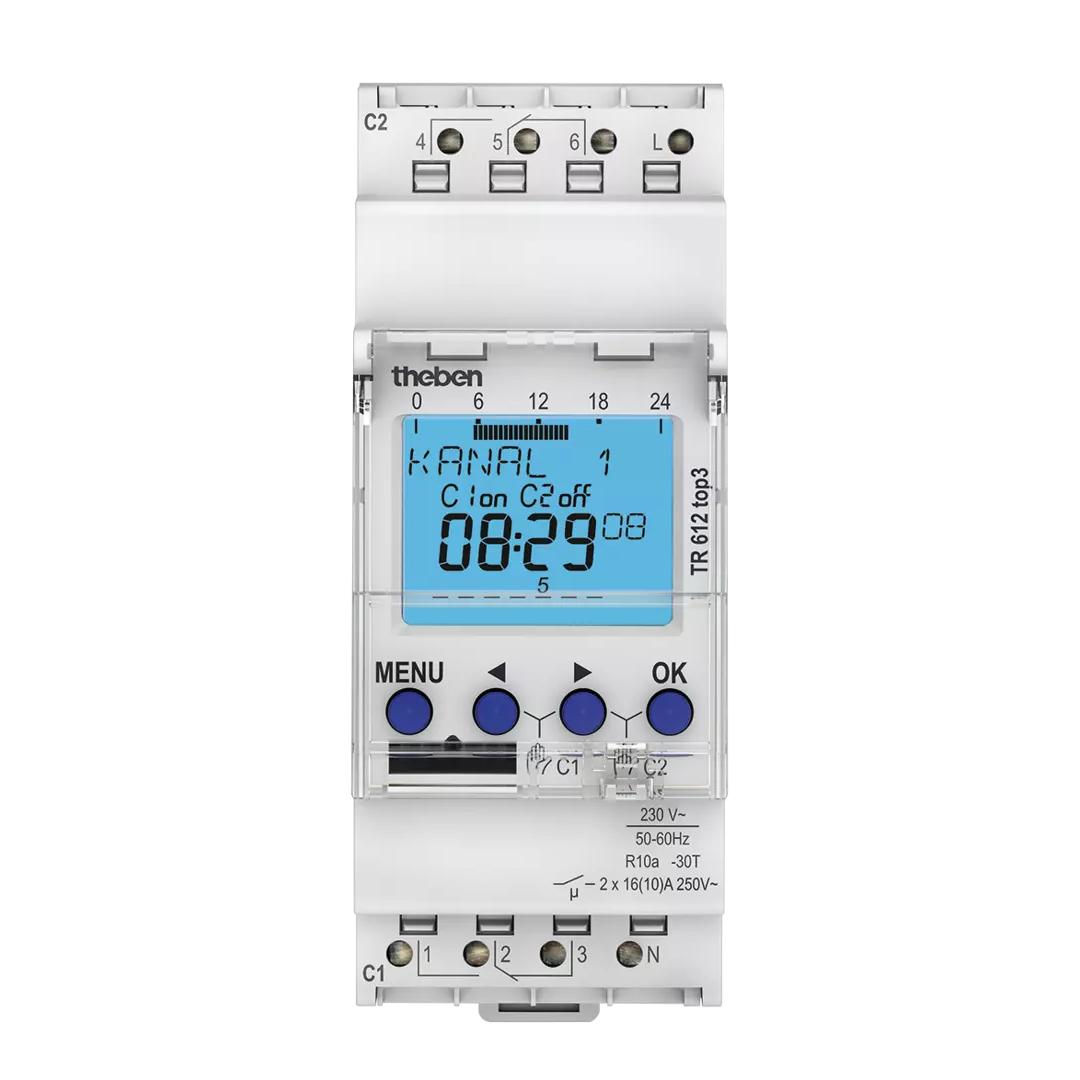

Theben Tr 612 Top3 2 Module 2 Channel Weekly Program Din Rail Digital Time Switch

Description

Theben Tr 612 Top3 2 Module 2 Channel Weekly Program Din Rail Digital Time Switch

Theben 6120130

  • Digital DIN rail time switch with two independent channels
  • Weekly program with additional small annual program capability
  • Program functions: ON/OFF, pulse, and cycle
  • Phase-independent switching output
  • High LED load capacity up to 600 W per channel
  • Programming via app with optional Bluetooth OBELISK top3
  • Tamper-resistant operation with secure configuration
  • Power reserve and automatic summer/winter time changeover
  • 100% compatible with top2 systems
  • DuoFix plug-in terminals for convenient installation

Theben 6120130 is a professional digital time switch designed for reliable and flexible automation in building and electrical applications. With two independent channels, a weekly program, and versatile switching functions, it supports precise control of lighting and other loads in demanding environments. The device combines efficient operation with low standby consumption, secure app-based programming, and robust installation features for professional use.

.

Operating voltage 230 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~0.4 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Switching output Phase-independent
Program Weekly program, small annual program
Program functions ON-OFF, Pulse, Cycle
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 10 A
Shortest switching times 1 s
Time accuracy at 25 °C Typical ± 0,25 s/day (quartz)

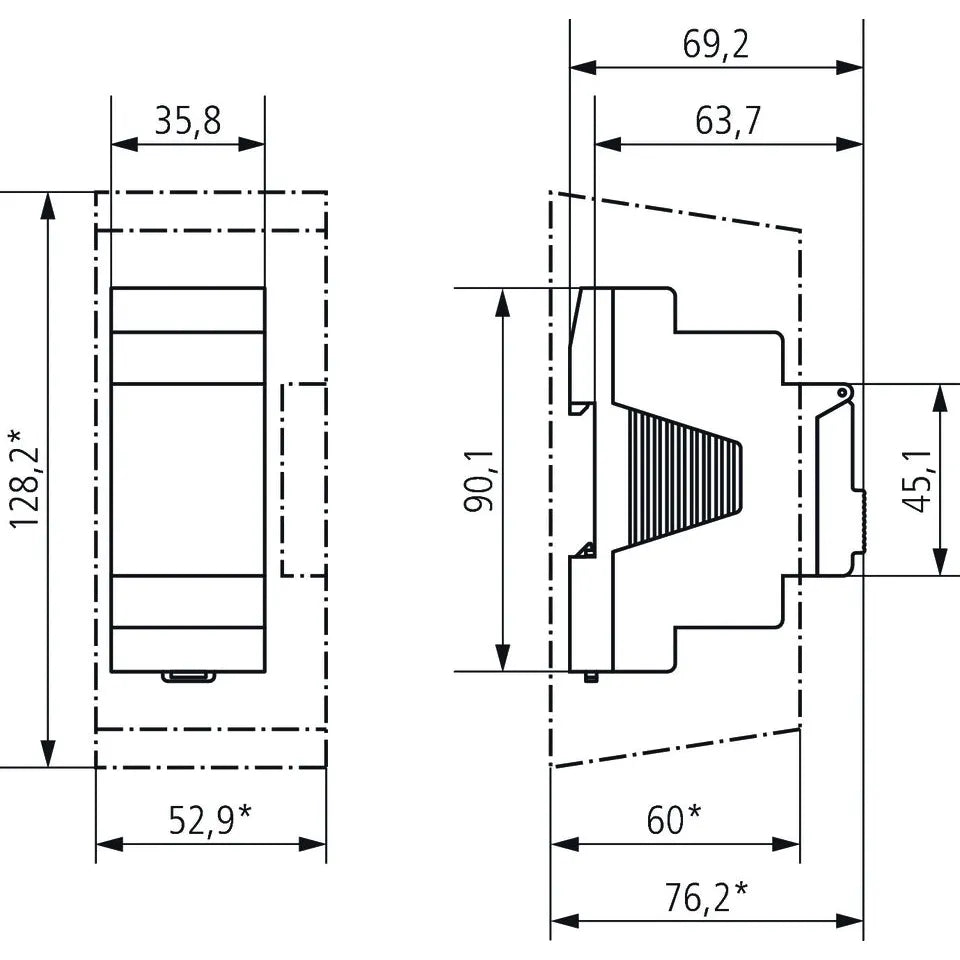

Length 69 mm
Width 35 mm
Height 90 mm
Net weight 122 g

Read more

Theben Tr 612 Top3 2 Module 2 Channel Weekly Program Din Rail Digital Time Switch

Product form

SKU: 6120130

Theben Tr 612 Top3 2 Module 2 Channel Weekly Program Din Rail Digital Time Switch Theben 6120130 Digital DIN rail... Read more

£167.33 ex VAT £200.80 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program, small annual program
    Program functions ON-OFF, Pulse, Cycle
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 10 A
    Shortest switching times 1 s
    Time accuracy at 25 °C Typical ± 0,25 s/day (quartz)
    Length 69 mm
    Width 35 mm
    Height 90 mm
    Net weight 122 g
