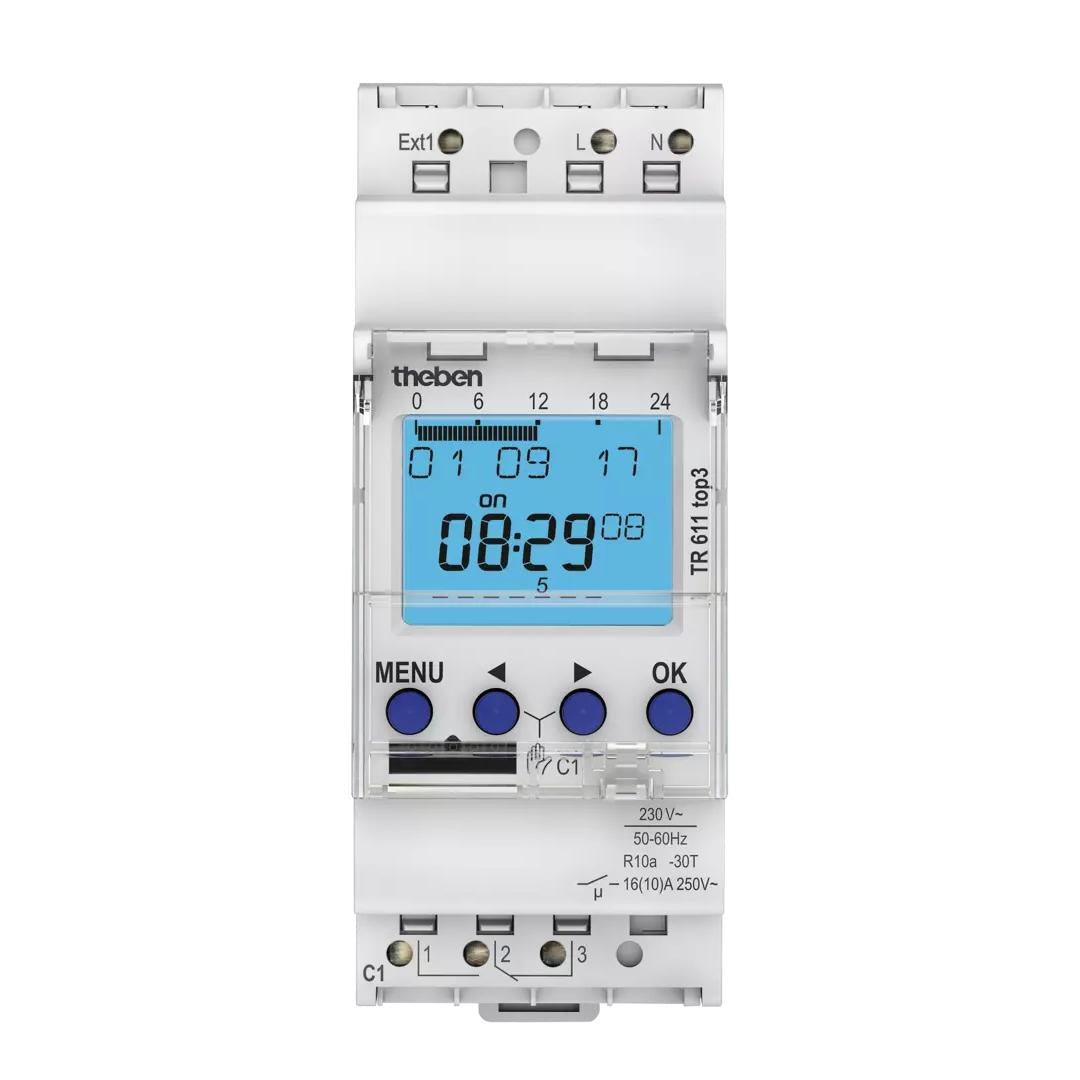

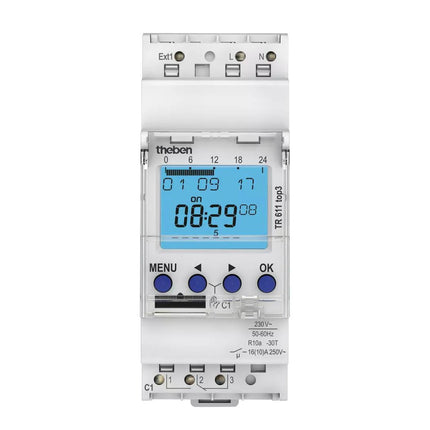

Theben Tr 611 Top3 2 Module 1 Channel Weekly Program Din Rail Digital Time Switch

Description

Theben Tr 611 Top3 2 Module 1 Channel Weekly Program Din Rail Digital Time Switch

Theben 6110130

  • 2-module, 1-channel digital time switch for DIN rail installation
  • Weekly program with ON/OFF switching functions
  • Operating voltage: 12–24 V UC; frequency: 50–60 Hz
  • Phase-independent switching output for flexible system integration
  • Switching capacity: 16 A at 250 V AC (cos ? = 1), 2 A at 250 V AC (cos ? = 0.6)
  • Shortest switching time: 1 minute
  • Quartz-controlled time accuracy: typical ±0.25 s/day at 25 °C
  • Rechargeable lithium battery with power reserve of up to 10 years
  • Programming via front panel or BLE app transfer with OBELISK top3
  • Suitable for efficient control of lighting, HVAC, and building systems

Theben TR 611 top3 delivers precise and reliable time-based control for professional building automation applications. Designed for DIN rail mounting, this compact digital time switch combines straightforward on-device programming with convenient app-based setup via Bluetooth Low Energy, helping to streamline commissioning and ongoing operation. Its long-lasting rechargeable battery supports configuration without a mains connection, enabling flexible pre-wiring setup and dependable timekeeping. With weekly, cycle, pulse, and annual program capabilities, the device offers versatile scheduling options for both recurring and one-off events, making it a practical solution for energy-conscious control of lighting, HVAC, and other building functions.

.

Operating voltage 12 - 24 V UC
Frequency 50 - 60 Hz
Stand-by consumption ~0.3 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Switching output Phase-independent
Program Weekly program
Program functions ON-OFF
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 2 A
Shortest switching times 1 min
Time accuracy at 25 °C typical ± 0,25 s/day (quartz)

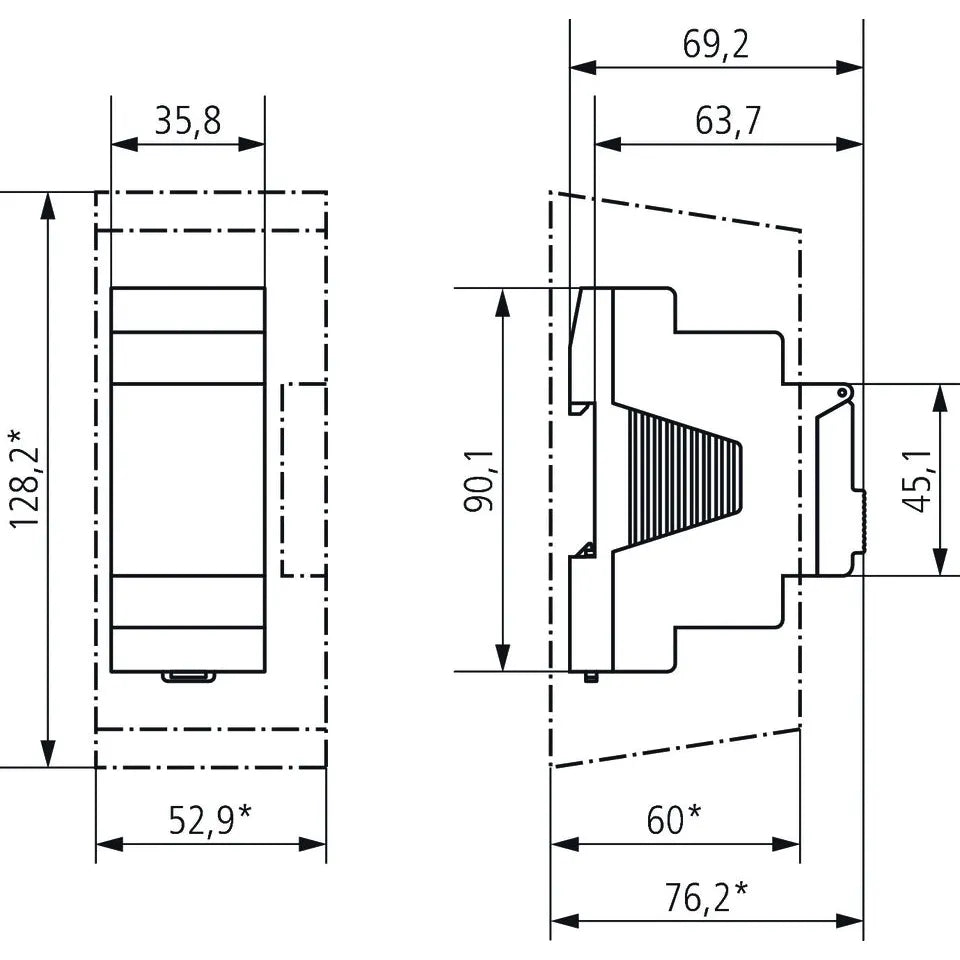

Length 69 mm
Width 35 mm
Height 90 mm
Net weight 107 g

Read more

Theben Tr 611 Top3 2 Module 1 Channel Weekly Program Din Rail Digital Time Switch

Product form

SKU: 6110130

Theben Tr 611 Top3 2 Module 1 Channel Weekly Program Din Rail Digital Time Switch Theben 6110130 2-module, 1-channel digital... Read more

£178.52 ex VAT £214.22 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 12 - 24 V UC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.3 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program
    Program functions ON-OFF
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 2 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 69 mm
    Width 35 mm
    Height 90 mm
    Net weight 107 g
      Downloads

    Description

    Theben Tr 611 Top3 2 Module 1 Channel Weekly Program Din Rail Digital Time Switch

    Theben 6110130

    • 2-module, 1-channel digital time switch for DIN rail installation
    • Weekly program with ON/OFF switching functions
    • Operating voltage: 12–24 V UC; frequency: 50–60 Hz
    • Phase-independent switching output for flexible system integration
    • Switching capacity: 16 A at 250 V AC (cos ? = 1), 2 A at 250 V AC (cos ? = 0.6)
    • Shortest switching time: 1 minute
    • Quartz-controlled time accuracy: typical ±0.25 s/day at 25 °C
    • Rechargeable lithium battery with power reserve of up to 10 years
    • Programming via front panel or BLE app transfer with OBELISK top3
    • Suitable for efficient control of lighting, HVAC, and building systems

    Theben TR 611 top3 delivers precise and reliable time-based control for professional building automation applications. Designed for DIN rail mounting, this compact digital time switch combines straightforward on-device programming with convenient app-based setup via Bluetooth Low Energy, helping to streamline commissioning and ongoing operation. Its long-lasting rechargeable battery supports configuration without a mains connection, enabling flexible pre-wiring setup and dependable timekeeping. With weekly, cycle, pulse, and annual program capabilities, the device offers versatile scheduling options for both recurring and one-off events, making it a practical solution for energy-conscious control of lighting, HVAC, and other building functions.

    .

    Operating voltage 12 - 24 V UC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.3 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program
    Program functions ON-OFF
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 2 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 69 mm
    Width 35 mm
    Height 90 mm
    Net weight 107 g

    Read more
