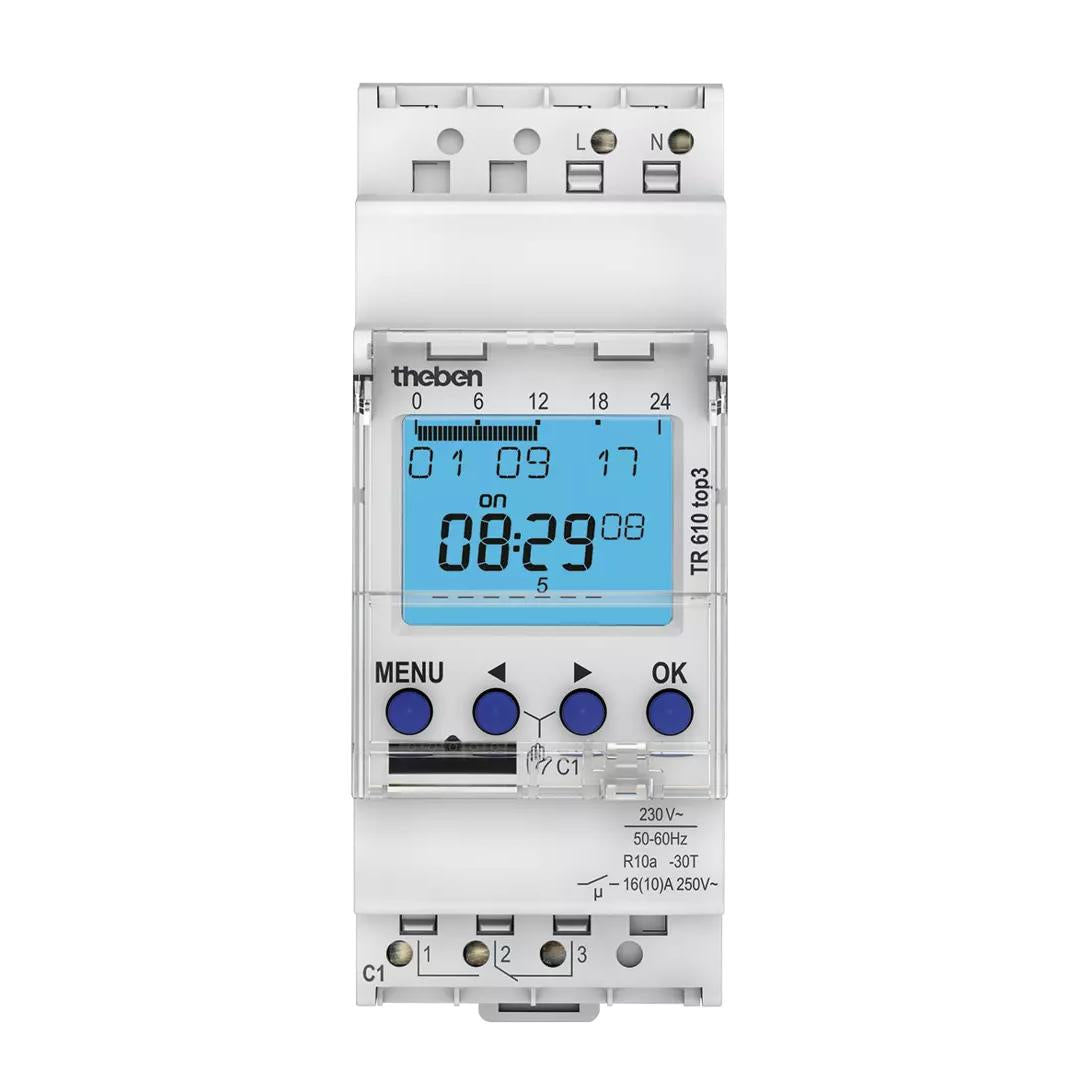

Theben Tr 610 Top3 2 Module 1 Channel Weekly Program Din Rail Digital Time Switch

Description

Theben Tr 610 Top3 2 Module 1 Channel Weekly Program Din Rail Digital Time Switch

Theben 6100130

  • 1-channel digital time switch for DIN rail installation
  • Weekly program with ON-OFF, pulse, and cycle functions
  • High switching capacity: up to 16 A at 250 V AC, cos ? = 1
  • Designed for LED loads up to 600 W and inrush currents up to 800 A
  • App programming support via optional Bluetooth Low Energy OBELISK top3
  • Secure plug-in transmission with tamper-resistant connection
  • Low standby consumption of approximately 0.4 W
  • DuoFix plug-in terminals and power reserve for reliable operation

Designed for professional building automation, this modern digital timer combines precise weekly scheduling with robust switching performance. The phase-independent switching output and quartz-controlled time accuracy support dependable operation across a wide range of applications. Its compact 2-module DIN rail format makes it a practical choice for installations where space efficiency, energy savings, and flexible programming are essential. With optional app-based configuration and a secure Bluetooth interface, it delivers a future-ready solution for efficient time control.

.

Operating voltage 230 - 240 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~0.4 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Switching output Phase-independent
Program Weekly program
Program functions ON-OFF, Pulse, Cycle
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 4 A
Shortest switching times 1 s
Time accuracy at 25 °C typical ± 0,25 s/day (quartz)

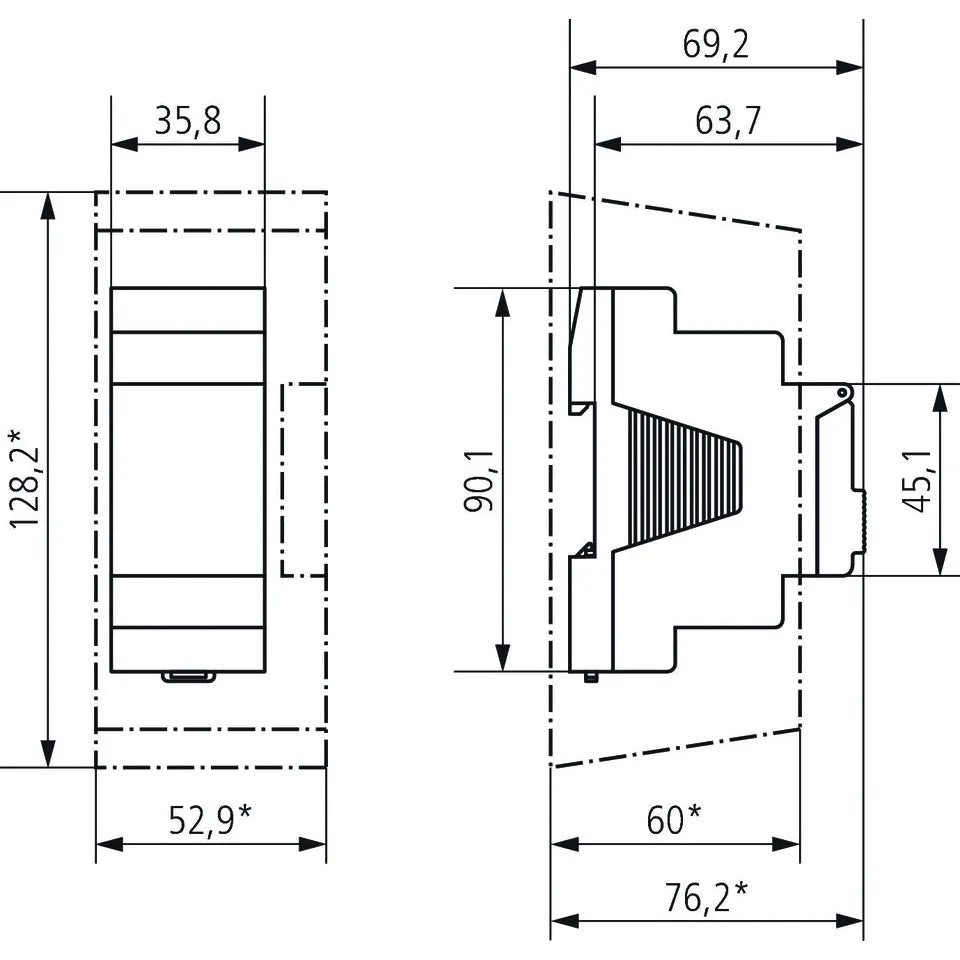

Length 69 mm
Width 35 mm
Height 90 mm
Net weight 105 g

Read more

Theben Tr 610 Top3 2 Module 1 Channel Weekly Program Din Rail Digital Time Switch

Product form

SKU: 6100130

Theben Tr 610 Top3 2 Module 1 Channel Weekly Program Din Rail Digital Time Switch Theben 6100130 1-channel digital time... Read more

£73.88 ex VAT £88.66 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 - 240 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program
    Program functions ON-OFF, Pulse, Cycle
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 4 A
    Shortest switching times 1 s
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 69 mm
    Width 35 mm
    Height 90 mm
    Net weight 105 g
