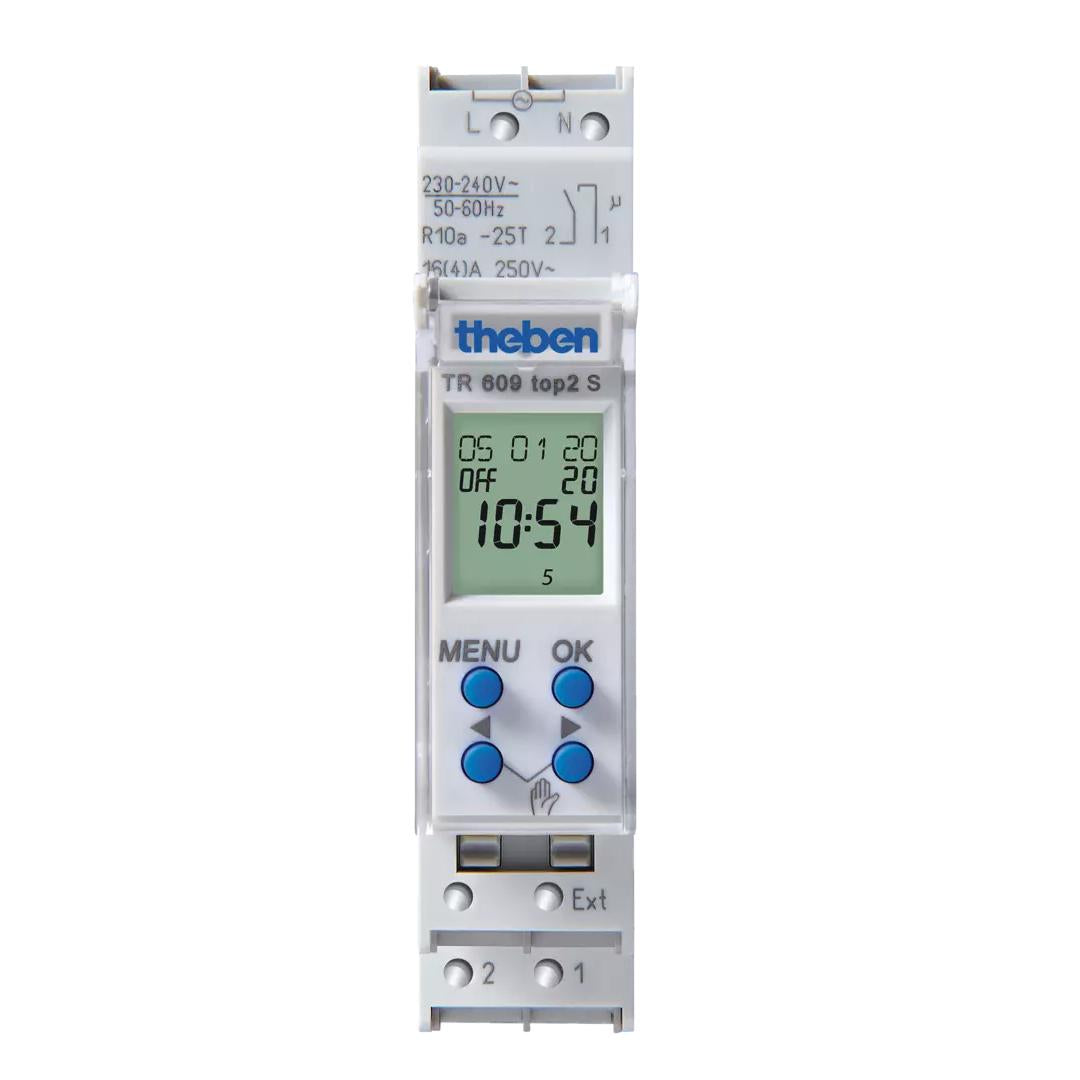

Theben Tr 609 Top2 S Digital Time Switch 1 Channel Reg/Din Rail/Top-Hat Rail

Description

Theben Tr 609 Top2 S Digital Time Switch 1 Channel Reg/Din Rail/Top-Hat Rail

Theben 6090101

  • Compact 1-channel digital time switch for DIN rail mounting
  • Space-saving design with only 1 TE width
  • Weekly program with ON/OFF switching functions
  • Phase-independent switching output for flexible integration
  • External input for expanded control options
  • Intuitive text-based user guidance on the display
  • Reliable operation with power reserve and daylight saving time adjustment
  • Easy installation with DuoFix plug-in terminals
  • OBELISK interface for convenient computer-based programming

This digital time switch combines compact dimensions with reliable performance for professional building automation applications. Designed for efficient installation on the DIN rail, it supports flexible weekly scheduling and straightforward operation. The integrated external input, power reserve, and automatic daylight saving time adjustment enhance functional reliability, while the OBELISK interface provides additional convenience for programming and configuration.

.

Operating voltage 230 - 240 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~0.41 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Switching output Phase-independent
Program Weekly program
Program functions ON-OFF
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 4 A
Shortest switching times 1 min
Time accuracy at 25 °C typical ± 0,25 s/day (quartz)

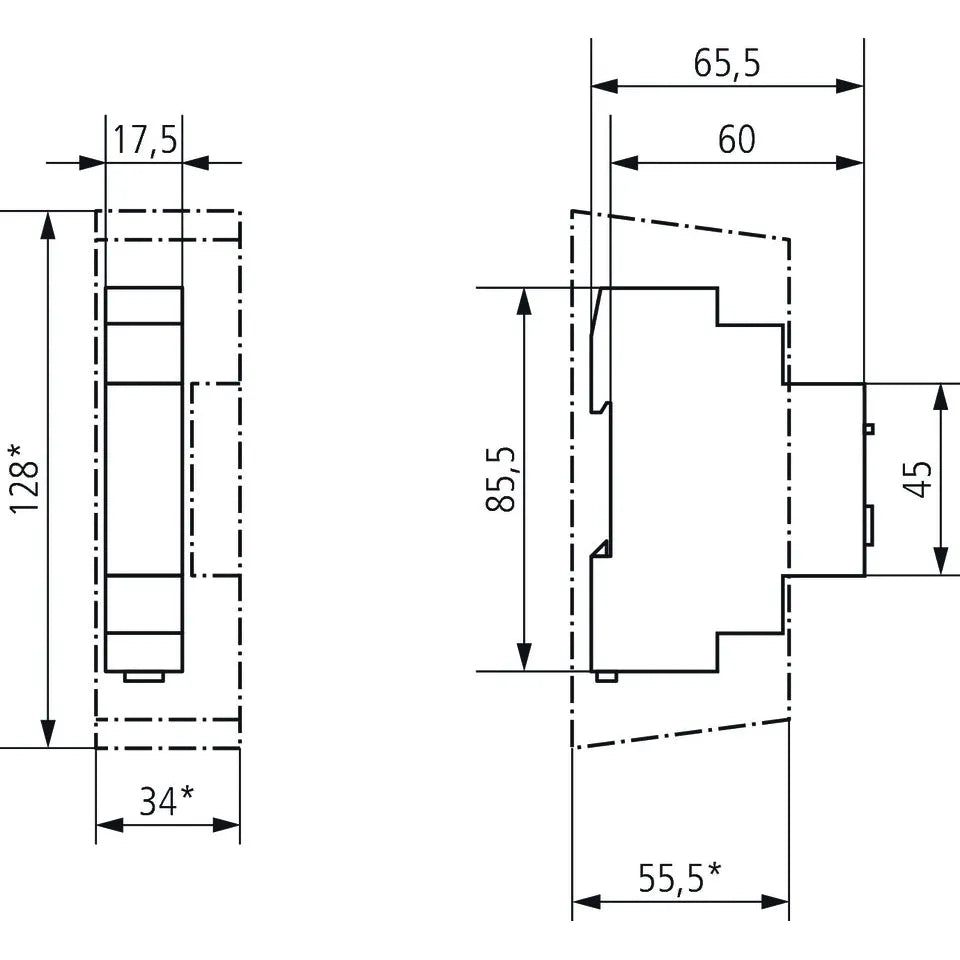

Length 66 mm
Width 17.5 mm
Height 86 mm
Net weight 80 g

Read more

Theben Tr 609 Top2 S Digital Time Switch 1 Channel Reg/Din Rail/Top-Hat Rail

Product form

SKU: 6090101

Theben Tr 609 Top2 S Digital Time Switch 1 Channel Reg/Din Rail/Top-Hat Rail Theben 6090101 Compact 1-channel digital time switch... Read more

£100.14 ex VAT £120.17 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 - 240 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.41 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program
    Program functions ON-OFF
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 4 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 66 mm
    Width 17.5 mm
    Height 86 mm
    Net weight 80 g
      Downloads

    Description

    Theben Tr 609 Top2 S Digital Time Switch 1 Channel Reg/Din Rail/Top-Hat Rail

    Theben 6090101

    • Compact 1-channel digital time switch for DIN rail mounting
    • Space-saving design with only 1 TE width
    • Weekly program with ON/OFF switching functions
    • Phase-independent switching output for flexible integration
    • External input for expanded control options
    • Intuitive text-based user guidance on the display
    • Reliable operation with power reserve and daylight saving time adjustment
    • Easy installation with DuoFix plug-in terminals
    • OBELISK interface for convenient computer-based programming

    This digital time switch combines compact dimensions with reliable performance for professional building automation applications. Designed for efficient installation on the DIN rail, it supports flexible weekly scheduling and straightforward operation. The integrated external input, power reserve, and automatic daylight saving time adjustment enhance functional reliability, while the OBELISK interface provides additional convenience for programming and configuration.

    .

    Operating voltage 230 - 240 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.41 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program
    Program functions ON-OFF
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 4 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 66 mm
    Width 17.5 mm
    Height 86 mm
    Net weight 80 g

    Read more
