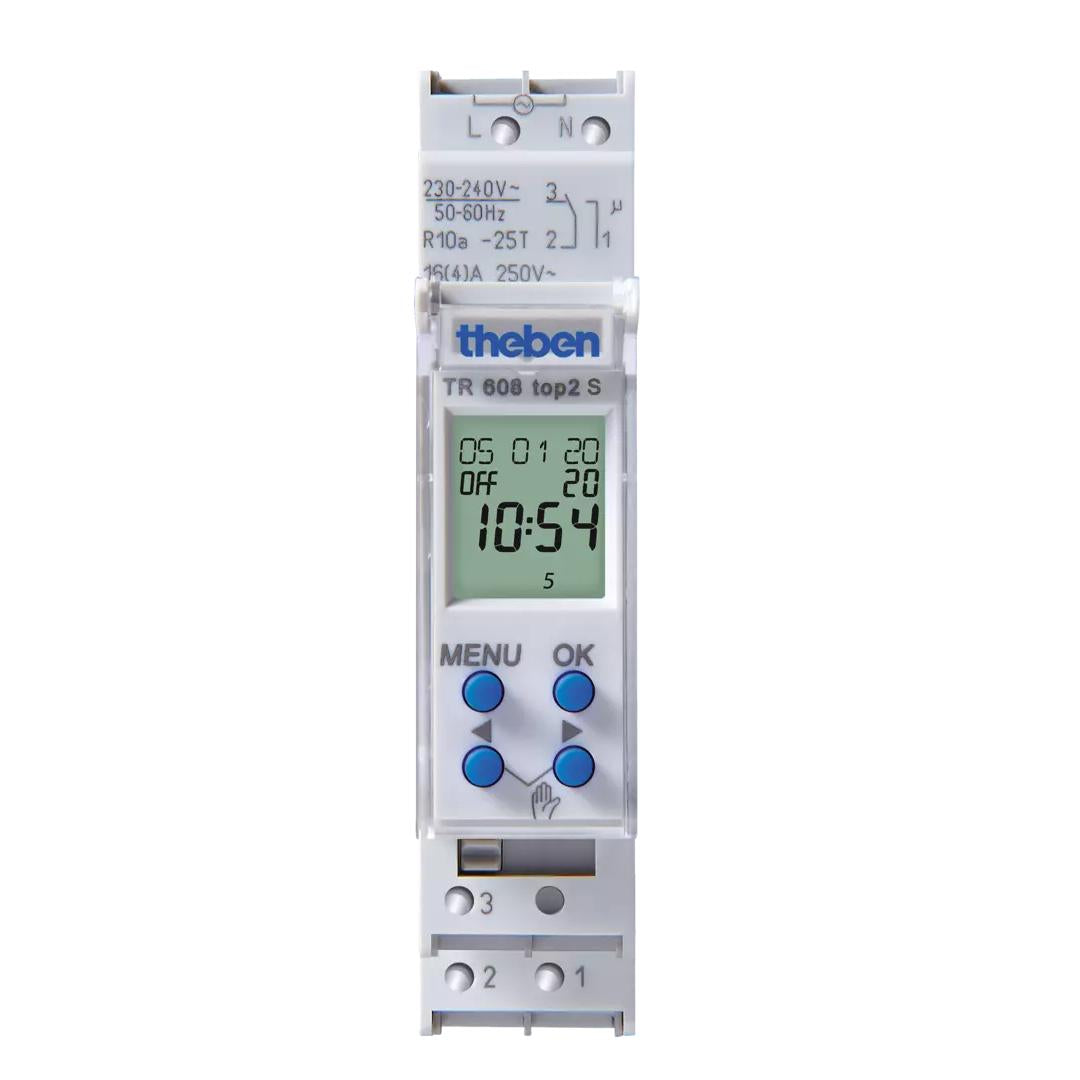

Theben Tr 608 Top2 S 1 Module 1 Channel Weekly Program Din Rail Digital Time Switch

Description

Theben Tr 608 Top2 S 1 Module 1 Channel Weekly Program Din Rail Digital Time Switch

Theben 6080101

  • Compact DIN rail timer with only 1 module width, ideal for space-saving installation in distribution panels
  • 1-channel weekly and daily time program with ON/OFF switching functions
  • Text-based user interface for clear and efficient operation
  • Integrated power reserve and automatic daylight saving time adjustment for reliable operation
  • DuoFix plug-in terminals for fast and convenient installation
  • PC programming possible via OBELISK interface
  • Phase-independent switching output for flexible application

Designed for professional time control applications, the Theben Tr 608 top2 delivers dependable performance in a compact format. Its slim 1-module design makes it an excellent choice for control cabinets with limited space, while the user-friendly display and text-based menu simplify commissioning and daily handling. With integrated power reserve, automatic daylight saving time compensation, and PC programming capability, this digital timer offers a practical and maintenance-friendly solution for modern building and distribution panel installations.

.

Operating voltage 230 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~0.4 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Switching output Phase-independent
Program Weekly program, Astronomical program
Program functions ON-OFF
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 10 A
Shortest switching times 1 min
Time accuracy at 25 °C typical ± 0,25 s/day (quartz)

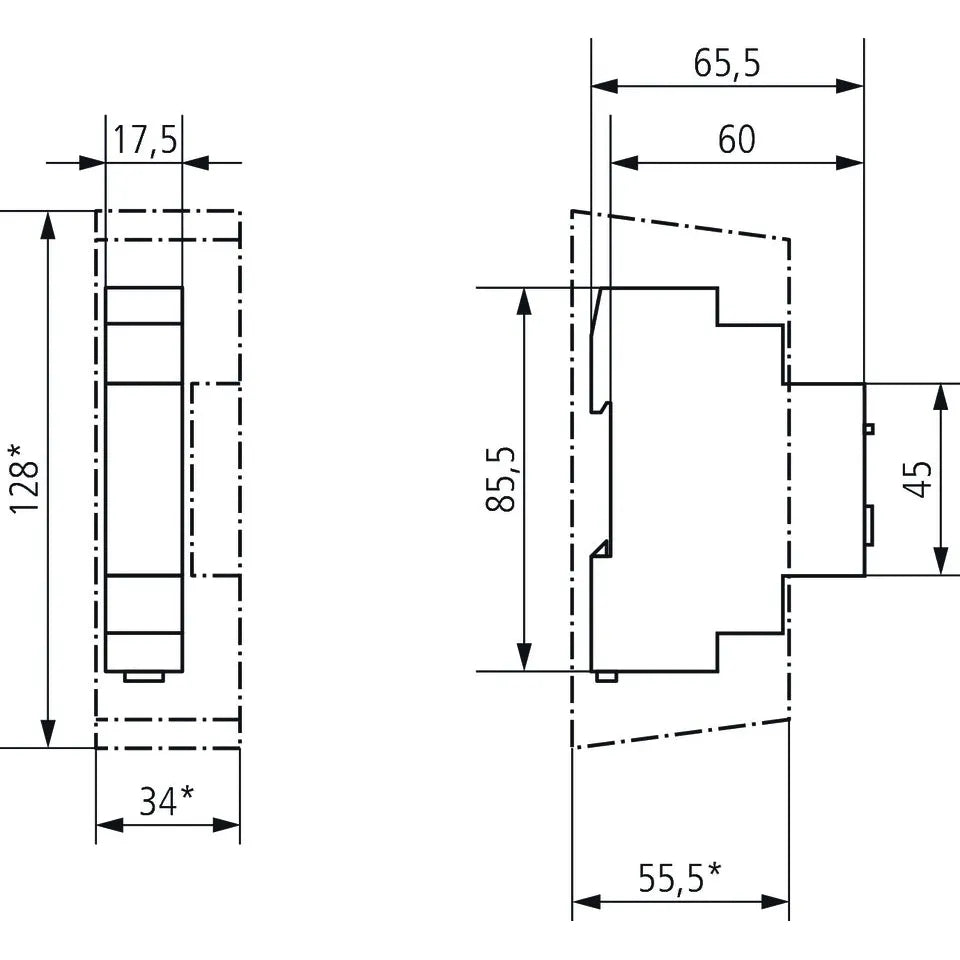

Length 66 mm
Width 17.5 mm
Height 86 mm
Net weight 80 g

Read more

Theben Tr 608 Top2 S 1 Module 1 Channel Weekly Program Din Rail Digital Time Switch

Product form

SKU: 6080101

Theben Tr 608 Top2 S 1 Module 1 Channel Weekly Program Din Rail Digital Time Switch Theben 6080101 Compact DIN... Read more

£42.86 ex VAT £51.43 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program, Astronomical program
    Program functions ON-OFF
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 10 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 66 mm
    Width 17.5 mm
    Height 86 mm
    Net weight 80 g
      Downloads

    Description

    Theben Tr 608 Top2 S 1 Module 1 Channel Weekly Program Din Rail Digital Time Switch

    Theben 6080101

    • Compact DIN rail timer with only 1 module width, ideal for space-saving installation in distribution panels
    • 1-channel weekly and daily time program with ON/OFF switching functions
    • Text-based user interface for clear and efficient operation
    • Integrated power reserve and automatic daylight saving time adjustment for reliable operation
    • DuoFix plug-in terminals for fast and convenient installation
    • PC programming possible via OBELISK interface
    • Phase-independent switching output for flexible application

    Designed for professional time control applications, the Theben Tr 608 top2 delivers dependable performance in a compact format. Its slim 1-module design makes it an excellent choice for control cabinets with limited space, while the user-friendly display and text-based menu simplify commissioning and daily handling. With integrated power reserve, automatic daylight saving time compensation, and PC programming capability, this digital timer offers a practical and maintenance-friendly solution for modern building and distribution panel installations.

    .

    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program, Astronomical program
    Program functions ON-OFF
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 10 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 66 mm
    Width 17.5 mm
    Height 86 mm
    Net weight 80 g
