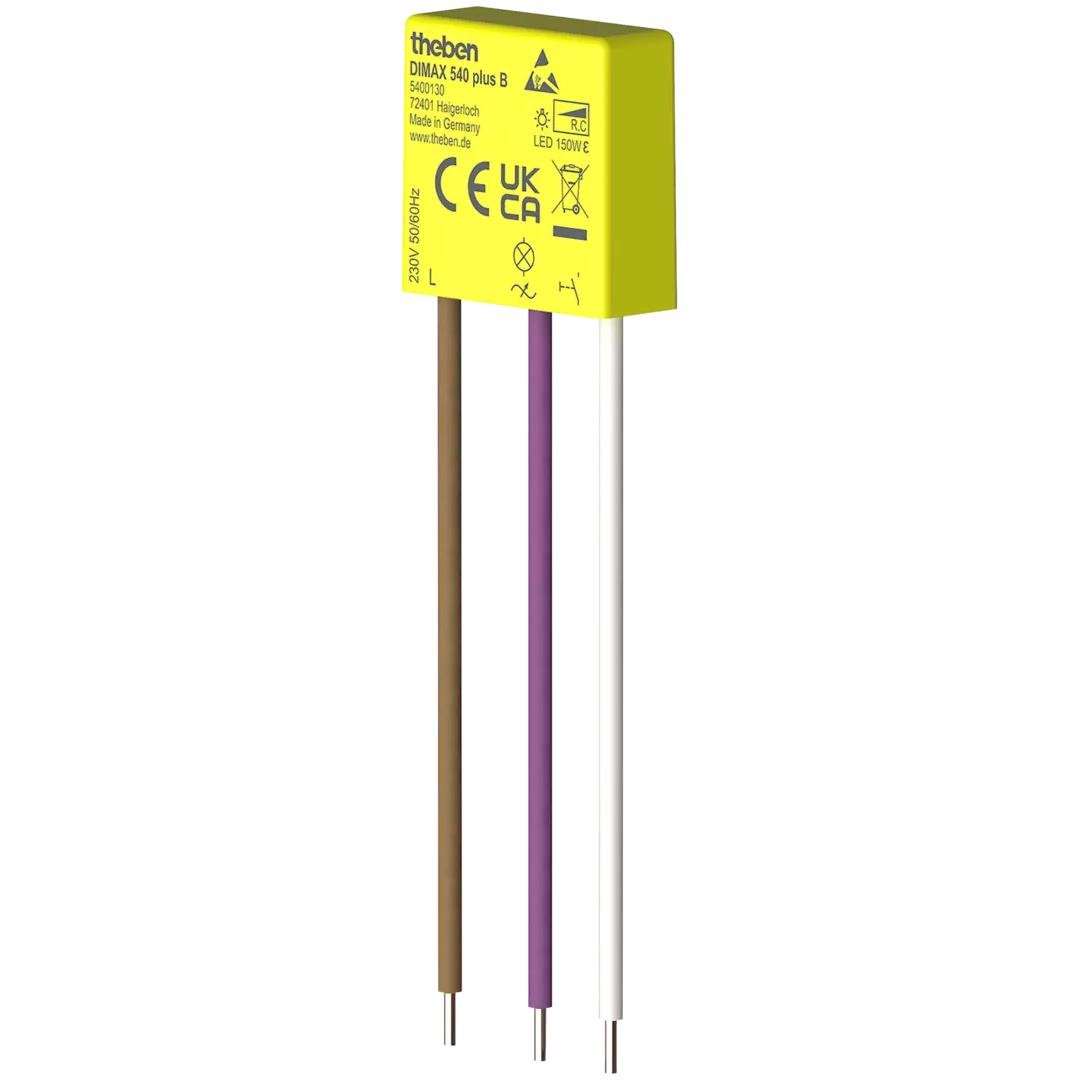

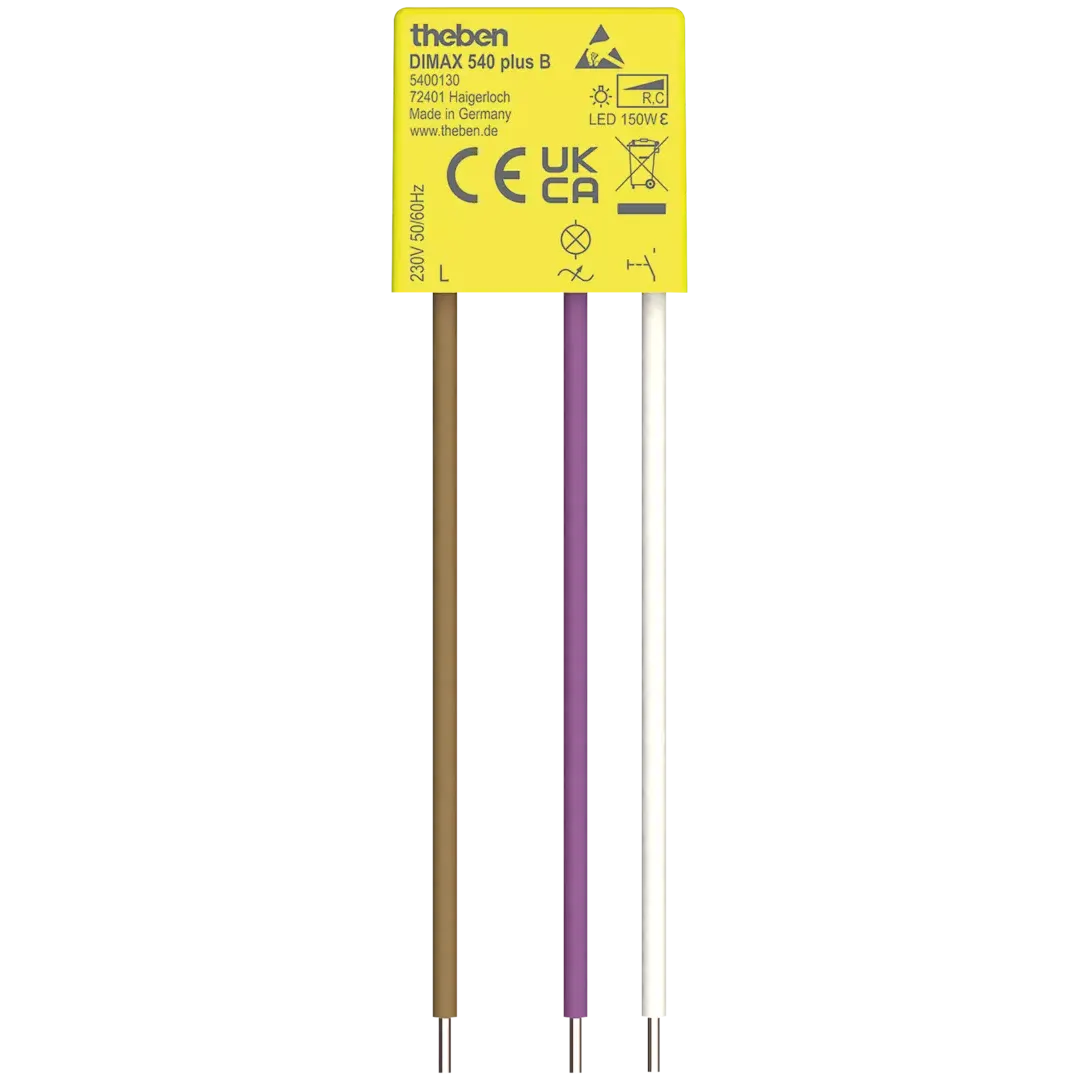

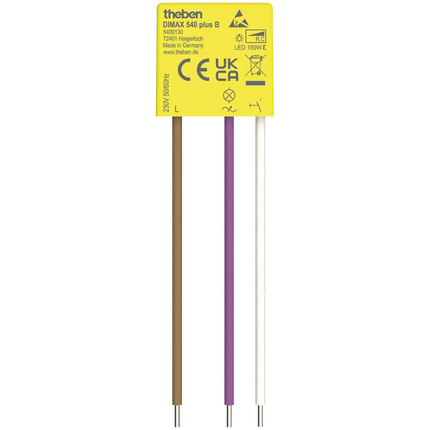

Theben DIMAX 540 Plus B Mini Flush Dimmer

Description

Theben DIMAX 540 Plus B Mini Flush Dimmer

Theben 5400130

  • Flush-mounted dimmer for R and C loads
  • Optimized for LEDs and incandescent/halogen lamps
  • No neutral conductor required, ideal for retrofit applications
  • Compact design with encapsulated electronics for enhanced durability
  • Integrated temperature cut-off, overcurrent protection, and short-circuit fuse
  • Memory function restores the last brightness level on next use
  • Adjustable minimum brightness for flexible lighting control
  • Low standby consumption of approximately 0.34 W

Theben DIMAX 540 plus B is a dependable flush-mounted dimmer designed for efficient and precise light control in residential and commercial installations. Its compact form factor and neutral-free design make it particularly well suited for modernization projects and straightforward retrofitting. Engineered for long-term performance, it combines reliable operation with built-in safety functions and low energy consumption. The memory function and adjustable minimum brightness support convenient, user-friendly lighting control, while the robust construction helps ensure consistent performance over time.

.

Product type Dimmer
Operating voltage 230 V AC
Frequency 50 - 60 Hz
Installation type Flush-mounted
Stand-by consumption ~0.34 W
Incandescent/halogen lamp load 150 W
LED lamp 2-8 W 150 W
Setting Push-button
Max. cable length 100 m
Ambient temperature -10°C ... 45°C

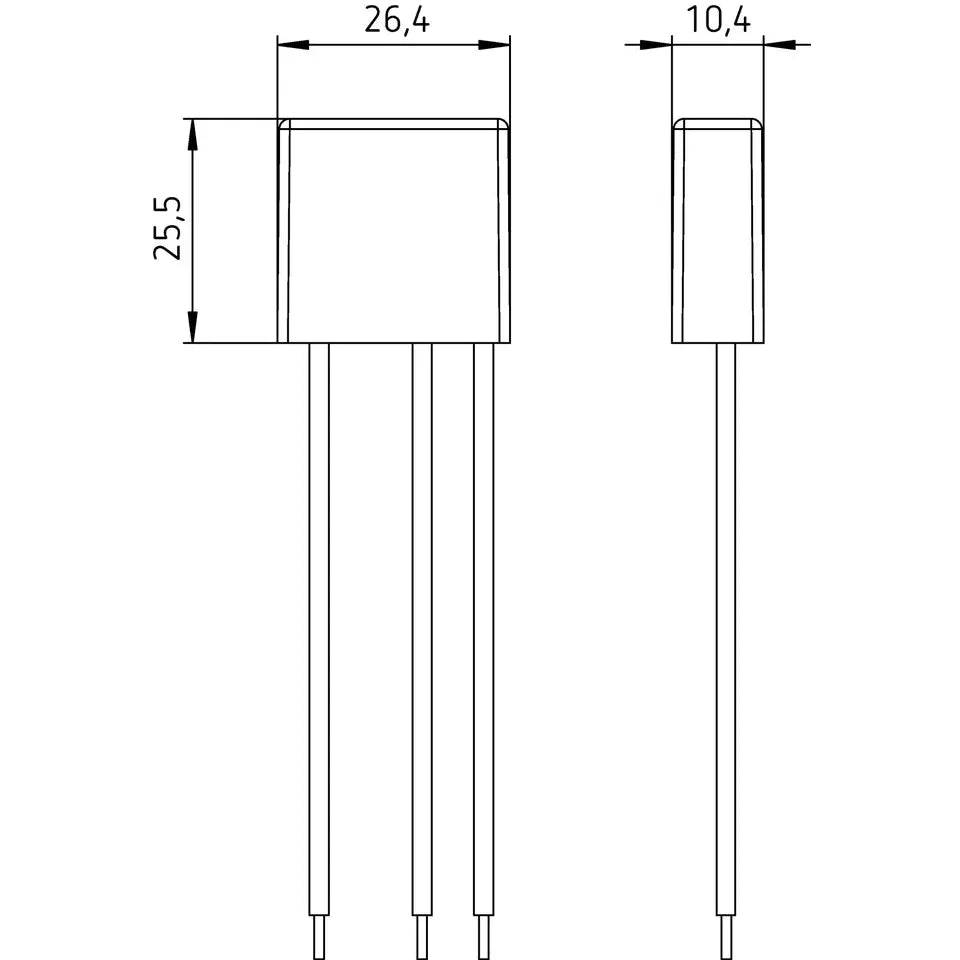

Length 26 mm
Width 27 mm
Height 10 mm
Net weight 13 g

Read more

Theben DIMAX 540 Plus B Mini Flush Dimmer

Product form

SKU: 5400130

Theben DIMAX 540 Plus B Mini Flush Dimmer Theben 5400130 Flush-mounted dimmer for R and C loads Optimized for LEDs... Read more

£16.65 ex VAT £19.98 inc VAT

Next day delivery   This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Product type Dimmer
    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Installation type Flush-mounted
    Stand-by consumption ~0.34 W
    Incandescent/halogen lamp load 150 W
    LED lamp 2-8 W 150 W
    Setting Push-button
    Max. cable length 100 m
    Ambient temperature -10°C ... 45°C
    Length 26 mm
    Width 27 mm
    Height 10 mm
    Net weight 13 g
      Downloads

    Description

    Theben DIMAX 540 Plus B Mini Flush Dimmer

    Theben 5400130

    • Flush-mounted dimmer for R and C loads
    • Optimized for LEDs and incandescent/halogen lamps
    • No neutral conductor required, ideal for retrofit applications
    • Compact design with encapsulated electronics for enhanced durability
    • Integrated temperature cut-off, overcurrent protection, and short-circuit fuse
    • Memory function restores the last brightness level on next use
    • Adjustable minimum brightness for flexible lighting control
    • Low standby consumption of approximately 0.34 W

    Theben DIMAX 540 plus B is a dependable flush-mounted dimmer designed for efficient and precise light control in residential and commercial installations. Its compact form factor and neutral-free design make it particularly well suited for modernization projects and straightforward retrofitting. Engineered for long-term performance, it combines reliable operation with built-in safety functions and low energy consumption. The memory function and adjustable minimum brightness support convenient, user-friendly lighting control, while the robust construction helps ensure consistent performance over time.

    .

    Product type Dimmer
    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Installation type Flush-mounted
    Stand-by consumption ~0.34 W
    Incandescent/halogen lamp load 150 W
    LED lamp 2-8 W 150 W
    Setting Push-button
    Max. cable length 100 m
    Ambient temperature -10°C ... 45°C
    Length 26 mm
    Width 27 mm
    Height 10 mm
    Net weight 13 g
