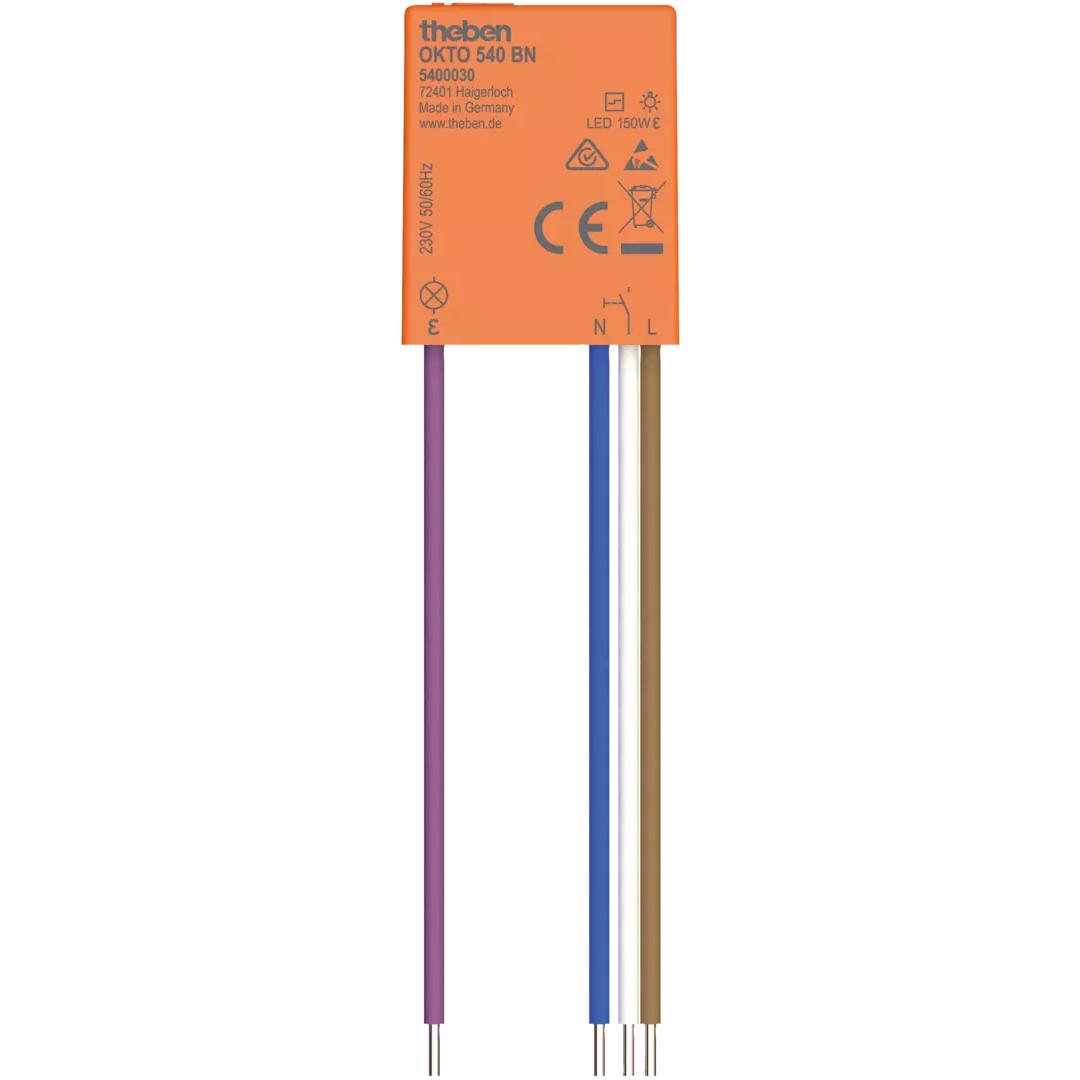

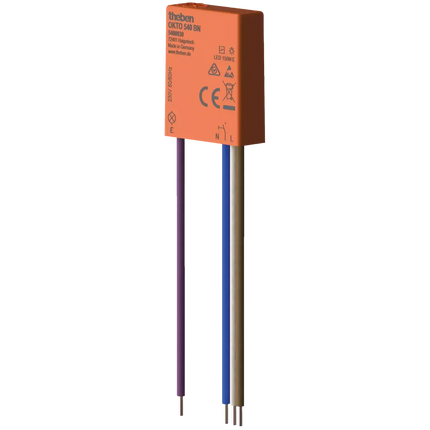

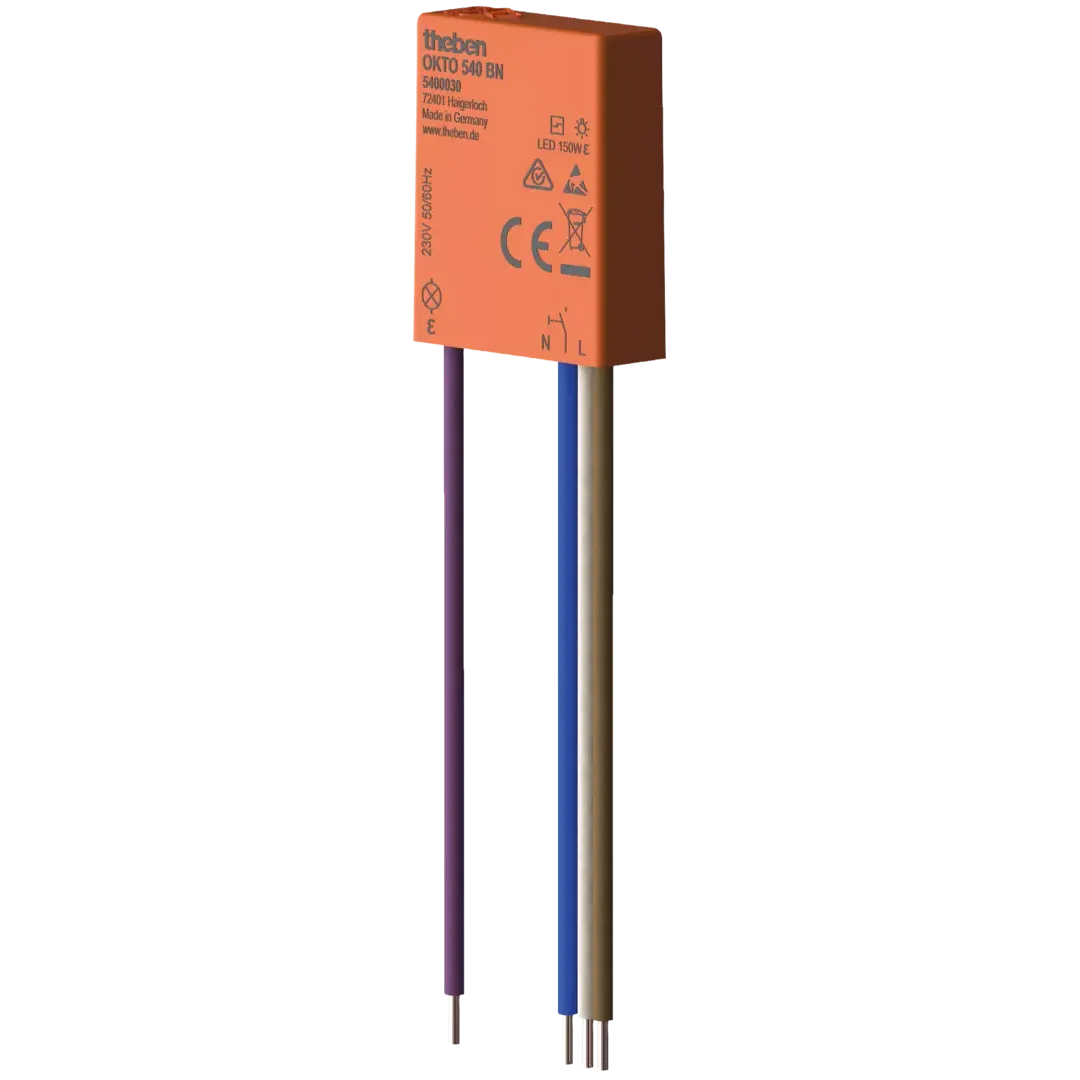

Theben OKTO 540 BN Mini Flush Electronical Latching Relay

Description

Theben OKTO 540 BN Mini Flush Electronical Latching Relay

Theben 5400030

  • Flush-mounted electronic latching relay for compact installations
  • Operating voltage: 230 V AC, 50 - 60 Hz
  • Extremely compact design for installation in confined spaces
  • Whisper-quiet operation for enhanced comfort
  • Stand-by consumption of approximately 0.2 W
  • Suitable for incandescent/halogen lamps up to 250 W
  • Compatible with LED loads from 2-8 W up to 150 W
  • Compatible with LED loads above 8 W up to 150 W
  • High-temperature resistant, self-extinguishing thermoplastic housing
  • Protection class II for added electrical safety

The Theben OKTO 540 BN brings proven OKTO technology into a flush-mounted format, combining compact dimensions, quiet performance, and reliable switching capability. Designed for modern electrical installations, it offers strong versatility in lighting fixtures, furniture, and other space-critical applications. With its efficient power consumption and robust material quality, this relay delivers a dependable solution for professional use.

.

Operating voltage 230 V AC
Frequency 50 - 60 Hz
Installation type Flush-mounted
Stand-by consumption ~0.2 W
Incandescent/halogen lamp load 250 W
LED lamp 2-8 W 150 W
LED lamp > 8 W 150 W
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature -10°C ... 45°C
Protection class II

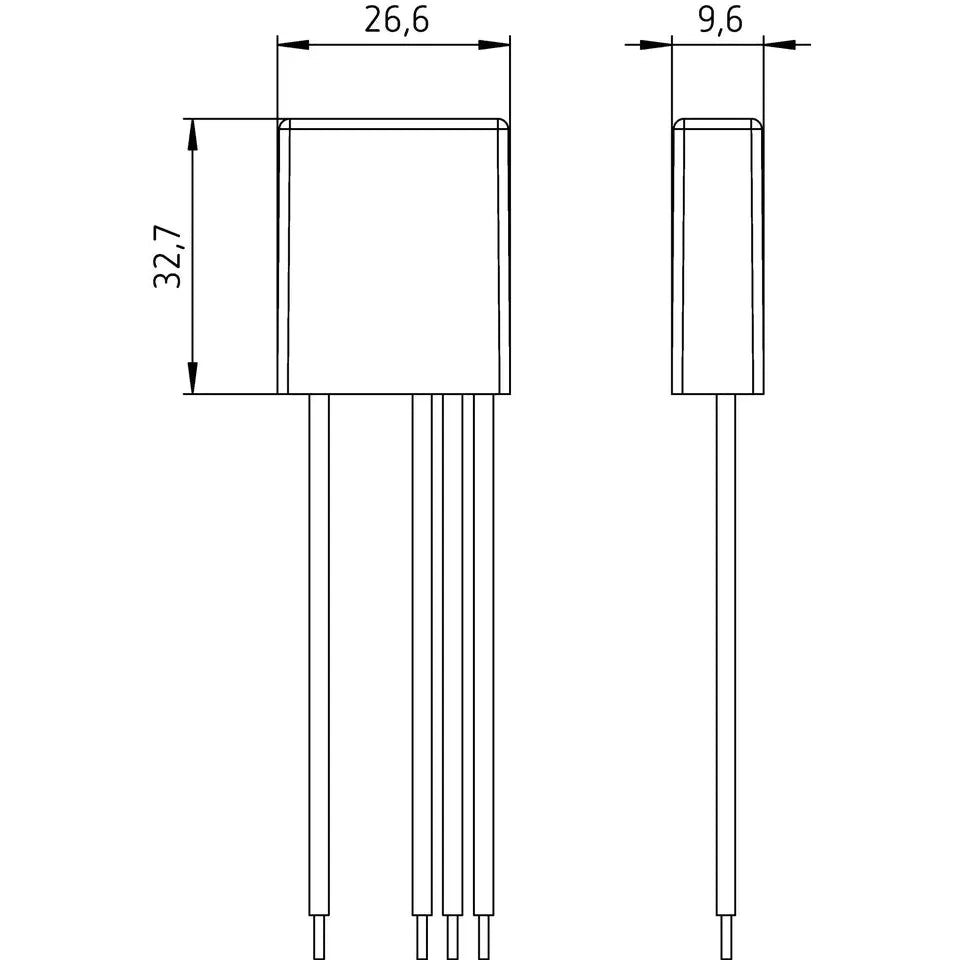

Dimensions (L × W × H) 33 × 27 × 10 mm
Net weight 17 g

Read more

Theben OKTO 540 BN Mini Flush Electronical Latching Relay

Product form

SKU: 5400030

Theben OKTO 540 BN Mini Flush Electronical Latching Relay Theben 5400030 Flush-mounted electronic latching relay for compact installations Operating voltage:... Read more

£30.16 ex VAT £36.19 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Installation type Flush-mounted
    Stand-by consumption ~0.2 W
    Incandescent/halogen lamp load 250 W
    LED lamp 2-8 W 150 W
    LED lamp > 8 W 150 W
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Ambient temperature -10°C ... 45°C
    Protection class II
    Dimensions (L × W × H) 33 × 27 × 10 mm
    Net weight 17 g
      Downloads

    Description

    Theben OKTO 540 BN Mini Flush Electronical Latching Relay

    Theben 5400030

    • Flush-mounted electronic latching relay for compact installations
    • Operating voltage: 230 V AC, 50 - 60 Hz
    • Extremely compact design for installation in confined spaces
    • Whisper-quiet operation for enhanced comfort
    • Stand-by consumption of approximately 0.2 W
    • Suitable for incandescent/halogen lamps up to 250 W
    • Compatible with LED loads from 2-8 W up to 150 W
    • Compatible with LED loads above 8 W up to 150 W
    • High-temperature resistant, self-extinguishing thermoplastic housing
    • Protection class II for added electrical safety

    The Theben OKTO 540 BN brings proven OKTO technology into a flush-mounted format, combining compact dimensions, quiet performance, and reliable switching capability. Designed for modern electrical installations, it offers strong versatility in lighting fixtures, furniture, and other space-critical applications. With its efficient power consumption and robust material quality, this relay delivers a dependable solution for professional use.

    .

    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Installation type Flush-mounted
    Stand-by consumption ~0.2 W
    Incandescent/halogen lamp load 250 W
    LED lamp 2-8 W 150 W
    LED lamp > 8 W 150 W
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Ambient temperature -10°C ... 45°C
    Protection class II
    Dimensions (L × W × H) 33 × 27 × 10 mm
    Net weight 17 g

    Read more
