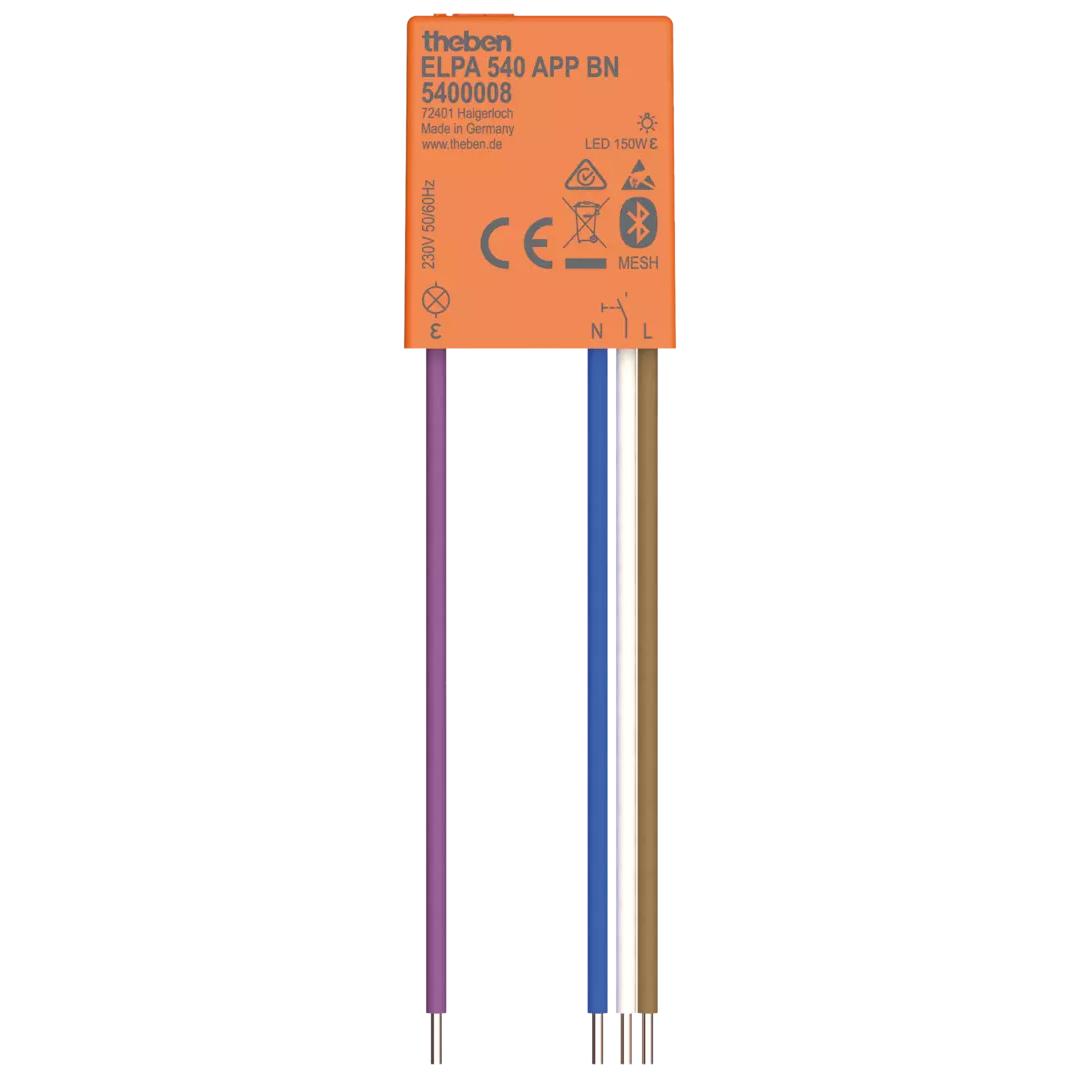

Theben ELPA 540 APP BN Mini Flush Staircase Time Switch

Description

Theben ELPA 540 APP BN Mini Flush Staircase Time Switch

Theben 5400008

  • Compact electronic staircase time switch for reliable lighting control
  • Flush-mounted design for easy retrofitting without additional wiring
  • Bluetooth app configuration with tamper-proof settings
  • Supports push buttons or switches, re-triggering, and early switch-off
  • Optional switch-off pre-warning for enhanced convenience
  • Bluetooth Mesh networking enables decentralized control without a central unit
  • Silent switching suitable for residential and commercial applications
  • Also suitable for fan control and other time-controlled loads

Theben ELPA 540 APP BN is a compact and efficient staircase time switch designed for modern lighting management in residential and commercial environments. Its small size, high functionality, and Bluetooth-based commissioning make it an ideal solution for retrofit and new installation projects alike. With flexible control options, configurable operating behavior, and networkable Bluetooth Mesh support, it delivers dependable performance with minimal installation effort.

.

Operating voltage 230 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~0.2 W
Setting range time 0.5 - 60 min
3/4-way conductors Only 4-way conductor
Switching capacity 60 W at 230 V AC, cos ? = 0.6
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature -10°C ... 45°C
Protection class II
Dimensions 33 x 27 x 10 mm
Net weight 17 g

Read more

Theben ELPA 540 APP BN Mini Flush Staircase Time Switch

Product form

SKU: 5400008

Theben ELPA 540 APP BN Mini Flush Staircase Time Switch Theben 5400008 Compact electronic staircase time switch for reliable lighting... Read more

£68.28 ex VAT £81.94 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.2 W
    Setting range time 0.5 - 60 min
    3/4-way conductors Only 4-way conductor
    Switching capacity 60 W at 230 V AC, cos ? = 0.6
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Ambient temperature -10°C ... 45°C
    Protection class II
    Dimensions 33 x 27 x 10 mm
    Net weight 17 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben ELPA 540 APP BN Mini Flush Staircase Time Switch

    Theben 5400008

    • Compact electronic staircase time switch for reliable lighting control
    • Flush-mounted design for easy retrofitting without additional wiring
    • Bluetooth app configuration with tamper-proof settings
    • Supports push buttons or switches, re-triggering, and early switch-off
    • Optional switch-off pre-warning for enhanced convenience
    • Bluetooth Mesh networking enables decentralized control without a central unit
    • Silent switching suitable for residential and commercial applications
    • Also suitable for fan control and other time-controlled loads

    Theben ELPA 540 APP BN is a compact and efficient staircase time switch designed for modern lighting management in residential and commercial environments. Its small size, high functionality, and Bluetooth-based commissioning make it an ideal solution for retrofit and new installation projects alike. With flexible control options, configurable operating behavior, and networkable Bluetooth Mesh support, it delivers dependable performance with minimal installation effort.

    .

    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.2 W
    Setting range time 0.5 - 60 min
    3/4-way conductors Only 4-way conductor
    Switching capacity 60 W at 230 V AC, cos ? = 0.6
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Ambient temperature -10°C ... 45°C
    Protection class II
    Dimensions 33 x 27 x 10 mm
    Net weight 17 g
