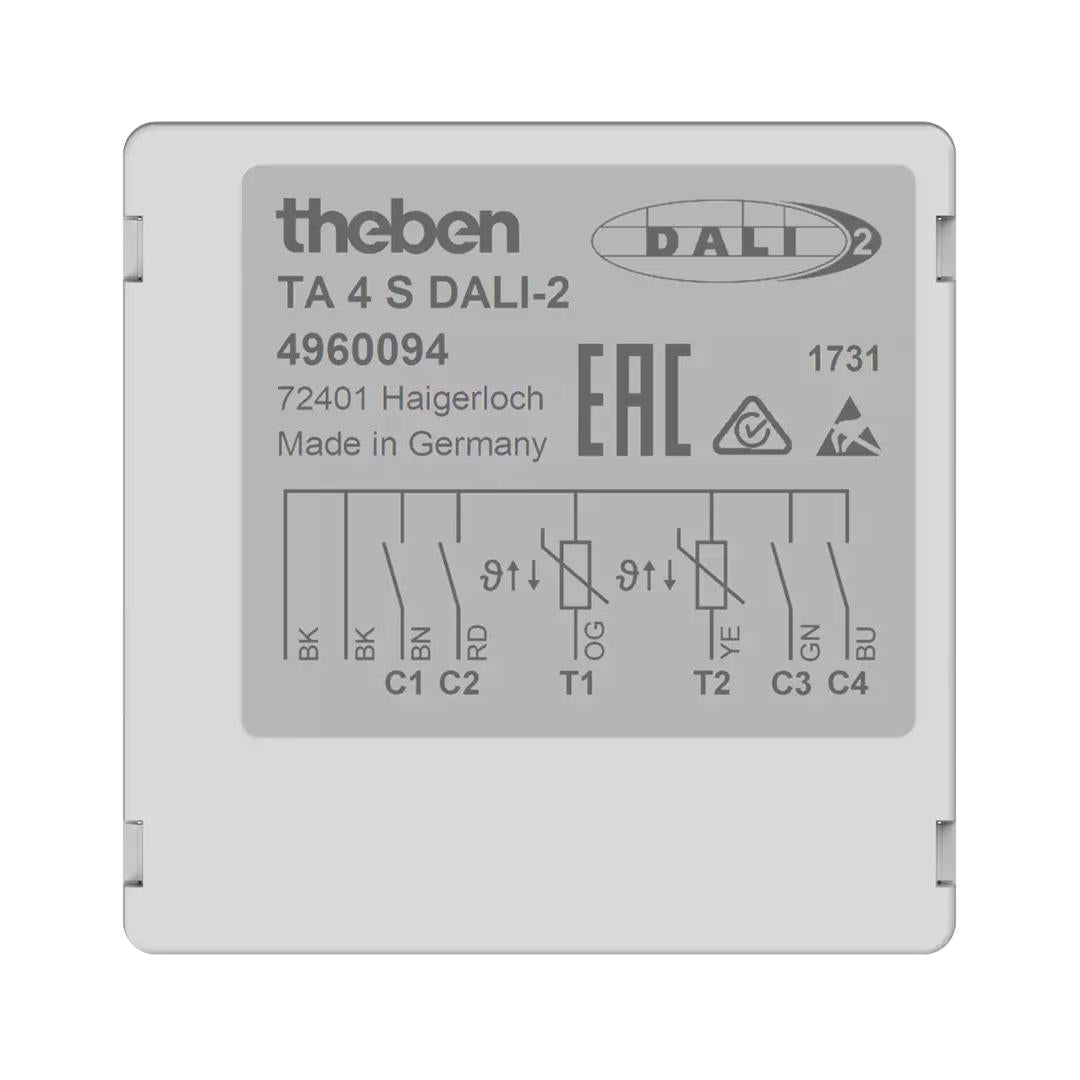

Theben TA 4 S DALI-2 DALI-2 Push Button Interface 4-Gang Flush-Mount

Description

Theben TA 4 S DALI-2 DALI-2 Push Button Interface 4-Gang Flush-Mount

Theben 4960094

  • 4-gang DALI-2 push button interface for flush-mounted installation
  • Integrates conventional control elements into a DALI system
  • Four inputs for floating push buttons
  • Contact type adjustable in the memory bank: normally open or normally closed
  • Two additional inputs for variable resistors, such as sliders or potentiometers
  • Compatible with selected Theben temperature sensors
  • Addressable DALI participant powered directly via the DALI bus
  • Integrated LED for push button interface identification
  • Protection class II and protection type IP 20

The Theben TA 4 S DALI-2 is a compact, flush-mounted interface designed to connect conventional manual controls and selected sensors to a DALI environment with minimal installation effort. With four configurable push button inputs and two additional analogue inputs, it provides flexible control options for modern lighting and building automation applications. Its direct DALI bus power supply and addressable design support efficient integration, while the built-in LED assists with identification during operation and servicing.

.

Installation type Flush-mounted
Protection class II
Type of protection IP 20
Remote controlled -

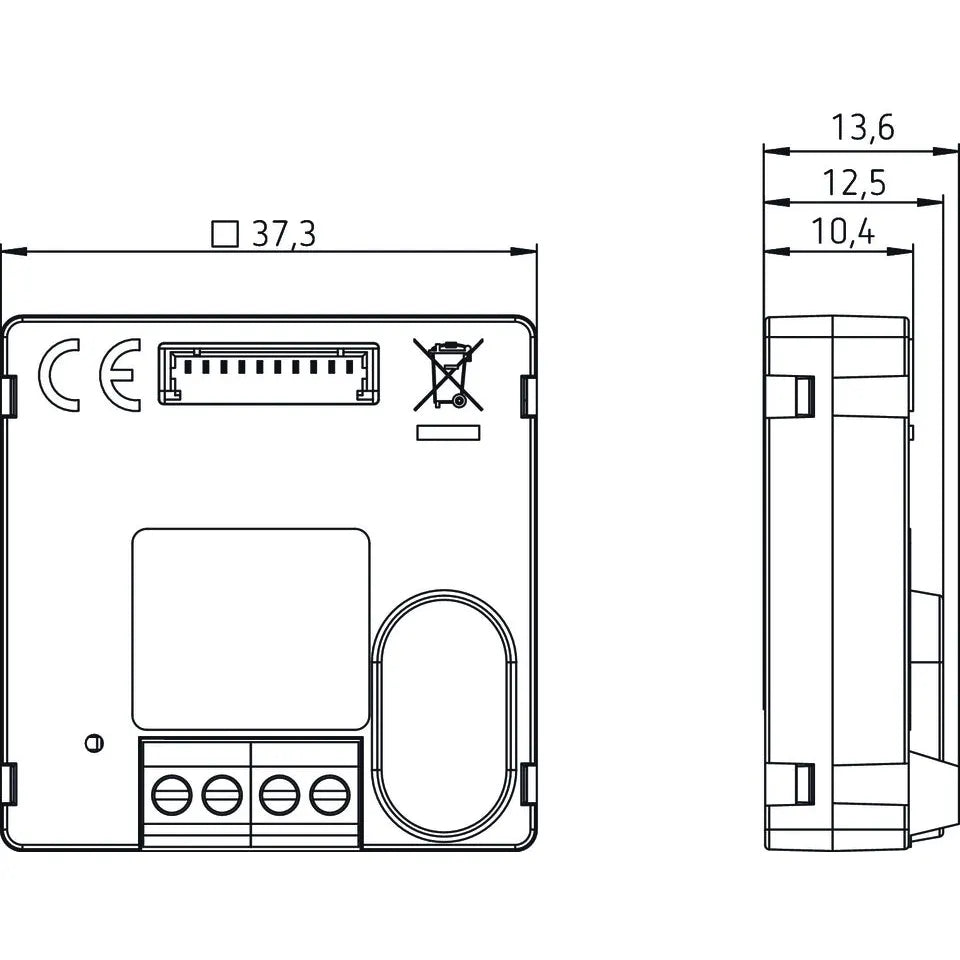

Length 14 mm
Width 37 mm
Height 37 mm
Net weight 13 g

Read more

Theben TA 4 S DALI-2 DALI-2 Push Button Interface 4-Gang Flush-Mount

Product form

SKU: 4960094

Theben TA 4 S DALI-2 DALI-2 Push Button Interface 4-Gang Flush-Mount Theben 4960094 4-gang DALI-2 push button interface for flush-mounted... Read more

£16,670.00 ex VAT £20,004.00 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Installation type Flush-mounted
    Protection class II
    Type of protection IP 20
    Remote controlled -
    Length 14 mm
    Width 37 mm
    Height 37 mm
    Net weight 13 g
      Downloads

    Description

    Theben TA 4 S DALI-2 DALI-2 Push Button Interface 4-Gang Flush-Mount

    Theben 4960094

    • 4-gang DALI-2 push button interface for flush-mounted installation
    • Integrates conventional control elements into a DALI system
    • Four inputs for floating push buttons
    • Contact type adjustable in the memory bank: normally open or normally closed
    • Two additional inputs for variable resistors, such as sliders or potentiometers
    • Compatible with selected Theben temperature sensors
    • Addressable DALI participant powered directly via the DALI bus
    • Integrated LED for push button interface identification
    • Protection class II and protection type IP 20

    The Theben TA 4 S DALI-2 is a compact, flush-mounted interface designed to connect conventional manual controls and selected sensors to a DALI environment with minimal installation effort. With four configurable push button inputs and two additional analogue inputs, it provides flexible control options for modern lighting and building automation applications. Its direct DALI bus power supply and addressable design support efficient integration, while the built-in LED assists with identification during operation and servicing.

    .

    Installation type Flush-mounted
    Protection class II
    Type of protection IP 20
    Remote controlled -
    Length 14 mm
    Width 37 mm
    Height 37 mm
    Net weight 13 g
