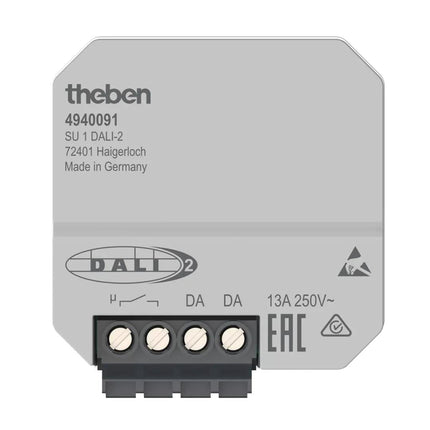

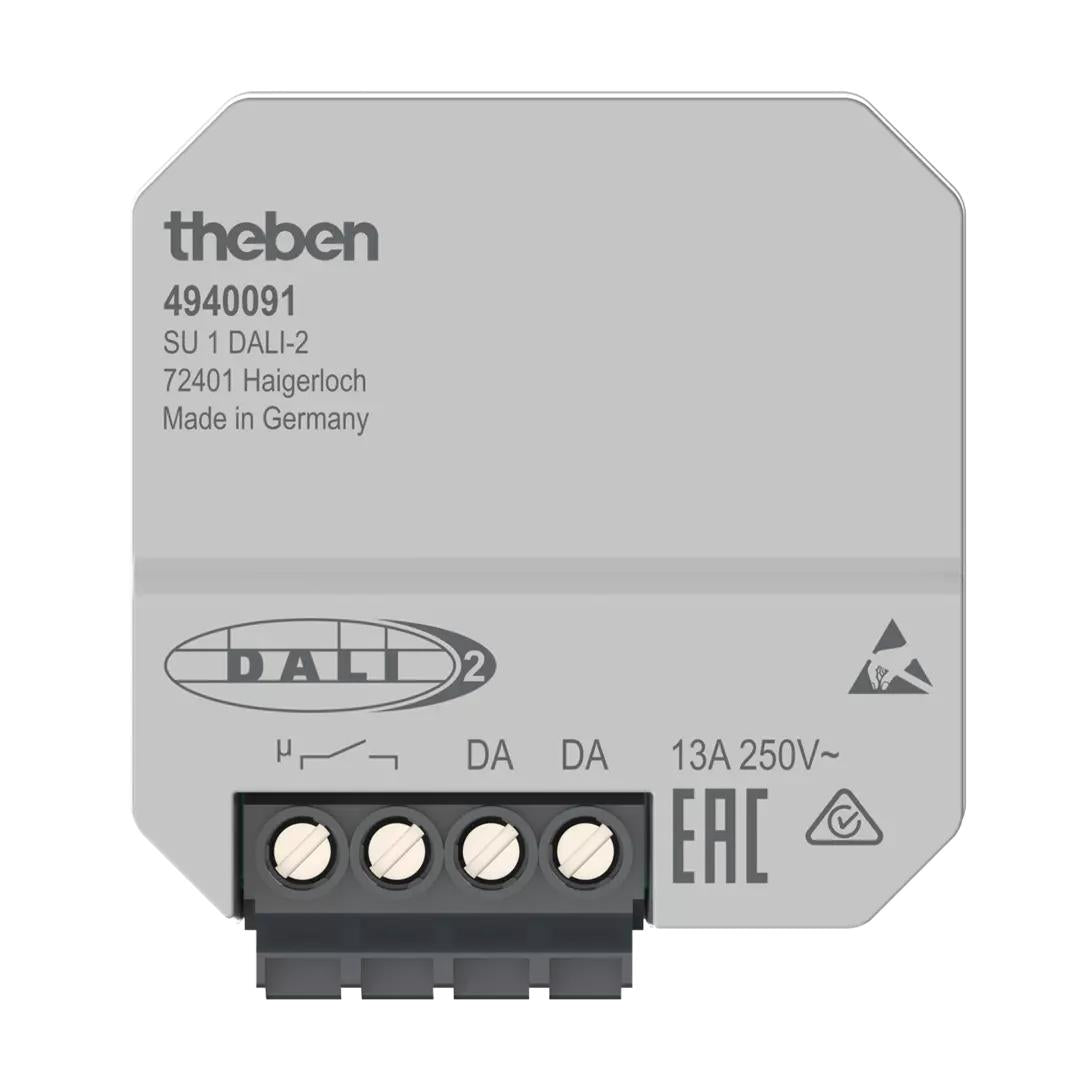

Theben SU 1 DALI-2 DALI Switch Actuator 1-Gang Flush-Mounted TP Data Secure

Description

Theben SU 1 DALI-2 DALI Switch Actuator 1-Gang Flush-Mounted TP Data Secure

Theben 4940091

  • Compact DALI-2 switch actuator for flush-mount installation
  • Controls 230 V loads via the DALI bus
  • Suitable for lamps, fans, and pumps
  • High relay switching capacity up to 13 A at 250 V AC
  • Designed for loads with high inrush current, including LED lighting
  • DALI participant according to IEC 62386 Parts 102 and 208
  • Powered directly via the DALI bus
  • Switching thresholds adjustable via bus
  • Compact housing for standard flush-mounted boxes

This DALI-2 switch actuator is a reliable and space-saving solution for professional building automation applications. It enables efficient switching of 230 V loads through the DALI bus and is well suited for lighting control as well as for fans and pumps. With a robust relay and high inrush current tolerance, the device supports demanding LED applications and ensures dependable performance in modern installations.

.

Stand-by consumption ca. 10 mA
Switching capacity 13 A at 250 V AC, cos ? = 1
Incandescent/halogen lamp load 1500 W
Inrush current max. 500 A / 200 µs
LED lamp < 2 W 30 W
LED lamp 2-8 W 350 W
LED lamp > 8 W 350 W
Remote controlled -
Protection class II
Type of protection IP 20
Length 25 mm
Width 44 mm
Height 49 mm
Net weight 35 g

Read more

Theben SU 1 DALI-2 DALI Switch Actuator 1-Gang Flush-Mounted TP Data Secure

Product form

SKU: 4940091

Theben SU 1 DALI-2 DALI Switch Actuator 1-Gang Flush-Mounted TP Data Secure Theben 4940091 Compact DALI-2 switch actuator for flush-mount... Read more

£16,670.00 ex VAT £20,004.00 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Stand-by consumption ca. 10 mA
    Switching capacity 13 A at 250 V AC, cos ? = 1
    Incandescent/halogen lamp load 1500 W
    Inrush current max. 500 A / 200 µs
    LED lamp < 2 W 30 W
    LED lamp 2-8 W 350 W
    LED lamp > 8 W 350 W
    Remote controlled -
    Protection class II
    Type of protection IP 20
    Length 25 mm
    Width 44 mm
    Height 49 mm
    Net weight 35 g
      Downloads

    Description

    Theben SU 1 DALI-2 DALI Switch Actuator 1-Gang Flush-Mounted TP Data Secure

    Theben 4940091

    • Compact DALI-2 switch actuator for flush-mount installation
    • Controls 230 V loads via the DALI bus
    • Suitable for lamps, fans, and pumps
    • High relay switching capacity up to 13 A at 250 V AC
    • Designed for loads with high inrush current, including LED lighting
    • DALI participant according to IEC 62386 Parts 102 and 208
    • Powered directly via the DALI bus
    • Switching thresholds adjustable via bus
    • Compact housing for standard flush-mounted boxes

    This DALI-2 switch actuator is a reliable and space-saving solution for professional building automation applications. It enables efficient switching of 230 V loads through the DALI bus and is well suited for lighting control as well as for fans and pumps. With a robust relay and high inrush current tolerance, the device supports demanding LED applications and ensures dependable performance in modern installations.

    .

    Stand-by consumption ca. 10 mA
    Switching capacity 13 A at 250 V AC, cos ? = 1
    Incandescent/halogen lamp load 1500 W
    Inrush current max. 500 A / 200 µs
    LED lamp < 2 W 30 W
    LED lamp 2-8 W 350 W
    LED lamp > 8 W 350 W
    Remote controlled -
    Protection class II
    Type of protection IP 20
    Length 25 mm
    Width 44 mm
    Height 49 mm
    Net weight 35 g

    Read more
