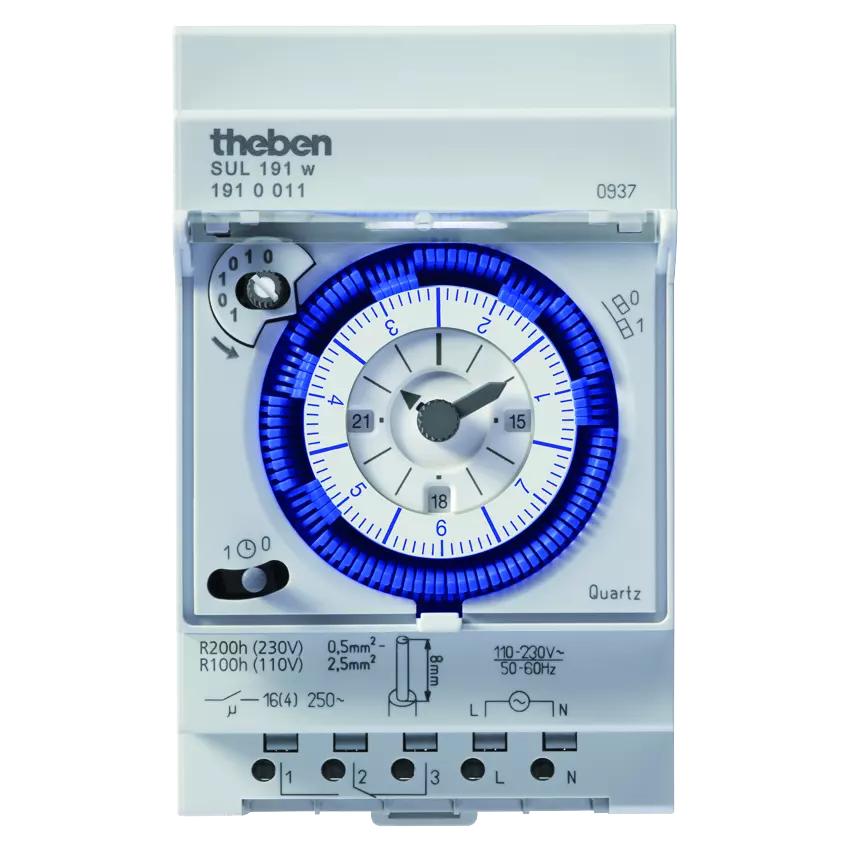

Theben SUL 191 W Analogue Time Switch DIN Rail Weekly Program 3-Day Power Reserve 3 TE Mechanical

Description

Theben SUL 191 W Analogue Time Switch DIN Rail Weekly Program 3-Day Power Reserve 3 TE Mechanical

Theben 1910011

  • Analogue DIN rail-mounted time switch for weekly scheduling
  • Quartz-controlled stepper motor for precise and reliable operation
  • Operating voltage: 110 - 230 V AC, 50 - 60 Hz
  • Switching capacity up to 16 A at 250 V AC (cos ? = 1)
  • Manual three-position switch: Continuous ON / AUTO / Continuous OFF
  • Shortest switching time: 2 hours
  • High time accuracy: ? ± 1 s/day at 25 °C
  • IP 20 protection and protection class II in accordance with EN 60 730-1

Designed for long-term, dependable weekly time control, the Theben SUL 191 W combines robust mechanical switching technology with practical operation and installation convenience. Its clearly visible clock hands, flexible manual override functions, and high power reserve support efficient use in demanding everyday applications. The 3 TE-wide DIN rail design and DuoFix load line connections further simplify installation, making this time switch a reliable choice for professional control tasks.

.

Operating voltage 110 - 230 V AC
Frequency 50 - 60 Hz
Installation type DIN rail
Drive Quartz-controlled stepper motor
Program Weekly program
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 4 A
Shortest switching times 2 h
Time accuracy at 25 °C ? ± 1 s/day (quartz)
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection IP 20
Protection class II according to EN 60 730-1
Ambient temperature -20°C ... 55°C
Length 66 mm
Width 52.5 mm
Height 84 mm
Net weight 119 g

Read more

Theben SUL 191 W Analogue Time Switch DIN Rail Weekly Program 3-Day Power Reserve 3 TE Mechanical

Product form

SKU: 1910011

Theben SUL 191 W Analogue Time Switch DIN Rail Weekly Program 3-Day Power Reserve 3 TE Mechanical Theben 1910011 Analogue... Read more

£147.01 ex VAT £176.41 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 110 - 230 V AC
    Frequency 50 - 60 Hz
    Installation type DIN rail
    Drive Quartz-controlled stepper motor
    Program Weekly program
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 4 A
    Shortest switching times 2 h
    Time accuracy at 25 °C ? ± 1 s/day (quartz)
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Type of protection IP 20
    Protection class II according to EN 60 730-1
    Ambient temperature -20°C ... 55°C
    Length 66 mm
    Width 52.5 mm
    Height 84 mm
    Net weight 119 g
      Downloads

    Description

    Theben SUL 191 W Analogue Time Switch DIN Rail Weekly Program 3-Day Power Reserve 3 TE Mechanical

    Theben 1910011

    • Analogue DIN rail-mounted time switch for weekly scheduling
    • Quartz-controlled stepper motor for precise and reliable operation
    • Operating voltage: 110 - 230 V AC, 50 - 60 Hz
    • Switching capacity up to 16 A at 250 V AC (cos ? = 1)
    • Manual three-position switch: Continuous ON / AUTO / Continuous OFF
    • Shortest switching time: 2 hours
    • High time accuracy: ? ± 1 s/day at 25 °C
    • IP 20 protection and protection class II in accordance with EN 60 730-1

    Designed for long-term, dependable weekly time control, the Theben SUL 191 W combines robust mechanical switching technology with practical operation and installation convenience. Its clearly visible clock hands, flexible manual override functions, and high power reserve support efficient use in demanding everyday applications. The 3 TE-wide DIN rail design and DuoFix load line connections further simplify installation, making this time switch a reliable choice for professional control tasks.

    .

    Operating voltage 110 - 230 V AC
    Frequency 50 - 60 Hz
    Installation type DIN rail
    Drive Quartz-controlled stepper motor
    Program Weekly program
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 4 A
    Shortest switching times 2 h
    Time accuracy at 25 °C ? ± 1 s/day (quartz)
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Type of protection IP 20
    Protection class II according to EN 60 730-1
    Ambient temperature -20°C ... 55°C
    Length 66 mm
    Width 52.5 mm
    Height 84 mm
    Net weight 119 g
