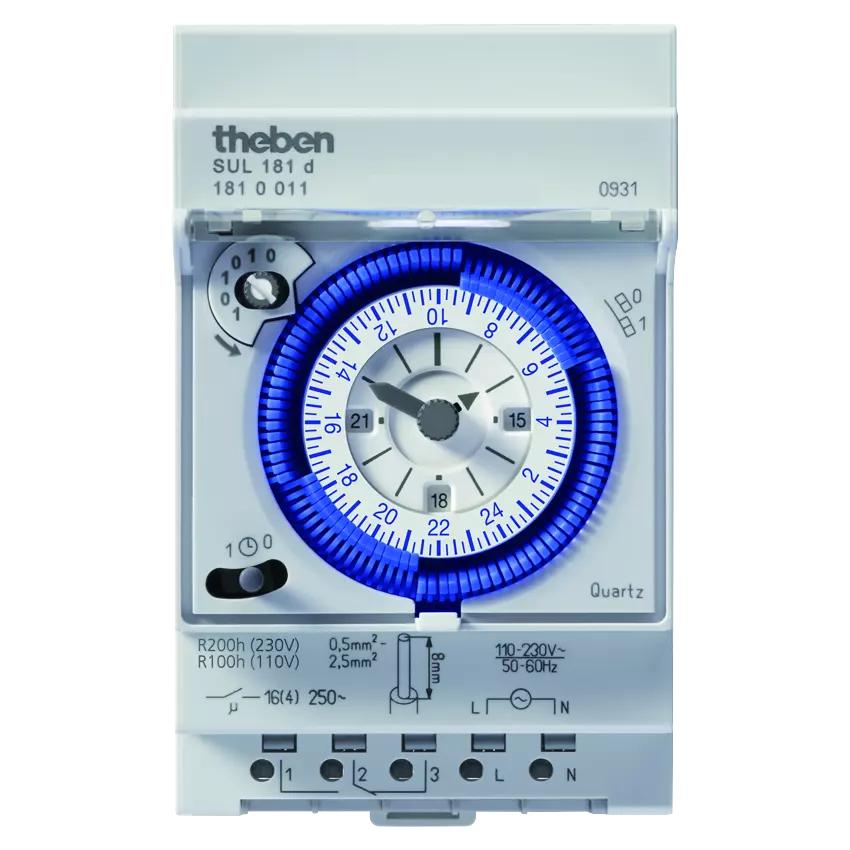

Theben SUL 181 D 3 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

Description

Theben SUL 181 D 3 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

Theben 1810011

  • DIN rail mounted analogue 24-hour time switch with quartz-controlled precision
  • Daily program with 15-minute switching segments and 96 selectable segments
  • Operating voltage range of 110–230 V AC at 50–60 Hz
  • Switching capacity up to 16 A at 250 V AC (cos ? = 1)
  • Manual ON/AUTO/OFF override for flexible operation
  • NiMH rechargeable battery provides approximately 200 hours of backup operation during power failure
  • High-temperature resistant, self-extinguishing thermoplastic housing
  • Suitable for ambient temperatures from -20°C to 55°C

Theben SUL 181 D is a reliable DIN rail mounted analogue segment time switch designed for precise daily switching applications. Its quartz-controlled movement ensures accurate timekeeping, while the simple summer and winter time correction supports dependable operation throughout the year. With a clear 12/24-hour display, easy-to-set clock hands, and straightforward program selection, this unit is built for efficient and user-friendly control. DuoFix plug-in terminals simplify installation and maintenance, making it a practical choice for professional electrical applications where accuracy, durability, and ease of use are essential.

.

Operating voltage 110 - 230 V AC
Frequency 50 - 60 Hz
Installation type DIN rail
Drive Quartz-controlled stepper motor
Program Daily program
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 4 A
Shortest switching times 15 min
Time accuracy at 25 °C ? ± 1 s/day (quartz)
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection IP 20
Protection class II according to EN 60 730-1
Ambient temperature -20°C ... 55°C
Length 66 mm
Width 52.5 mm
Height 84 mm
Net weight 119 g

Read more

Theben SUL 181 D 3 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

Product form

SKU: 1810011

Theben SUL 181 D 3 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch Theben 1810011 DIN rail... Read more

£88.63 ex VAT £106.36 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 110 - 230 V AC
    Frequency 50 - 60 Hz
    Installation type DIN rail
    Drive Quartz-controlled stepper motor
    Program Daily program
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 4 A
    Shortest switching times 15 min
    Time accuracy at 25 °C ? ± 1 s/day (quartz)
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Type of protection IP 20
    Protection class II according to EN 60 730-1
    Ambient temperature -20°C ... 55°C
    Length 66 mm
    Width 52.5 mm
    Height 84 mm
    Net weight 119 g
      Downloads

    Description

    Theben SUL 181 D 3 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

    Theben 1810011

    • DIN rail mounted analogue 24-hour time switch with quartz-controlled precision
    • Daily program with 15-minute switching segments and 96 selectable segments
    • Operating voltage range of 110–230 V AC at 50–60 Hz
    • Switching capacity up to 16 A at 250 V AC (cos ? = 1)
    • Manual ON/AUTO/OFF override for flexible operation
    • NiMH rechargeable battery provides approximately 200 hours of backup operation during power failure
    • High-temperature resistant, self-extinguishing thermoplastic housing
    • Suitable for ambient temperatures from -20°C to 55°C

    Theben SUL 181 D is a reliable DIN rail mounted analogue segment time switch designed for precise daily switching applications. Its quartz-controlled movement ensures accurate timekeeping, while the simple summer and winter time correction supports dependable operation throughout the year. With a clear 12/24-hour display, easy-to-set clock hands, and straightforward program selection, this unit is built for efficient and user-friendly control. DuoFix plug-in terminals simplify installation and maintenance, making it a practical choice for professional electrical applications where accuracy, durability, and ease of use are essential.

    .

    Operating voltage 110 - 230 V AC
    Frequency 50 - 60 Hz
    Installation type DIN rail
    Drive Quartz-controlled stepper motor
    Program Daily program
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 4 A
    Shortest switching times 15 min
    Time accuracy at 25 °C ? ± 1 s/day (quartz)
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Type of protection IP 20
    Protection class II according to EN 60 730-1
    Ambient temperature -20°C ... 55°C
    Length 66 mm
    Width 52.5 mm
    Height 84 mm
    Net weight 119 g

    Read more
