Theben Selekta 174 Top3 Astro Time Switch 2 Channels Reg/Din Rail/Top-Hat Rail Reversible Astro Mode

Description

Theben Selekta 174 Top3 Astro Time Switch 2 Channels Reg/Din Rail/Top-Hat Rail Reversible Astro Mode

Theben 1740130

  • Two independent channels for flexible time-based control
  • Weekly and astronomical program for accurate switching based on sunrise and sunset
  • Programmable via app with optional Bluetooth OBELISK top3 for secure, tamper-resistant operation
  • Designed for high LED loads up to 600 W per channel
  • Low standby consumption of approximately 0.4 W for energy-efficient use
  • Includes power reserve, automatic daylight saving time adjustment, and DuoFix plug-in terminals
  • Phase-independent switching output with ON-OFF and pulse functions

This digital DIN rail time switch delivers dependable and versatile automation for professional applications. Combining a weekly program with an astro function, it ensures switching operations are aligned with daily light conditions while maintaining precise control for a wide range of installations. Its two-channel design supports efficient management of separate circuits, making it suitable for lighting and other time-dependent loads. With convenient app-based programming via the optional Bluetooth OBELISK top3, the unit provides a practical balance of security, flexibility, and operational efficiency.

.

Operating voltage 230 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~0.4 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Switching output Phase-independent
Program Weekly program; Astronomical program
Program functions ON-OFF; Pulse
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 10 A
Shortest switching times 1 min
Time accuracy at 25 °C typical ± 0,25 s/day (quartz)

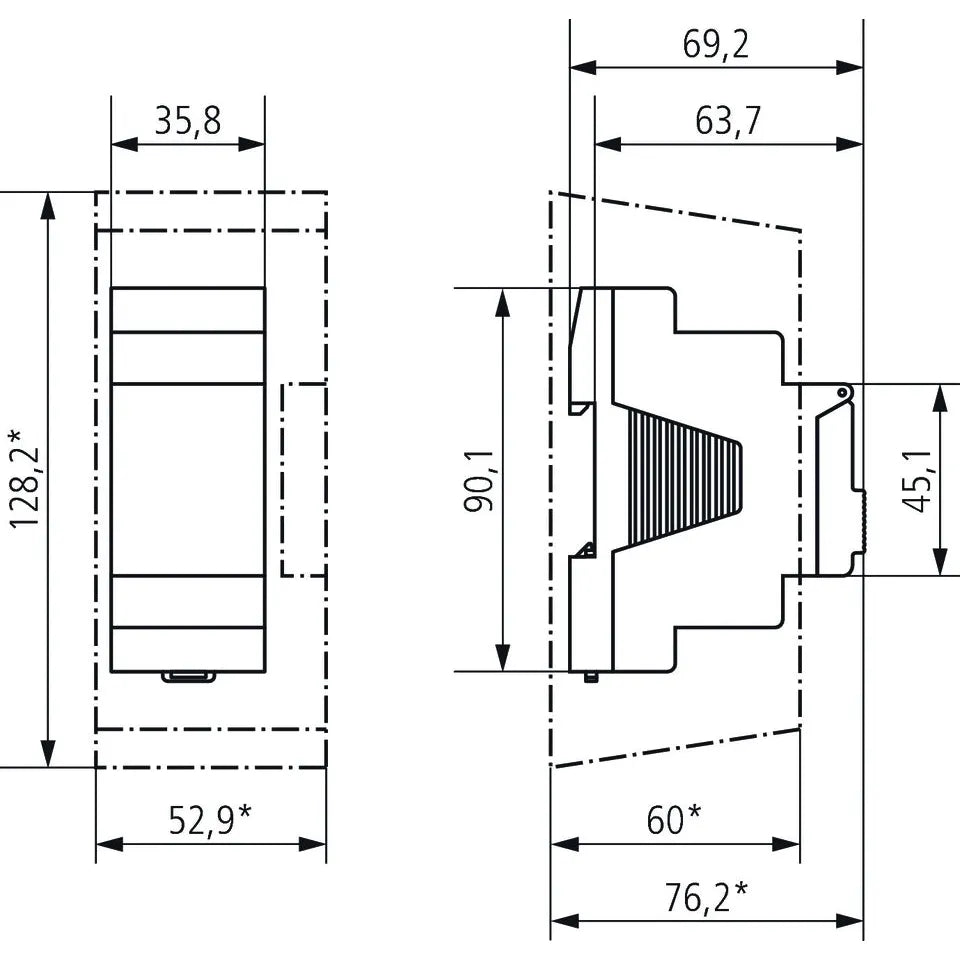

Length 69 mm
Width 35 mm
Height 90 mm
Net weight 122 g

Read more

Theben Selekta 174 Top3 Astro Time Switch 2 Channels Reg/Din Rail/Top-Hat Rail Reversible Astro Mode

Product form

SKU: 1740130

Theben Selekta 174 Top3 Astro Time Switch 2 Channels Reg/Din Rail/Top-Hat Rail Reversible Astro Mode Theben 1740130 Two independent channels... Read more

£195.79 ex VAT £234.95 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program; Astronomical program
    Program functions ON-OFF; Pulse
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 10 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 69 mm
    Width 35 mm
    Height 90 mm
    Net weight 122 g
      Downloads

    Description

    Theben Selekta 174 Top3 Astro Time Switch 2 Channels Reg/Din Rail/Top-Hat Rail Reversible Astro Mode

    Theben 1740130

    • Two independent channels for flexible time-based control
    • Weekly and astronomical program for accurate switching based on sunrise and sunset
    • Programmable via app with optional Bluetooth OBELISK top3 for secure, tamper-resistant operation
    • Designed for high LED loads up to 600 W per channel
    • Low standby consumption of approximately 0.4 W for energy-efficient use
    • Includes power reserve, automatic daylight saving time adjustment, and DuoFix plug-in terminals
    • Phase-independent switching output with ON-OFF and pulse functions

    This digital DIN rail time switch delivers dependable and versatile automation for professional applications. Combining a weekly program with an astro function, it ensures switching operations are aligned with daily light conditions while maintaining precise control for a wide range of installations. Its two-channel design supports efficient management of separate circuits, making it suitable for lighting and other time-dependent loads. With convenient app-based programming via the optional Bluetooth OBELISK top3, the unit provides a practical balance of security, flexibility, and operational efficiency.

    .

    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program; Astronomical program
    Program functions ON-OFF; Pulse
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 10 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 69 mm
    Width 35 mm
    Height 90 mm
    Net weight 122 g

    Read more
