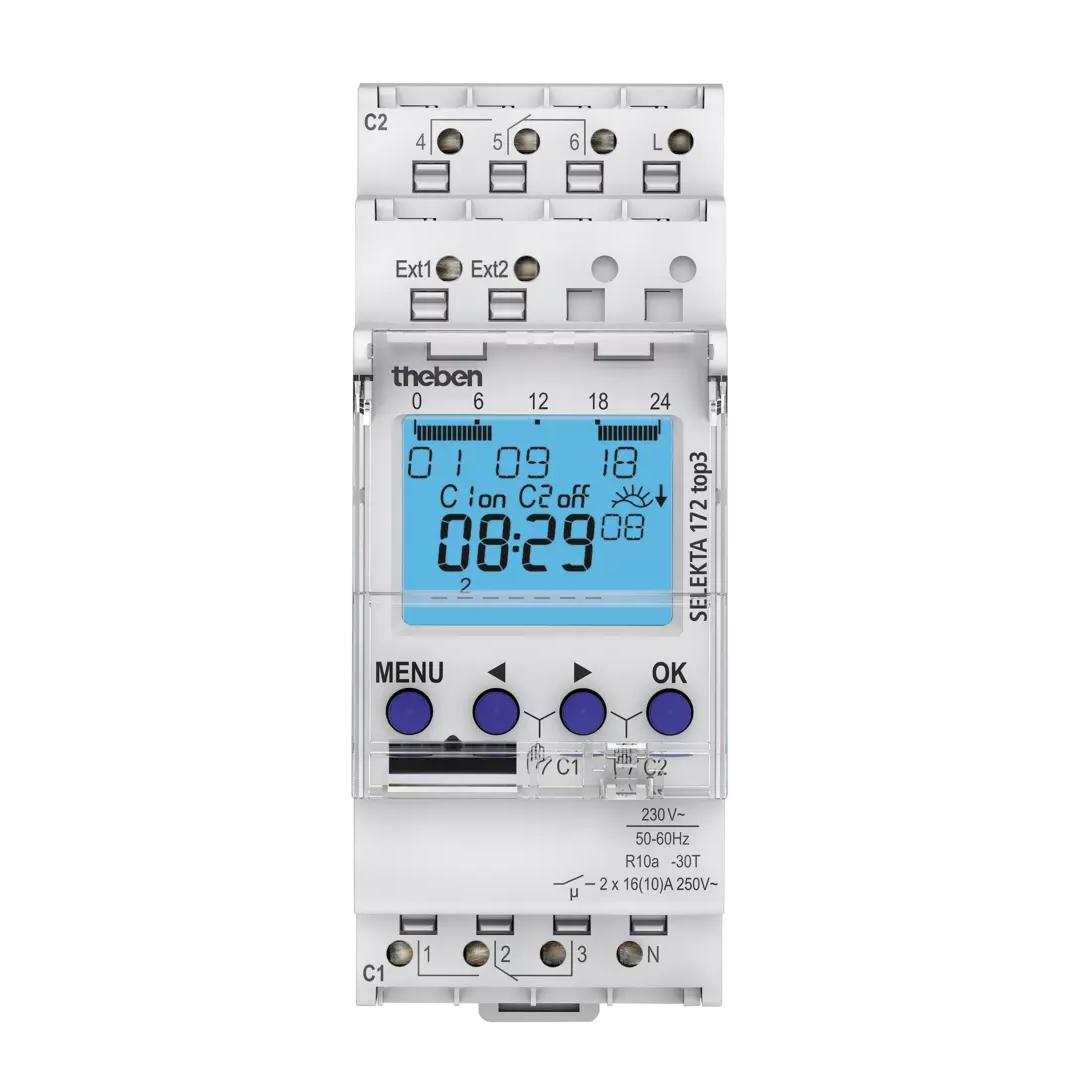

Theben Selekta 172 Top3 Astro Time Switch 2 Channels Pulse Reg/Din Rail/Top-Hat Rail Push Button/Switch 3 Twilight Ranges

Description

Theben Selekta 172 Top3 Astro Time Switch 2 Channels Pulse Reg/Din Rail/Top-Hat Rail Push Button/Switch 3 Twilight Ranges

Theben 1720130

  • Digital 2-channel astro time switch for DIN rail mounting
  • Weekly and astronomical programs for flexible, time- and light-dependent control
  • Programmable via app with optional Bluetooth OBELISK top3 for convenient and tamper-proof setup
  • Astro function with location input via coordinates or city list
  • Advanced functions including astro pulse, two external inputs, and three special programs
  • High switching capacity with up to 16 A at 250 V AC, cos ? = 1
  • Phase-independent switching output with 1-minute shortest switching time
  • Low standby consumption and integrated power reserve for reliable operation
  • DuoFix plug-in terminals for efficient installation

Theben Selekta 172 Top3 is a powerful digital astro time switch designed for professional lighting and automation applications. It combines weekly and astronomical switching programs in a compact DIN rail format, enabling precise and reliable control based on time, twilight, and location. With intuitive app-based programming via the optional Bluetooth OBELISK top3, the device supports efficient commissioning while helping to ensure secure and tamper-proof settings. Its two channels, advanced switching functions, and robust performance make it well suited for demanding commercial and technical installations.

.

Operating voltage 230 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~0.4 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Switching output Phase-independent
Program Weekly program; Astronomical program
Program functions ON-OFF
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 10 A
Shortest switching times 1 min
Time accuracy at 25 °C typical ± 0,25 s/day (quartz)

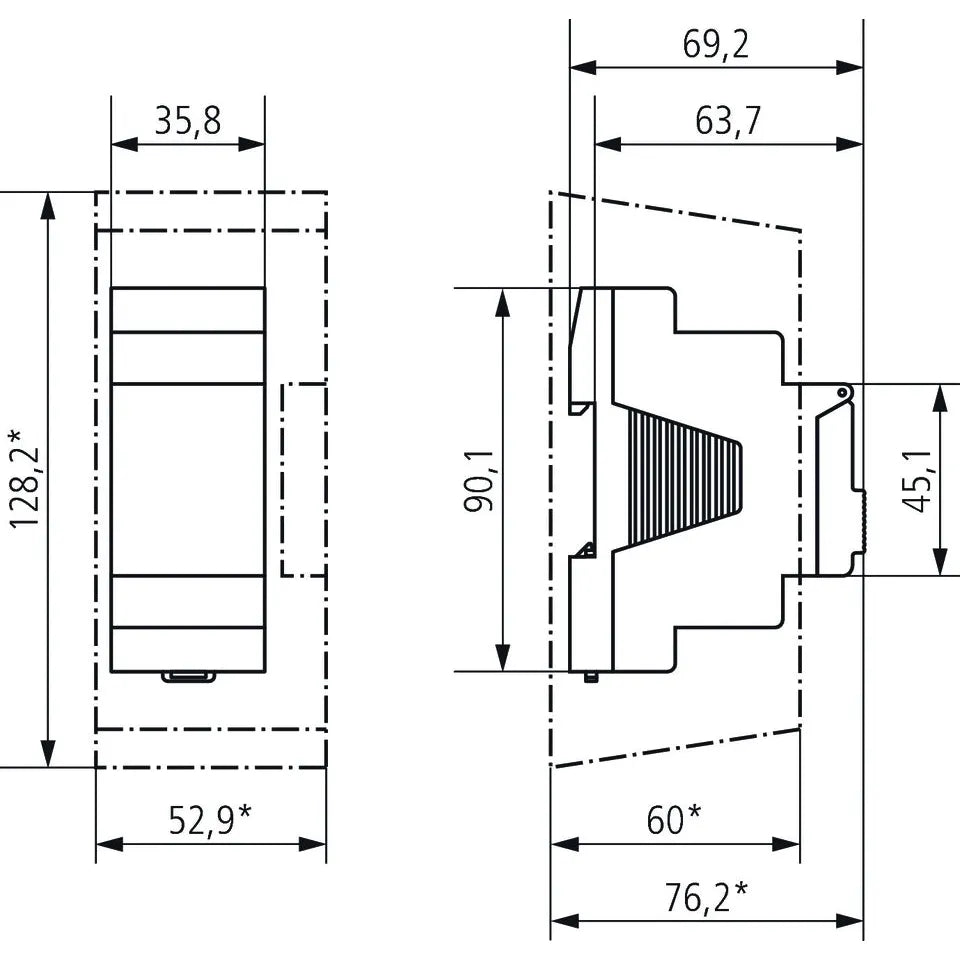

Length 69 mm
Width 35 mm
Height 90 mm
Net weight 134 g

Read more

Theben Selekta 172 Top3 Astro Time Switch 2 Channels Pulse Reg/Din Rail/Top-Hat Rail Push Button/Switch 3 Twilight Ranges

Product form

SKU: 1720130

Theben Selekta 172 Top3 Astro Time Switch 2 Channels Pulse Reg/Din Rail/Top-Hat Rail Push Button/Switch 3 Twilight Ranges Theben 1720130... Read more

£240.13 ex VAT £288.16 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 - 60 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Switching output Phase-independent
    Program Weekly program; Astronomical program
    Program functions ON-OFF
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 10 A
    Shortest switching times 1 min
    Time accuracy at 25 °C typical ± 0,25 s/day (quartz)
    Length 69 mm
    Width 35 mm
    Height 90 mm
    Net weight 134 g
