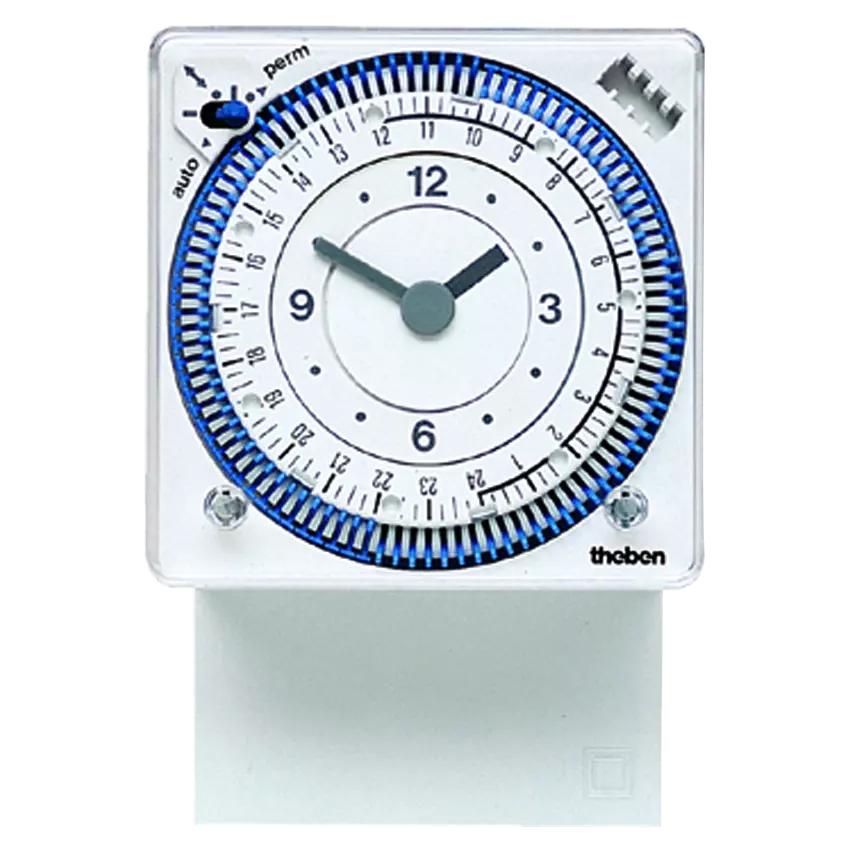

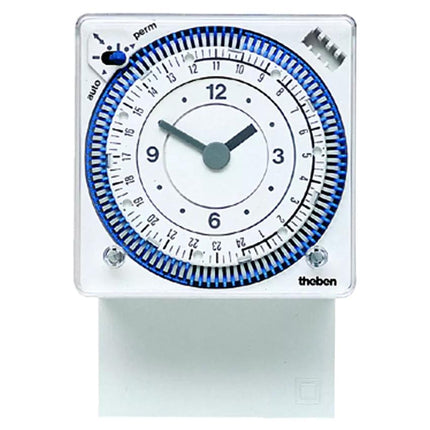

Theben SYN 169 S Analogue Time Switch 1 Channel Plug-in Socket Daily Program DIN Rail/Top-Hat Rail/REG Mechanical

Description

Theben SYN 169 S Analogue Time Switch 1 Channel Plug-in Socket Daily Program DIN Rail/Top-Hat Rail/REG Mechanical

Theben 1690801

  • Operating voltage: 230 V AC, 50 Hz
  • Daily program with 24-hour switching cycle
  • Shortest switching time: 15 minutes
  • Synchronous motor with mains-synchronised time accuracy
  • Front panel or wall installation with plug-in base mounting
  • Switching capacity up to 20 A at 250 V AC (cos ? = 1)
  • High-temperature resistant, self-extinguishing thermoplastic housing
  • Protection class II and IP20 protection rating

The Theben SYN 169 S is a reliable analogue time switch designed for simple and efficient control of recurring switching operations. Its practical daily program, robust construction, and straightforward segment-based programming make it well suited for standard automation tasks in commercial and technical installations. With secure front panel mounting and dependable mains-synchronised operation, it offers a cost-effective solution for consistent time-based switching.

.

Operating voltage 230 V AC
Frequency 50 Hz
Installation type Front panel installation / wall installation
Drive Synchronous motor
Program Daily program
Switching capacity at 250 V AC, cos ? = 1 20 A
Switching capacity at 250 V AC, cos ? = 0,6 2 A
Shortest switching times 15 min
Time accuracy at 25 °C Synchronised with mains
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection IP 20
Protection class II according to EN 60 730-1
Ambient temperature -10°C ... 55°C
Length 69 mm
Width 72 mm
Height 104 mm
Net weight 175 g

Read more

Theben SYN 169 S Analogue Time Switch 1 Channel Plug-in Socket Daily Program DIN Rail/Top-Hat Rail/REG Mechanical

Product form

SKU: 1690801

Theben SYN 169 S Analogue Time Switch 1 Channel Plug-in Socket Daily Program DIN Rail/Top-Hat Rail/REG Mechanical Theben 1690801 Operating... Read more

£83.20 ex VAT £99.84 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type Front panel installation / wall installation
    Drive Synchronous motor
    Program Daily program
    Switching capacity at 250 V AC, cos ? = 1 20 A
    Switching capacity at 250 V AC, cos ? = 0,6 2 A
    Shortest switching times 15 min
    Time accuracy at 25 °C Synchronised with mains
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Type of protection IP 20
    Protection class II according to EN 60 730-1
    Ambient temperature -10°C ... 55°C
    Length 69 mm
    Width 72 mm
    Height 104 mm
    Net weight 175 g
      Downloads

    Description

    Theben SYN 169 S Analogue Time Switch 1 Channel Plug-in Socket Daily Program DIN Rail/Top-Hat Rail/REG Mechanical

    Theben 1690801

    • Operating voltage: 230 V AC, 50 Hz
    • Daily program with 24-hour switching cycle
    • Shortest switching time: 15 minutes
    • Synchronous motor with mains-synchronised time accuracy
    • Front panel or wall installation with plug-in base mounting
    • Switching capacity up to 20 A at 250 V AC (cos ? = 1)
    • High-temperature resistant, self-extinguishing thermoplastic housing
    • Protection class II and IP20 protection rating

    The Theben SYN 169 S is a reliable analogue time switch designed for simple and efficient control of recurring switching operations. Its practical daily program, robust construction, and straightforward segment-based programming make it well suited for standard automation tasks in commercial and technical installations. With secure front panel mounting and dependable mains-synchronised operation, it offers a cost-effective solution for consistent time-based switching.

    .

    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type Front panel installation / wall installation
    Drive Synchronous motor
    Program Daily program
    Switching capacity at 250 V AC, cos ? = 1 20 A
    Switching capacity at 250 V AC, cos ? = 0,6 2 A
    Shortest switching times 15 min
    Time accuracy at 25 °C Synchronised with mains
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Type of protection IP 20
    Protection class II according to EN 60 730-1
    Ambient temperature -10°C ... 55°C
    Length 69 mm
    Width 72 mm
    Height 104 mm
    Net weight 175 g
