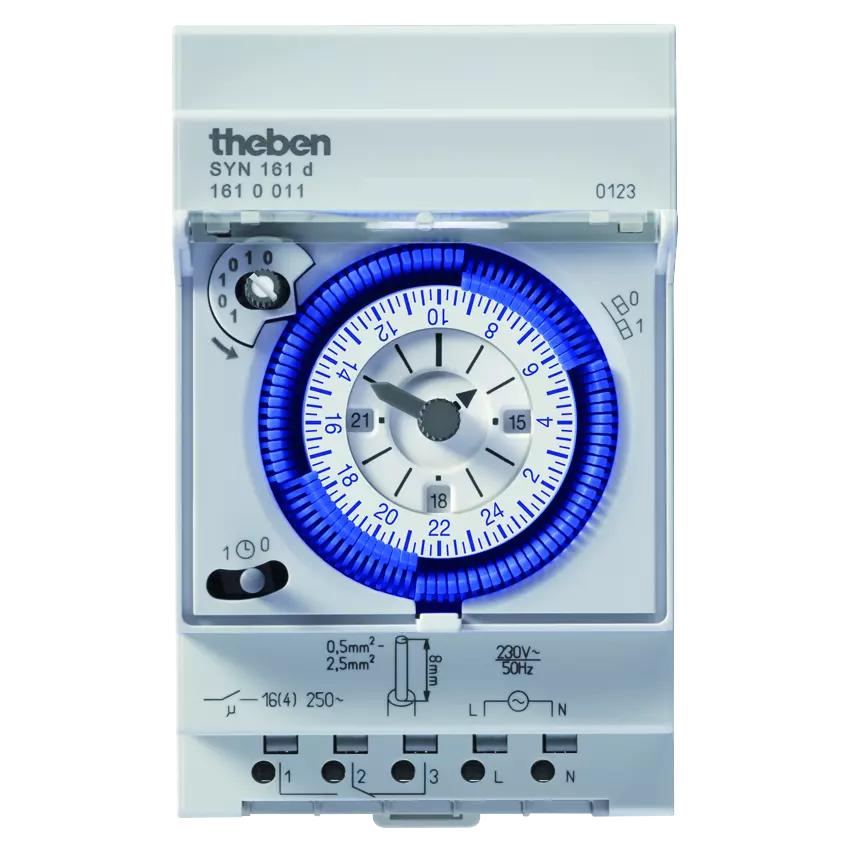

Theben SYN 161 D 3 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

Description

Theben SYN 161 D 3 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

Theben 1610011

  • 1-channel analogue time switch for DIN rail installation
  • Daily program with 96 switching segments in 15-minute intervals
  • Synchronous motor with mains-synchronised time accuracy
  • Simple summer/winter time correction
  • Manual override with continuous ON, AUTO, and continuous OFF positions
  • Suitable for lighting, ventilation, and automation applications
  • Robust housing made from high-temperature resistant, self-extinguishing thermoplastic
  • DuoFix spring terminals for fast and reliable installation

Theben SYN 161 D is a dependable analogue time switch designed for precise and flexible control in residential, commercial, and industrial environments. Its 24-hour daily program and 15-minute switching segments support efficient scheduling of lighting, ventilation, and other automation tasks. Compact DIN rail mounting, straightforward programming, and durable construction make it a practical solution for everyday time control requirements.

.

Operating voltage 230 V AC
Frequency 50 Hz
Installation type DIN rail
Drive Synchronous motor
Program Daily program
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 4 A
Shortest switching times 15 min
Time accuracy at 25 °C Synchronised with mains
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection IP 20
Protection class II according to EN 60 730-1
Ambient temperature -20°C ... 55°C
Length 66 mm
Width 52.5 mm
Height 90 mm
Net weight 110 g

Read more

Theben SYN 161 D 3 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

Product form

SKU: 1610011

Theben SYN 161 D 3 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch Theben 1610011 1-channel analogue... Read more

£56.36 ex VAT £67.63 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type DIN rail
    Drive Synchronous motor
    Program Daily program
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 4 A
    Shortest switching times 15 min
    Time accuracy at 25 °C Synchronised with mains
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Type of protection IP 20
    Protection class II according to EN 60 730-1
    Ambient temperature -20°C ... 55°C
    Length 66 mm
    Width 52.5 mm
    Height 90 mm
    Net weight 110 g
