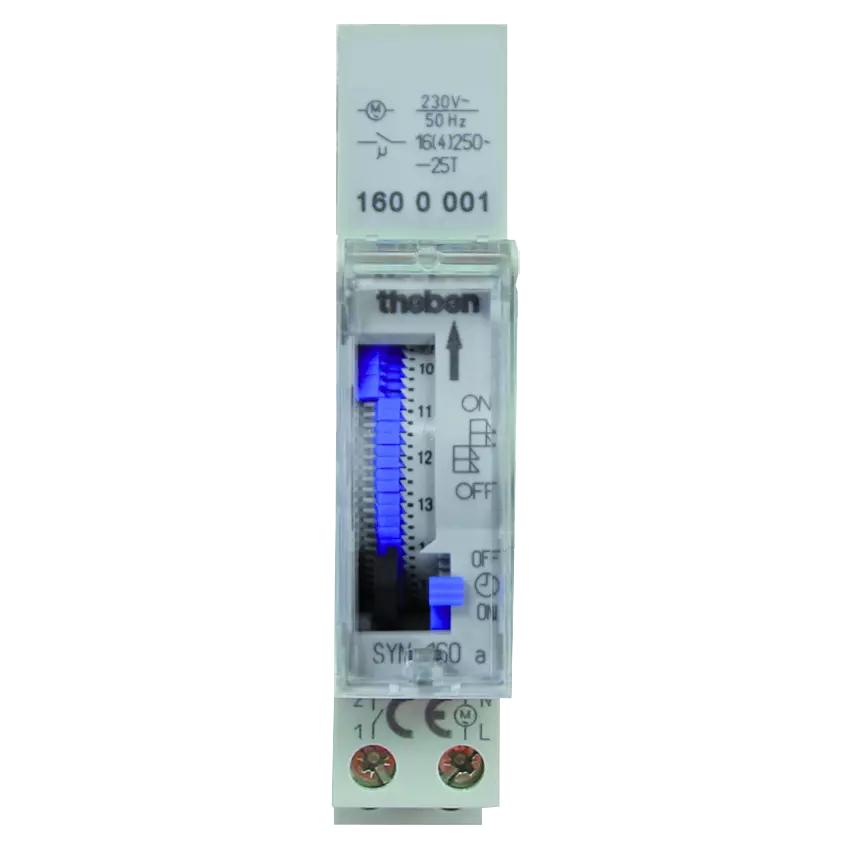

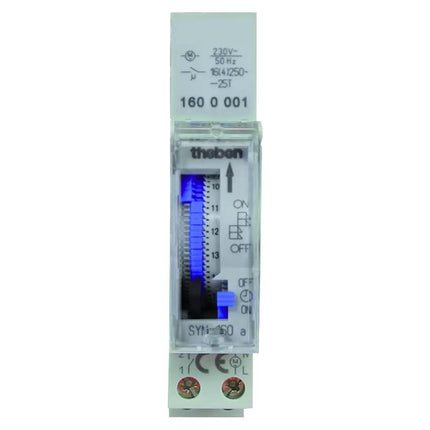

Theben SYN 160 A 1 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

Description

Theben SYN 160 A 1 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

Theben 1600001

  • Compact analog timer for DIN rail mounting
  • 1-module width for space-saving installation
  • 24-hour daily program with switching segments
  • Minimum switching interval of 15 minutes
  • Mains-synchronised operation without power reserve
  • Permanent switch for manual override of the program

This compact analog time switch provides a practical and reliable solution for simple time-based control in electrical installations. Designed for DIN rail mounting, it is ideally suited for distribution panels where space is limited. The 24-hour daily program can be configured via switching segments to support flexible scheduling, while the mains-synchronised clock ensures accurate operation during normal use. A permanent switch function allows the connected load to be switched on or off independently of the programmed settings, offering added convenience in daily operation. Its robust housing, high protection standards, and wide ambient temperature range make it a dependable choice for professional applications.

.

Operating voltage 230 V AC
Frequency 50 Hz
Installation type DIN rail
Drive Synchronous motor
Program Daily program
Switching capacity at 250 V AC, cos ? = 1 16 A
Switching capacity at 250 V AC, cos ? = 0,6 4 A
Shortest switching times 15 min
Time accuracy at 25 °C Synchronised with mains
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Type of protection IP 20
Protection class II according to EN 60 730-1
Ambient temperature -25°C ... 50°C
Length 66 mm
Width 17.5 mm
Height 90 mm
Net weight 71 g

Read more

Theben SYN 160 A 1 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

Product form

SKU: 1600001

Theben SYN 160 A 1 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch Theben 1600001 Compact analog... Read more

£49.16 ex VAT £58.99 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type DIN rail
    Drive Synchronous motor
    Program Daily program
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 4 A
    Shortest switching times 15 min
    Time accuracy at 25 °C Synchronised with mains
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Type of protection IP 20
    Protection class II according to EN 60 730-1
    Ambient temperature -25°C ... 50°C
    Length 66 mm
    Width 17.5 mm
    Height 90 mm
    Net weight 71 g
      Downloads

    Description

    Theben SYN 160 A 1 Module 1 Channel Daily Program DIN Rail Analogue Segment Time Switch

    Theben 1600001

    • Compact analog timer for DIN rail mounting
    • 1-module width for space-saving installation
    • 24-hour daily program with switching segments
    • Minimum switching interval of 15 minutes
    • Mains-synchronised operation without power reserve
    • Permanent switch for manual override of the program

    This compact analog time switch provides a practical and reliable solution for simple time-based control in electrical installations. Designed for DIN rail mounting, it is ideally suited for distribution panels where space is limited. The 24-hour daily program can be configured via switching segments to support flexible scheduling, while the mains-synchronised clock ensures accurate operation during normal use. A permanent switch function allows the connected load to be switched on or off independently of the programmed settings, offering added convenience in daily operation. Its robust housing, high protection standards, and wide ambient temperature range make it a dependable choice for professional applications.

    .

    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type DIN rail
    Drive Synchronous motor
    Program Daily program
    Switching capacity at 250 V AC, cos ? = 1 16 A
    Switching capacity at 250 V AC, cos ? = 0,6 4 A
    Shortest switching times 15 min
    Time accuracy at 25 °C Synchronised with mains
    Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
    Type of protection IP 20
    Protection class II according to EN 60 730-1
    Ambient temperature -25°C ... 50°C
    Length 66 mm
    Width 17.5 mm
    Height 90 mm
    Net weight 71 g

    Read more
