Theben LUNA 121 top3 RC AL Twilight Switch DIN rail Timer RC-compatible

Description

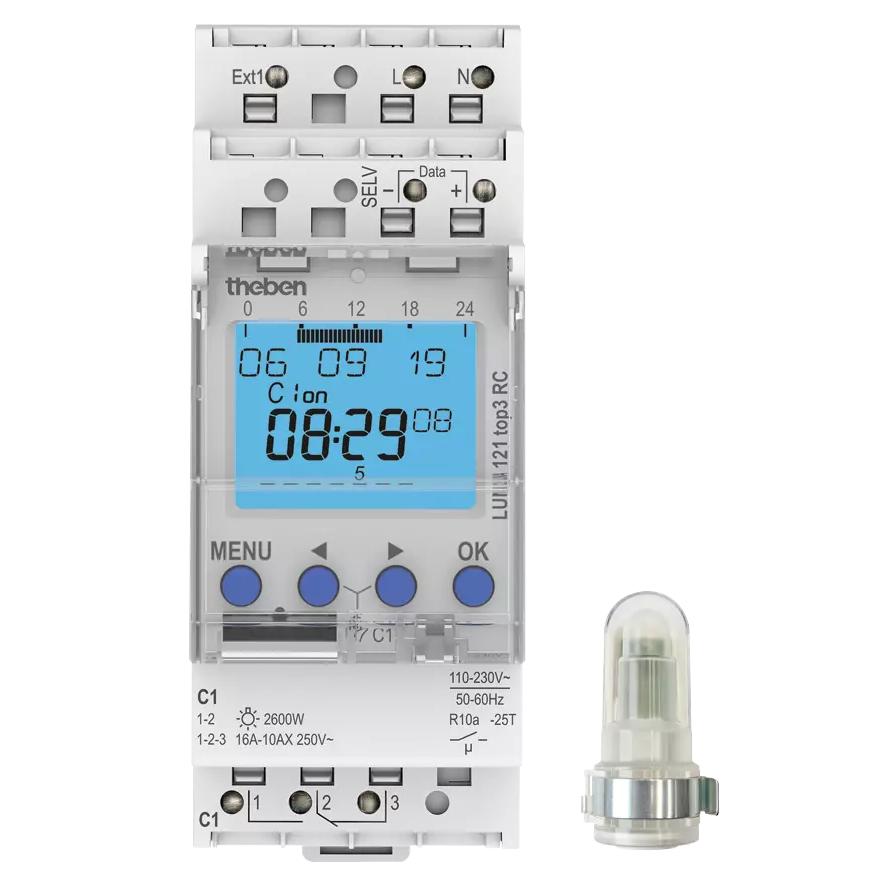

Theben LUNA 121 top3 RC AL Twilight Switch DIN rail Timer RC-compatible

Theben 1210130

  • Digital DIN rail device combining twilight switch and time switch functions
  • One channel with weekly program and three special programs with annual function
  • External top-mounted light sensor included, protection class IP55
  • Bluetooth programming via OBELISK top3 app with tamper-resistant plug-in connection
  • Optional synchronization via external antenna with DCF or GPS signal
  • High switching performance with up to 16 A at 250 V AC
  • Low standby consumption of approximately 0.8 W
  • Installed on DIN rail with DuoFix plug-in terminals and hour counter

Designed for professional lighting control applications, the Theben LUNA 121 top3 RC AL offers a reliable and efficient solution for automated switching based on brightness and time. Its integrated weekly and special programs provide flexible scheduling, while the external light sensor ensures precise twilight-dependent operation. With convenient Bluetooth configuration, robust construction, and strong LED switching capability, this device is well suited for demanding commercial and technical installations.

.

Operating voltage 110 V AC - 230 V AC
Frequency 50 - 60 Hz
Stand-by consumption ~0.8 W
Setting range brightness 1 - 99000 lx
Switch-on delay 0 - 59 min
Switch-off delay 0 - 59 min
Type of contact Changeover contact
Installation type DIN rail
Switching capacity 16 A at 250 V AC, cos ? = 1
10 A at 250 V AC, cos ? = 0.6
Inrush current max. 800 A / 200 µs
Housing and insulation material High-temperature resistant, self-extinguishing thermoplastic
Protection class II, Sensor III
Max. cable length to sensor 100 m
Dimensions 69 x 35 x 90 mm
Net weight 128 g

Read more

Theben LUNA 121 top3 RC AL Twilight Switch DIN rail Timer RC-compatible

Product form

SKU: 1210130

Theben LUNA 121 top3 RC AL Twilight Switch DIN rail Timer RC-compatible Theben 1210130 Digital DIN rail device combining twilight... Read more
