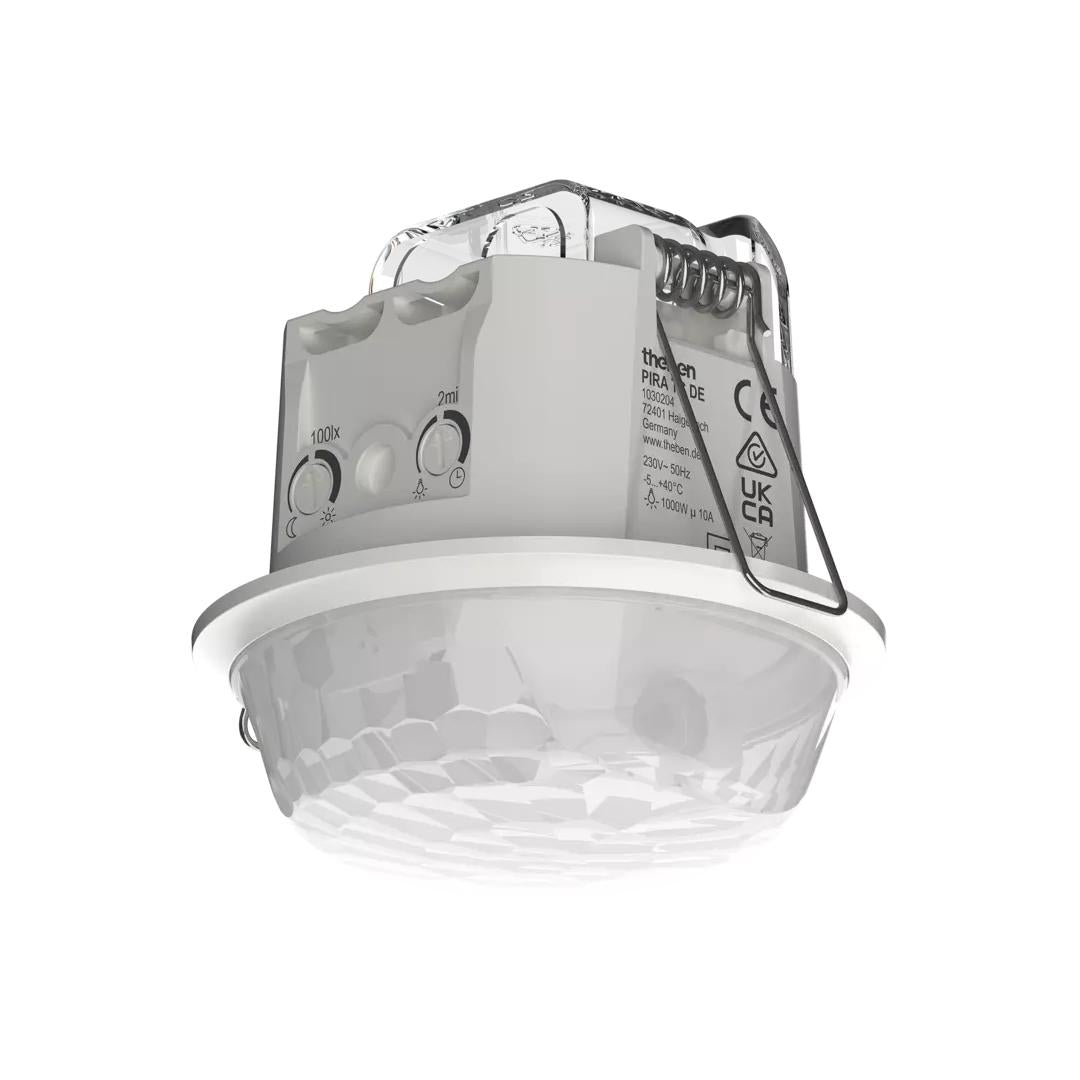

Theben PIRA TC DE Corridor Detector (PIR) for Flush-Mounted Ceiling Installation

Description

Theben PIRA TC DE Corridor Detector (PIR) for Flush-Mounted Ceiling Installation

Theben 1030204

  • Designed for ceiling mounting in long, narrow indoor areas such as corridors and hallways
  • 360° rectangular detection zone optimized for an installation height of 2.5 m
  • Covers up to 75 m² (25 x 3 m)
  • Automatic lighting control based on motion and ambient light levels
  • Mixed light measurement for reliable brightness detection
  • Adjustable brightness threshold from 5 to 1000 lx
  • Adjustable switch-off delay from 5 s to 15 min
  • Factory preset of 100 lx and 2 min for fast commissioning
  • 230 V AC, 50 Hz operating voltage
  • Protection rating IP 21

The Theben corridor detector is a reliable and efficient solution for automated lighting control in indoor passageways and similar applications. Its optimized detection area, integrated light measurement, and simple on-device adjustment make it ideally suited for professional building automation. With factory settings that support immediate use after installation, this sensor delivers convenience, energy efficiency, and dependable performance in daily operation.

.

Operating voltage 230 V AC
Frequency 50 Hz
Installation type Ceiling mounting
Switching output Light
Light measurement Mixed light measurement
Setting range brightness 5 - 1000 lx
Light switch-off delay 5 s - 15 min
Detection range 75 m² (25 x 3 m)
Detection angle 360°
Type of protection IP 21
Dimensions (L x W x H) 80 x 80 x 78 mm
Net weight 73 g

Read more

Theben PIRA TC DE Corridor Detector (PIR) for Flush-Mounted Ceiling Installation

Product form

SKU: 1030204

Theben PIRA TC DE Corridor Detector (PIR) for Flush-Mounted Ceiling Installation Theben 1030204 Designed for ceiling mounting in long, narrow... Read more

£95.40 ex VAT £114.48 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type Ceiling mounting
    Switching output Light
    Light measurement Mixed light measurement
    Setting range brightness 5 - 1000 lx
    Light switch-off delay 5 s - 15 min
    Detection range 75 m² (25 x 3 m)
    Detection angle 360°
    Type of protection IP 21
    Dimensions (L x W x H) 80 x 80 x 78 mm
    Net weight 73 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben PIRA TC DE Corridor Detector (PIR) for Flush-Mounted Ceiling Installation

    Theben 1030204

    • Designed for ceiling mounting in long, narrow indoor areas such as corridors and hallways
    • 360° rectangular detection zone optimized for an installation height of 2.5 m
    • Covers up to 75 m² (25 x 3 m)
    • Automatic lighting control based on motion and ambient light levels
    • Mixed light measurement for reliable brightness detection
    • Adjustable brightness threshold from 5 to 1000 lx
    • Adjustable switch-off delay from 5 s to 15 min
    • Factory preset of 100 lx and 2 min for fast commissioning
    • 230 V AC, 50 Hz operating voltage
    • Protection rating IP 21

    The Theben corridor detector is a reliable and efficient solution for automated lighting control in indoor passageways and similar applications. Its optimized detection area, integrated light measurement, and simple on-device adjustment make it ideally suited for professional building automation. With factory settings that support immediate use after installation, this sensor delivers convenience, energy efficiency, and dependable performance in daily operation.

    .

    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type Ceiling mounting
    Switching output Light
    Light measurement Mixed light measurement
    Setting range brightness 5 - 1000 lx
    Light switch-off delay 5 s - 15 min
    Detection range 75 m² (25 x 3 m)
    Detection angle 360°
    Type of protection IP 21
    Dimensions (L x W x H) 80 x 80 x 78 mm
    Net weight 73 g

    Read more
