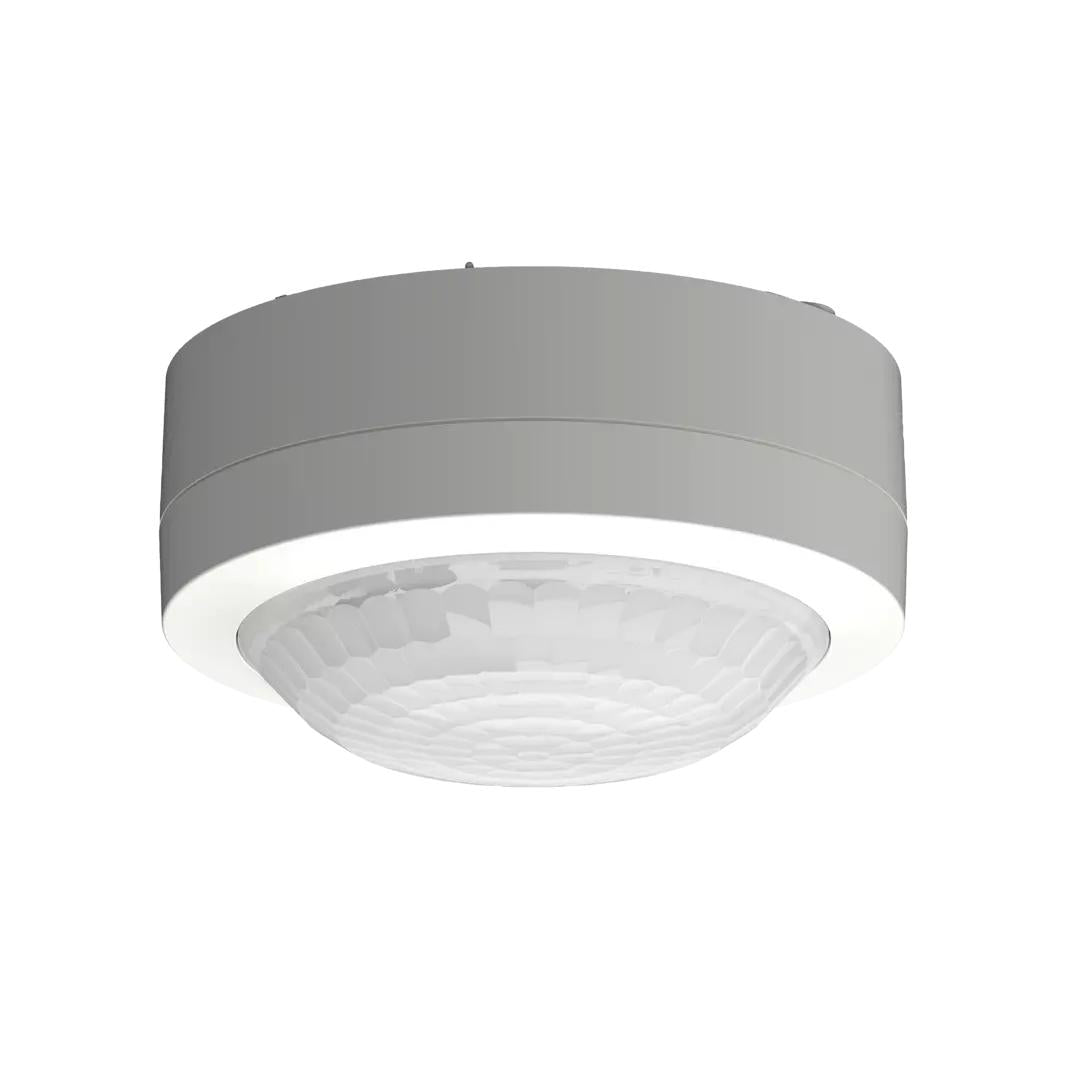

Theben PIRA T8 AP Motion Detector for Surface-Mounted Ceiling Installation

Description

Theben PIRA T8 AP Motion Detector for Surface-Mounted Ceiling Installation

Theben 1030203

  • Fully automatic motion- and brightness-dependent lighting control
  • Surface-mounted ceiling installation for fast and easy indoor mounting
  • 360° detection angle with a coverage area of 50 m²
  • Reliable mixed light measurement for precise ambient light evaluation
  • Adjustable brightness threshold from 5 to 1000 lx
  • Adjustable light switch-off delay from 5 s to 15 min
  • Ready for immediate use thanks to factory preset settings
  • Compact housing with IP 21 protection rating

This surface-mounted motion detector offers a practical and efficient solution for automated indoor lighting control. Designed for ceiling installation, it combines motion detection and brightness evaluation to switch lighting precisely when needed. With a 360° detection range and a diameter of 8 meters at an installation height of 2.5 meters, it provides dependable coverage for a wide range of interior applications. The integrated 230 V relay output controls one lighting channel, while potentiometer-based adjustments make commissioning straightforward. Its factory preset configuration supports quick installation and immediate operation, helping reduce setup time and improve project efficiency.

.

Operating voltage 230 V AC
Frequency 50 Hz
Installation type Ceiling installation, surface mounted
Switching output Light
Light measurement Mixed light measurement
Setting range brightness 5 - 1000 lx
Light switch-off delay 5 s - 15 min
Detection range 50 m² (ø 8 m)
Detection angle 360°
Type of protection IP 21
Length 90 mm
Width 90 mm
Height 47 mm
Net weight 89 g

Read more

Theben PIRA T8 AP Motion Detector for Surface-Mounted Ceiling Installation

Product form

SKU: 1030203

Theben PIRA T8 AP Motion Detector for Surface-Mounted Ceiling Installation Theben 1030203 Fully automatic motion- and brightness-dependent lighting control Surface-mounted... Read more

£70.90 ex VAT £85.08 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type Ceiling installation, surface mounted
    Switching output Light
    Light measurement Mixed light measurement
    Setting range brightness 5 - 1000 lx
    Light switch-off delay 5 s - 15 min
    Detection range 50 m² (ø 8 m)
    Detection angle 360°
    Type of protection IP 21
    Length 90 mm
    Width 90 mm
    Height 47 mm
    Net weight 89 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben PIRA T8 AP Motion Detector for Surface-Mounted Ceiling Installation

    Theben 1030203

    • Fully automatic motion- and brightness-dependent lighting control
    • Surface-mounted ceiling installation for fast and easy indoor mounting
    • 360° detection angle with a coverage area of 50 m²
    • Reliable mixed light measurement for precise ambient light evaluation
    • Adjustable brightness threshold from 5 to 1000 lx
    • Adjustable light switch-off delay from 5 s to 15 min
    • Ready for immediate use thanks to factory preset settings
    • Compact housing with IP 21 protection rating

    This surface-mounted motion detector offers a practical and efficient solution for automated indoor lighting control. Designed for ceiling installation, it combines motion detection and brightness evaluation to switch lighting precisely when needed. With a 360° detection range and a diameter of 8 meters at an installation height of 2.5 meters, it provides dependable coverage for a wide range of interior applications. The integrated 230 V relay output controls one lighting channel, while potentiometer-based adjustments make commissioning straightforward. Its factory preset configuration supports quick installation and immediate operation, helping reduce setup time and improve project efficiency.

    .

    Operating voltage 230 V AC
    Frequency 50 Hz
    Installation type Ceiling installation, surface mounted
    Switching output Light
    Light measurement Mixed light measurement
    Setting range brightness 5 - 1000 lx
    Light switch-off delay 5 s - 15 min
    Detection range 50 m² (ø 8 m)
    Detection angle 360°
    Type of protection IP 21
    Length 90 mm
    Width 90 mm
    Height 47 mm
    Net weight 89 g

    Read more
