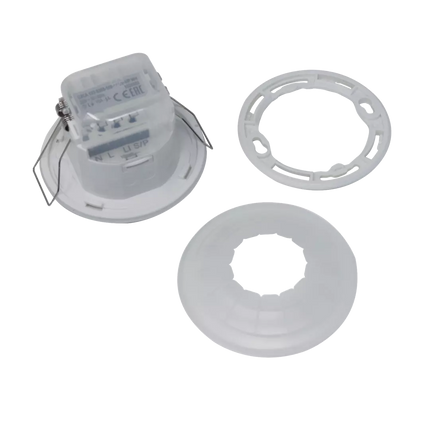

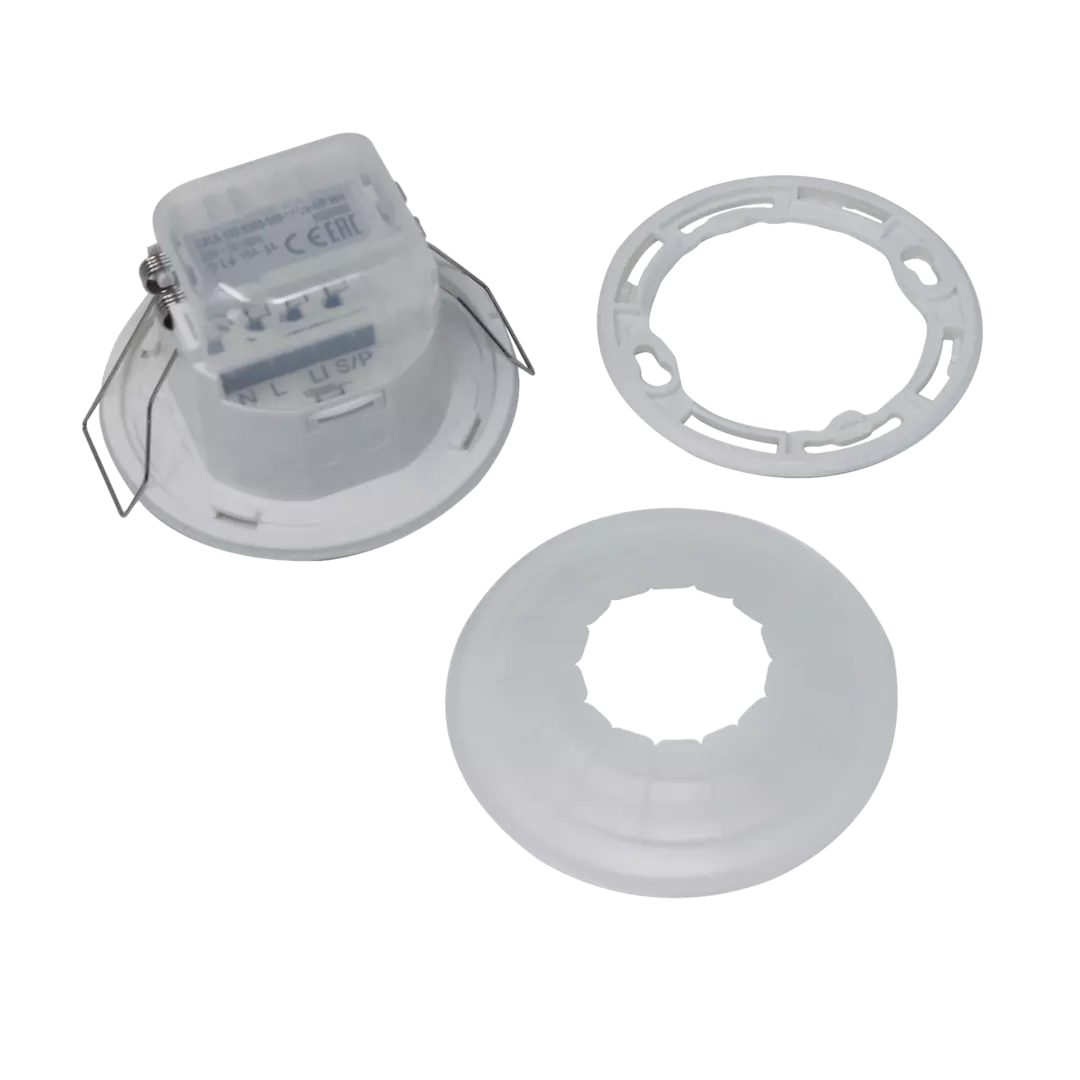

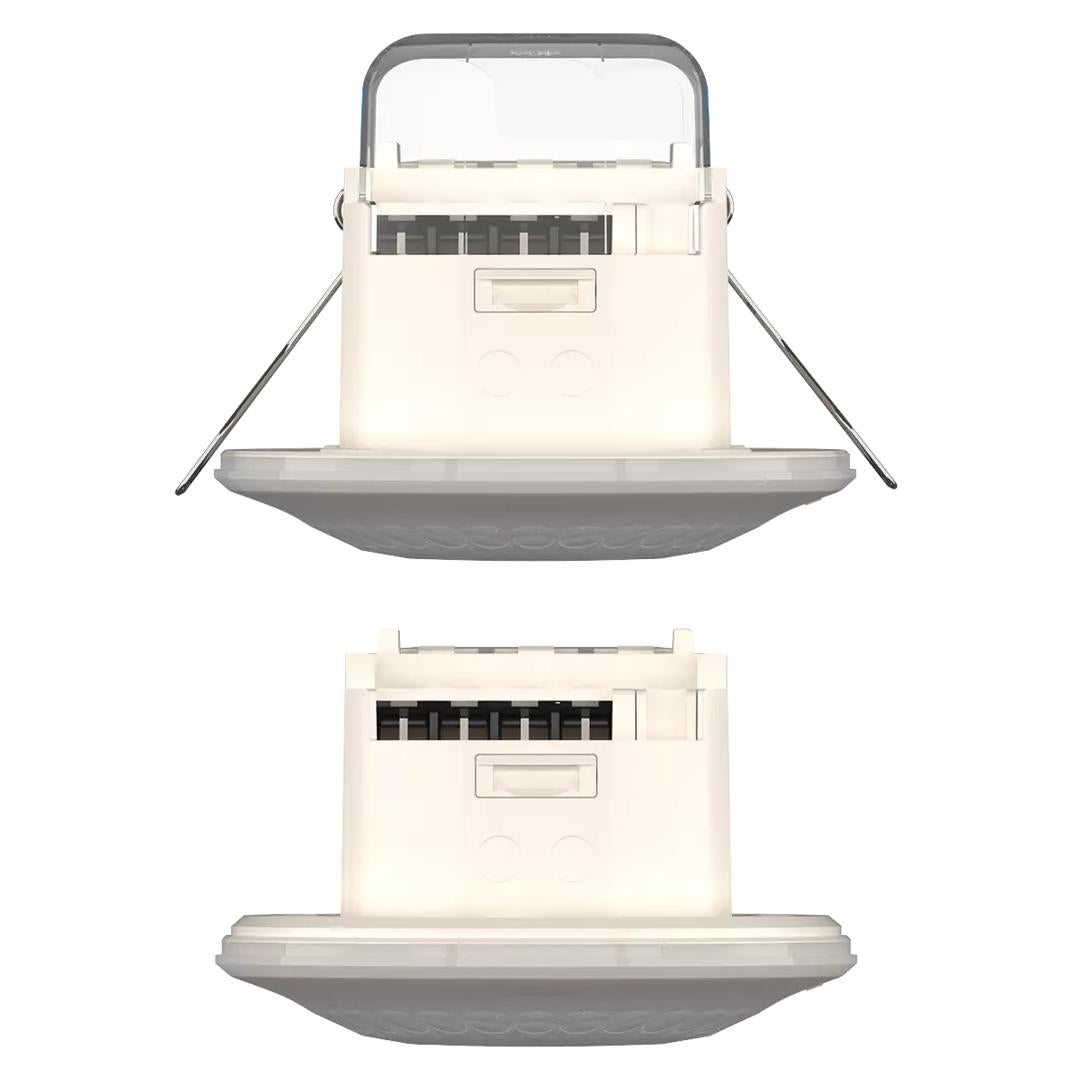

Theben LUXA 103 S360-100-12 DE-UP WH Presence Detector (PIR) Flush-Mount/Ceiling Installation White

Description

Theben LUXA 103 S360-100-12 DE-UP WH Presence Detector (PIR) Flush-Mount/Ceiling Installation White

Theben 1030052

  • Passive infrared presence detector for single lighting channel control
  • 360° circular detection range up to 12 m diameter at 3 m mounting height
  • Suitable for flush-mounted or ceiling installation
  • IP54 protection when fitted for wet rooms and protected outdoor areas
  • Optimized for LED loads up to 400 W
  • Semi-automatic and fully automatic operating modes
  • Integrated push button input for flexible control
  • Functions include pulse, teach-in, test, and staircase lighting
  • Configuration via remote control
  • Detection area can be limited using cover clips

This Theben presence detector delivers reliable, energy-efficient lighting control for commercial and residential applications. Its flexible ceiling installation, wide 360° detection field, and mixed light measurement ensure accurate presence detection and dependable operation in a broad range of environments. With IP54 protection, low standby consumption, and extensive configuration options, it offers a practical and professional solution for modern lighting automation.

.

Frequency 50 Hz
Installation type Ceiling mounting, flush-mounted
Switching output Light
Light measurement Mixed light measurement
Light switch-off delay 15 s - 30 min
Detection range 113 m² (ø 12 m)
Detection angle 360°
Type of protection IP 54 (when fitted)
Stand-by consumption ca. 0.5 W
Dimensions 80 x 90 x 62 mm
Net weight 49 g

Read more

Theben LUXA 103 S360-100-12 DE-UP WH Presence Detector (PIR) Flush-Mount/Ceiling Installation White

Product form

SKU: 1030052

Theben LUXA 103 S360-100-12 DE-UP WH Presence Detector (PIR) Flush-Mount/Ceiling Installation White Theben 1030052 Passive infrared presence detector for single... Read more

£54.89 ex VAT £65.87 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Frequency 50 Hz
    Installation type Ceiling mounting, flush-mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 15 s - 30 min
    Detection range 113 m² (ø 12 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Stand-by consumption ca. 0.5 W
    Dimensions 80 x 90 x 62 mm
    Net weight 49 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben LUXA 103 S360-100-12 DE-UP WH Presence Detector (PIR) Flush-Mount/Ceiling Installation White

    Theben 1030052

    • Passive infrared presence detector for single lighting channel control
    • 360° circular detection range up to 12 m diameter at 3 m mounting height
    • Suitable for flush-mounted or ceiling installation
    • IP54 protection when fitted for wet rooms and protected outdoor areas
    • Optimized for LED loads up to 400 W
    • Semi-automatic and fully automatic operating modes
    • Integrated push button input for flexible control
    • Functions include pulse, teach-in, test, and staircase lighting
    • Configuration via remote control
    • Detection area can be limited using cover clips

    This Theben presence detector delivers reliable, energy-efficient lighting control for commercial and residential applications. Its flexible ceiling installation, wide 360° detection field, and mixed light measurement ensure accurate presence detection and dependable operation in a broad range of environments. With IP54 protection, low standby consumption, and extensive configuration options, it offers a practical and professional solution for modern lighting automation.

    .

    Frequency 50 Hz
    Installation type Ceiling mounting, flush-mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 15 s - 30 min
    Detection range 113 m² (ø 12 m)
    Detection angle 360°
    Type of protection IP 54 (when fitted)
    Stand-by consumption ca. 0.5 W
    Dimensions 80 x 90 x 62 mm
    Net weight 49 g

    Read more
