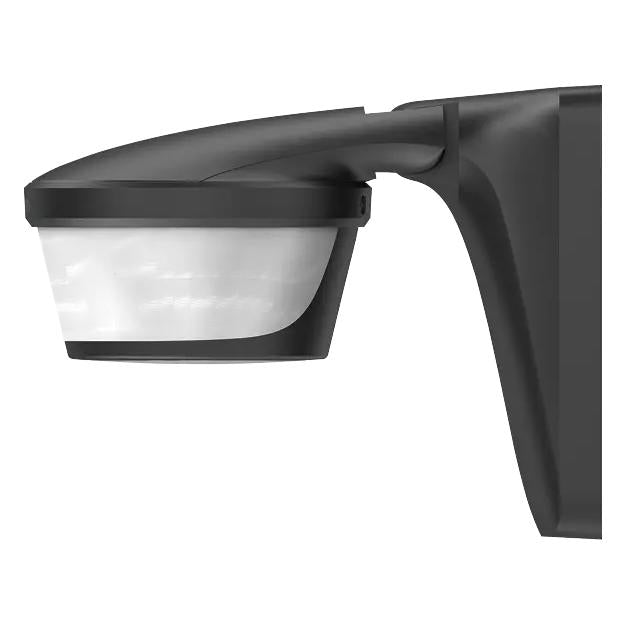

Theben theLuxa P220 BK Motion Detector (PIR) Wall/Ceiling Installation Outdoor IP55 Black Remote-Controlled

Description

Theben theLuxa P220 BK Motion Detector (PIR) Wall/Ceiling Installation Outdoor IP55 Black Remote-Controlled

Theben 1010606

  • Motion detector for wall or ceiling installation
  • Detection range up to ø 32 m with 220° coverage
  • Suitable for outdoor use with IP55 protection
  • Mixed light measurement for reliable automatic light control
  • Adjustable light switch-off delay from 1 s to 20 min
  • Low standby consumption of approximately 0.3 W
  • Remote-controlled setup with teach-in function
  • Rotatable and swiveling sensor head for precise alignment
  • Anti-crawl protection and reduced sensitivity option
  • Zero-cross switching for extended lamp service life

Designed for professional outdoor lighting automation, the Theben theLuxa P220 BK combines high detection performance with flexible installation and convenient remote configuration. Its wide 220° detection angle and long-range coverage make it an excellent choice for larger properties, entrances, and perimeter areas. The integrated mixed light measurement helps ensure efficient switching based on both motion and ambient brightness, while the robust IP55 housing supports dependable operation in demanding environments. With precise sensor positioning, adjustable sensitivity, and a durable switching design, this motion detector delivers dependable performance and long-term value.

.

Frequency 50 Hz
Installation type Wall and ceiling installation
Surface mounted Yes
Switching output Light
Light measurement Mixed light measurement
Light switch-off delay 1 s - 20 min
Detection range ø 32 m
Detection angle 220°
Type of protection IP 55
Stand-by consumption ~0.3 W
Switching capacity 10 A at 230 V AC, cos ? = 1
Switching capacity 10 AX at 230 V AC, cos ? = 0.3
Dimensions 161 x 97 x 127 mm
Net weight 284 g

Read more

Theben theLuxa P220 BK Motion Detector (PIR) Wall/Ceiling Installation Outdoor IP55 Black Remote-Controlled

Product form

SKU: 1010606

Theben theLuxa P220 BK Motion Detector (PIR) Wall/Ceiling Installation Outdoor IP55 Black Remote-Controlled Theben 1010606 Motion detector for wall or... Read more

£91.08 ex VAT £109.30 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Frequency 50 Hz
    Installation type Wall and ceiling installation
    Surface mounted Yes
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 1 s - 20 min
    Detection range ø 32 m
    Detection angle 220°
    Type of protection IP 55
    Stand-by consumption ~0.3 W
    Switching capacity 10 A at 230 V AC, cos ? = 1
    Switching capacity 10 AX at 230 V AC, cos ? = 0.3
    Dimensions 161 x 97 x 127 mm
    Net weight 284 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben theLuxa P220 BK Motion Detector (PIR) Wall/Ceiling Installation Outdoor IP55 Black Remote-Controlled

    Theben 1010606

    • Motion detector for wall or ceiling installation
    • Detection range up to ø 32 m with 220° coverage
    • Suitable for outdoor use with IP55 protection
    • Mixed light measurement for reliable automatic light control
    • Adjustable light switch-off delay from 1 s to 20 min
    • Low standby consumption of approximately 0.3 W
    • Remote-controlled setup with teach-in function
    • Rotatable and swiveling sensor head for precise alignment
    • Anti-crawl protection and reduced sensitivity option
    • Zero-cross switching for extended lamp service life

    Designed for professional outdoor lighting automation, the Theben theLuxa P220 BK combines high detection performance with flexible installation and convenient remote configuration. Its wide 220° detection angle and long-range coverage make it an excellent choice for larger properties, entrances, and perimeter areas. The integrated mixed light measurement helps ensure efficient switching based on both motion and ambient brightness, while the robust IP55 housing supports dependable operation in demanding environments. With precise sensor positioning, adjustable sensitivity, and a durable switching design, this motion detector delivers dependable performance and long-term value.

    .

    Frequency 50 Hz
    Installation type Wall and ceiling installation
    Surface mounted Yes
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 1 s - 20 min
    Detection range ø 32 m
    Detection angle 220°
    Type of protection IP 55
    Stand-by consumption ~0.3 W
    Switching capacity 10 A at 230 V AC, cos ? = 1
    Switching capacity 10 AX at 230 V AC, cos ? = 0.3
    Dimensions 161 x 97 x 127 mm
    Net weight 284 g

    Read more
