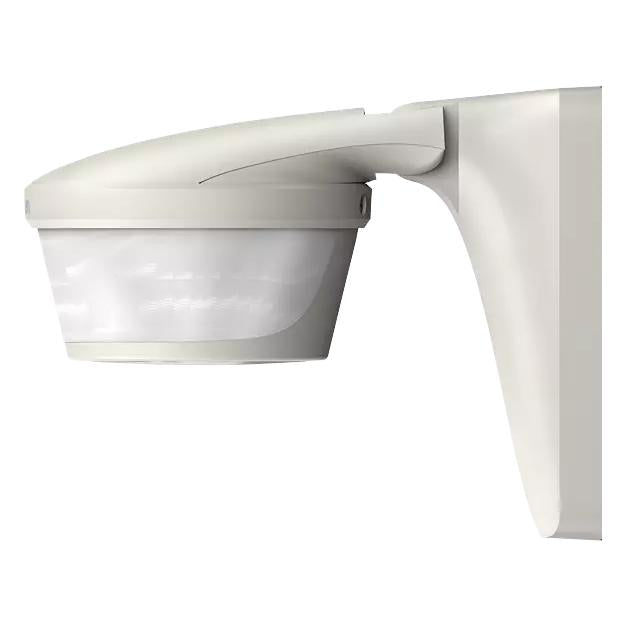

Theben theLuxa P220 WH Motion Detector (PIR) Wall/Ceiling Installation Outdoor IP55 White Remote-Controllable

Description

Theben theLuxa P220 WH Motion Detector (PIR) Wall/Ceiling Installation Outdoor IP55 White Remote-Controllable

Theben 1010605

  • High-performance PIR motion detector for wall and ceiling installation
  • 220° detection angle with up to 16 m range and ø 32 m detection area
  • Suitable for surface mounting and outdoor use with IP55 protection
  • Mixed light measurement with automatic light-based switching
  • Adjustable light switch-off delay from 1 s to 20 min
  • Remote-control configuration for convenient setup and operation
  • Sensor head can be rotated and swiveled for precise coverage alignment
  • Anti-crawl protection and adjustable sensitivity for improved reliability
  • Zero-cross switching helps protect connected lamps
  • Includes spacers and mounting hardware

The theLuxa P220 WH is a robust and versatile motion detector designed for demanding indoor and outdoor applications. Its wide detection field, flexible mounting options, and remote-adjustable settings make it an efficient solution for reliable lighting control in commercial and residential environments. Built with mixed light sensing and advanced motion detection, it supports energy-efficient operation while helping to reduce false activations.

.

Frequency 50 Hz
Installation type Wall and ceiling installation
Mounting Surface mounted
Switching output Light
Light measurement Mixed light measurement
Light switch-off delay 1 s - 20 min
Detection range ø 32 m
Detection angle 220°
Type of protection IP 55
Stand-by consumption ~0.3 W
Switching capacity 10 A at 230 V AC, cos ? = 1 / 10 AX at 230 V AC, cos ? = 0.3
Dimensions 161 x 97 x 127 mm
Net weight 289 g

Read more

Theben theLuxa P220 WH Motion Detector (PIR) Wall/Ceiling Installation Outdoor IP55 White Remote-Controllable

Product form

SKU: 1010605

Theben theLuxa P220 WH Motion Detector (PIR) Wall/Ceiling Installation Outdoor IP55 White Remote-Controllable Theben 1010605 High-performance PIR motion detector for... Read more

£91.08 ex VAT £109.30 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Frequency 50 Hz
    Installation type Wall and ceiling installation
    Mounting Surface mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 1 s - 20 min
    Detection range ø 32 m
    Detection angle 220°
    Type of protection IP 55
    Stand-by consumption ~0.3 W
    Switching capacity 10 A at 230 V AC, cos ? = 1 / 10 AX at 230 V AC, cos ? = 0.3
    Dimensions 161 x 97 x 127 mm
    Net weight 289 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben theLuxa P220 WH Motion Detector (PIR) Wall/Ceiling Installation Outdoor IP55 White Remote-Controllable

    Theben 1010605

    • High-performance PIR motion detector for wall and ceiling installation
    • 220° detection angle with up to 16 m range and ø 32 m detection area
    • Suitable for surface mounting and outdoor use with IP55 protection
    • Mixed light measurement with automatic light-based switching
    • Adjustable light switch-off delay from 1 s to 20 min
    • Remote-control configuration for convenient setup and operation
    • Sensor head can be rotated and swiveled for precise coverage alignment
    • Anti-crawl protection and adjustable sensitivity for improved reliability
    • Zero-cross switching helps protect connected lamps
    • Includes spacers and mounting hardware

    The theLuxa P220 WH is a robust and versatile motion detector designed for demanding indoor and outdoor applications. Its wide detection field, flexible mounting options, and remote-adjustable settings make it an efficient solution for reliable lighting control in commercial and residential environments. Built with mixed light sensing and advanced motion detection, it supports energy-efficient operation while helping to reduce false activations.

    .

    Frequency 50 Hz
    Installation type Wall and ceiling installation
    Mounting Surface mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 1 s - 20 min
    Detection range ø 32 m
    Detection angle 220°
    Type of protection IP 55
    Stand-by consumption ~0.3 W
    Switching capacity 10 A at 230 V AC, cos ? = 1 / 10 AX at 230 V AC, cos ? = 0.3
    Dimensions 161 x 97 x 127 mm
    Net weight 289 g

    Read more
