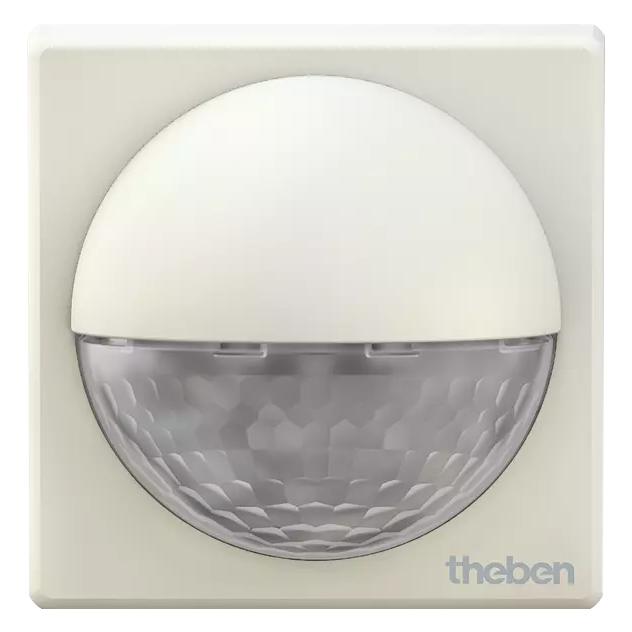

Theben theLuxa R180 WH Motion Detector (PIR) Outdoor Wall Mount IP55 White

Description

Theben theLuxa R180 WH Motion Detector (PIR) Outdoor Wall Mount IP55 White

Theben 1010200

  • Automatic, demand-based lighting control for outdoor applications
  • Wall-mounted, surface-mounted installation
  • 180° detection angle with up to 12 m detection range
  • Mixed light measurement for precise ambient light evaluation
  • Adjustable light switch-off delay from 2 s to 30 min
  • High protection rating: IP55
  • Robust, tamper-resistant housing with locked front cover
  • Teach-in function for simple brightness threshold setup
  • Zero-cross switching to protect connected lamps
  • Low stand-by consumption of less than 0.5 W

Theben theLuxa R180 WH is a reliable outdoor motion detector designed for professional wall installation. It enables efficient, automatic light control based on motion and ambient brightness, helping reduce energy consumption while improving convenience and security. The concealed control elements and locked front cover support safe operation and protect against unauthorized adjustment. With its wide detection area, precise light measurement, and durable IP55 housing, this device is well suited for demanding exterior environments.

.

Frequency 50 - 60 Hz
Installation type Wall installation, surface mounted
Switching output Light
Light measurement Mixed light measurement
Light switch-off delay 2 s - 30 min
Detection range 12 m
Detection angle 180°
Type of protection IP 55
Stand-by consumption <0.5 W
Switching capacity 10 A at 230 V AC, cos ? = 1
Dimensions 82 x 82 x 66 mm
Net weight 161 g

Read more

Theben theLuxa R180 WH Motion Detector (PIR) Outdoor Wall Mount IP55 White

Product form

SKU: 1010200

Theben theLuxa R180 WH Motion Detector (PIR) Outdoor Wall Mount IP55 White Theben 1010200 Automatic, demand-based lighting control for outdoor... Read more

£67.83 ex VAT £81.40 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Frequency 50 - 60 Hz
    Installation type Wall installation, surface mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 2 s - 30 min
    Detection range 12 m
    Detection angle 180°
    Type of protection IP 55
    Stand-by consumption <0.5 W
    Switching capacity 10 A at 230 V AC, cos ? = 1
    Dimensions 82 x 82 x 66 mm
    Net weight 161 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben theLuxa R180 WH Motion Detector (PIR) Outdoor Wall Mount IP55 White

    Theben 1010200

    • Automatic, demand-based lighting control for outdoor applications
    • Wall-mounted, surface-mounted installation
    • 180° detection angle with up to 12 m detection range
    • Mixed light measurement for precise ambient light evaluation
    • Adjustable light switch-off delay from 2 s to 30 min
    • High protection rating: IP55
    • Robust, tamper-resistant housing with locked front cover
    • Teach-in function for simple brightness threshold setup
    • Zero-cross switching to protect connected lamps
    • Low stand-by consumption of less than 0.5 W

    Theben theLuxa R180 WH is a reliable outdoor motion detector designed for professional wall installation. It enables efficient, automatic light control based on motion and ambient brightness, helping reduce energy consumption while improving convenience and security. The concealed control elements and locked front cover support safe operation and protect against unauthorized adjustment. With its wide detection area, precise light measurement, and durable IP55 housing, this device is well suited for demanding exterior environments.

    .

    Frequency 50 - 60 Hz
    Installation type Wall installation, surface mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 2 s - 30 min
    Detection range 12 m
    Detection angle 180°
    Type of protection IP 55
    Stand-by consumption <0.5 W
    Switching capacity 10 A at 230 V AC, cos ? = 1
    Dimensions 82 x 82 x 66 mm
    Net weight 161 g

    Read more
