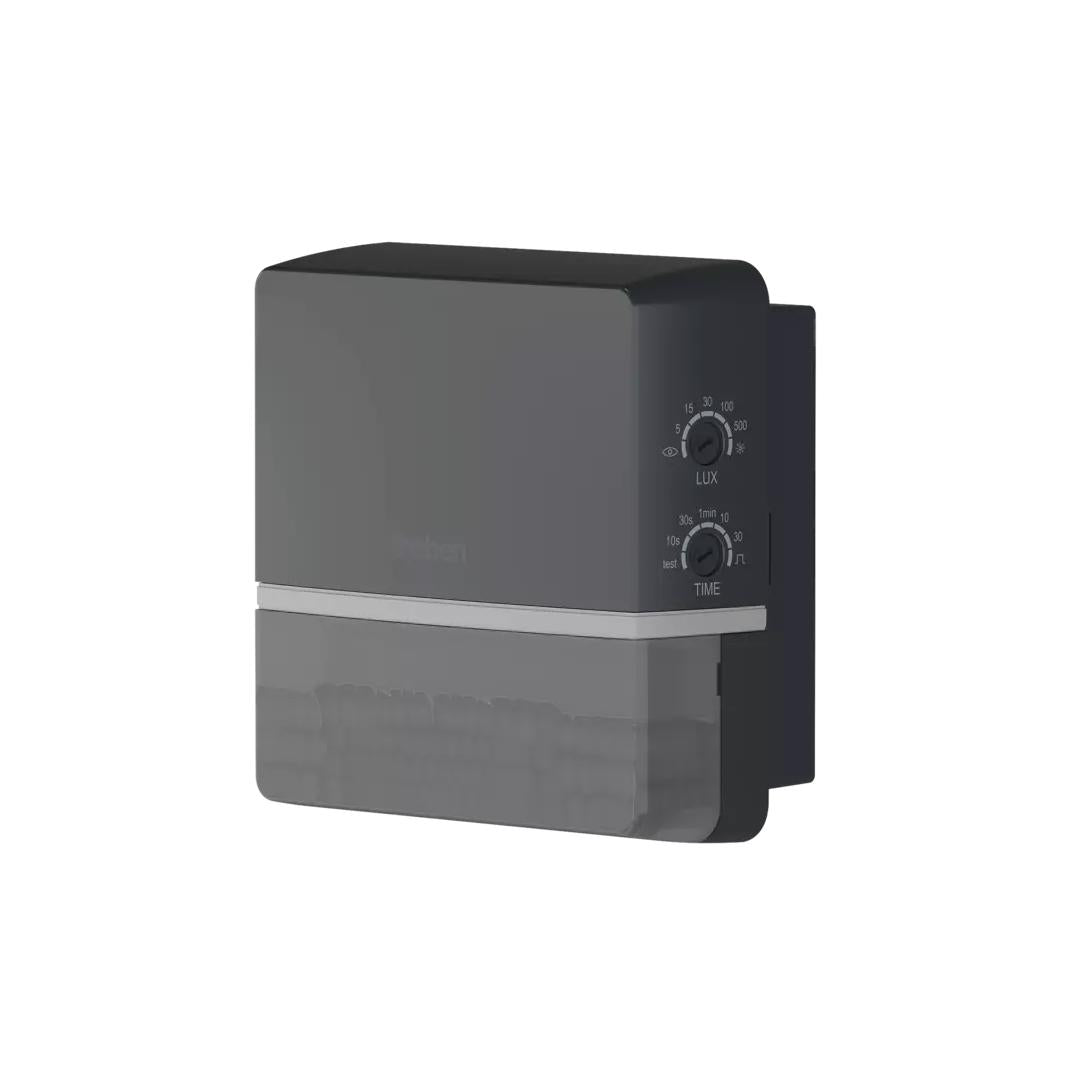

Theben TECTA D180 AN Motion Detector (PIR) for Outdoor Wall Mounting Anthracite

Description

Theben TECTA D180 AN Motion Detector (PIR) for Outdoor Wall Mounting Anthracite

Theben 1010101

  • Passive infrared motion detector for reliable outdoor wall installation
  • 180° detection angle with up to 14 m detection range
  • Light switching output with mixed light measurement
  • Adjustable light switch-off delay from 10 s to 30 min
  • Robust IP55 protection for outdoor applications
  • Low stand-by consumption of less than 0.2 W
  • Simple mechanical potentiometer adjustment for commissioning

The Theben TECTA D180 AN is a compact and unobtrusive motion detector designed for dependable outdoor lighting control. Engineered for wall mounting, it is ideally suited for house entrances, side entrances, basement access areas, carports, and patios where efficient and basic motion detection is required. With its 180° detection field and mixed light measurement, the detector delivers accurate and practical control of lighting in everyday outdoor environments. The integrated anti-creep and Exit-on functions enhance detection performance, while the teach-in and test functions support fast and convenient setup. Its IP55-rated housing ensures durability and reliable operation in demanding exterior conditions. Combining a discreet anthracite design with functional performance, the TECTA D180 AN offers an effective solution for professional outdoor lighting automation.

Frequency 50 Hz
Installation type Wall installation, surface mounted
Switching output Light
Light measurement Mixed light measurement
Light switch-off delay 10 s - 30 min
Detection range 14 m
Detection angle 180°
Type of protection IP 55
Stand-by consumption <0.2 W
Switching capacity at 230 V AC, cos ? = 1
Length 52 mm
Width 95 mm
Height 95 mm
Net weight 185 g

Read more

Theben TECTA D180 AN Motion Detector (PIR) for Outdoor Wall Mounting Anthracite

Product form

SKU: 1010101

Theben TECTA D180 AN Motion Detector (PIR) for Outdoor Wall Mounting Anthracite Theben 1010101 Passive infrared motion detector for reliable... Read more

£65.85 ex VAT £79.02 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Frequency 50 Hz
    Installation type Wall installation, surface mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 10 s - 30 min
    Detection range 14 m
    Detection angle 180°
    Type of protection IP 55
    Stand-by consumption <0.2 W
    Switching capacity at 230 V AC, cos ? = 1
    Length 52 mm
    Width 95 mm
    Height 95 mm
    Net weight 185 g
      Downloads
    Datasheet unavailable for this product at the moment.
