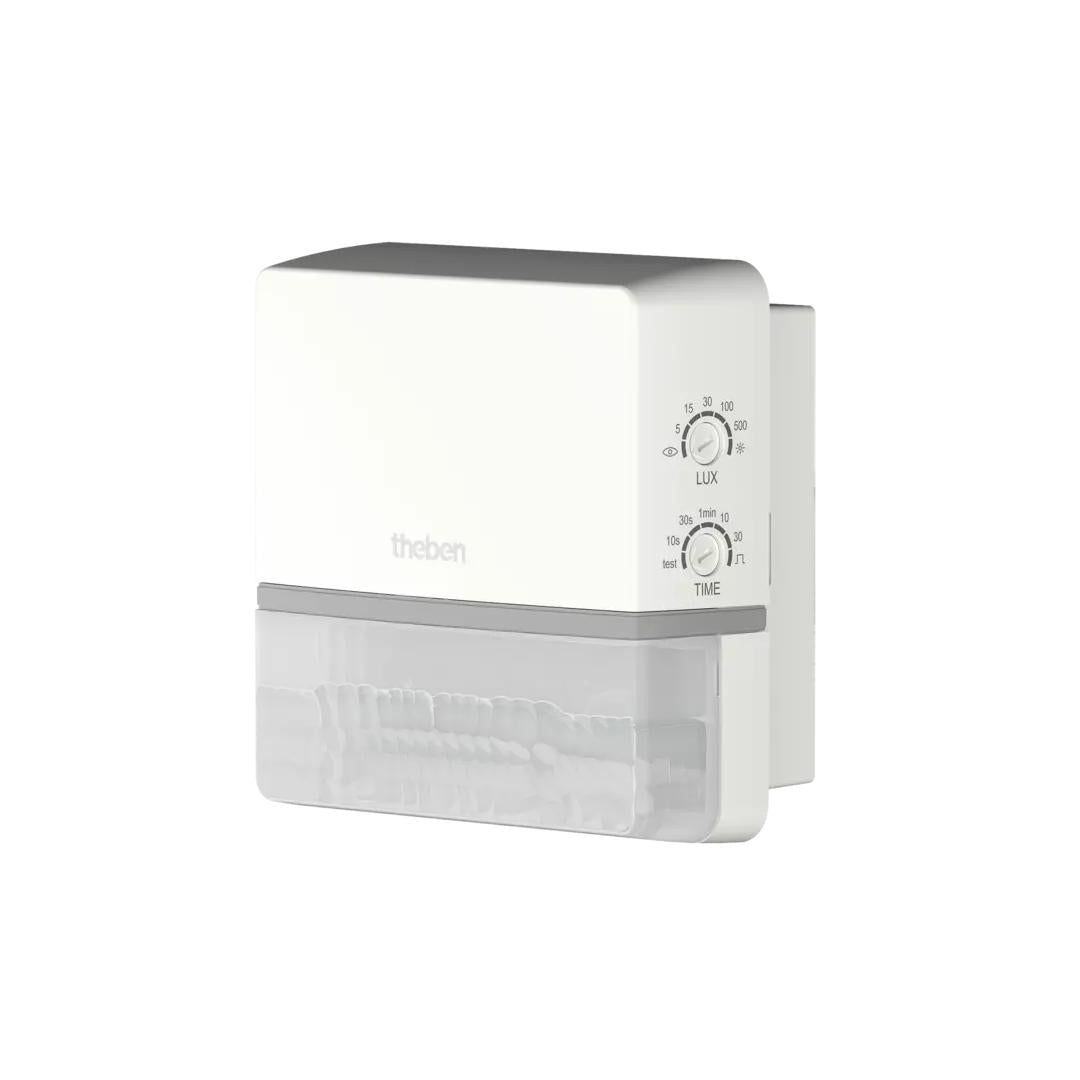

Theben TECTA D180 WH Motion Detector (PIR) for Outdoor Wall Mounting White

Description

Theben TECTA D180 WH Motion Detector (PIR) for Outdoor Wall Mounting White

Theben 1010100

  • Passive infrared motion detector for wall installation
  • Ideal for entrances, side entrances, basement entrances, carports, and patios
  • 180° detection angle with up to 14 m detection range
  • Mixed light measurement for reliable ambient light control
  • Adjustable light switch-off delay from 10 s to 30 min
  • IP55 protection for dependable outdoor use
  • Low stand-by consumption of less than 0.2 W
  • Switching capacity: 10 A at 230 V AC, cos ? = 1
  • Flat, unobtrusive design in white for seamless facade integration

The Theben TECTA D180 WH is a compact outdoor motion detector designed for dependable lighting control in residential and commercial applications. Its discreet wall-mounted design blends elegantly into the building envelope while delivering precise detection for areas such as house entrances, side entrances, carports, and patios. With mixed light measurement, adjustable time settings, and a proven potentiometer-based configuration, commissioning is fast and straightforward. The integrated lighting channel supports efficient control of outdoor illumination, while features such as anti-creep detection, exit-on functionality, and a pulse mode for staircase lighting timers enhance versatility. Built with IP55 protection and certified detection performance, the TECTA D180 WH offers a robust, practical solution for basic motion detection requirements.

.

Frequency 50 Hz
Installation type Wall installation
Mounting type Surface mounted
Switching output Light
Light measurement Mixed light measurement
Light switch-off delay 10 s - 30 min
Detection range 14 m
Detection angle 180°
Type of protection IP 55
Stand-by consumption <0.2 W
Switching capacity 10 A at 230 V AC, cos ? = 1
Length 52 mm
Width 95 mm
Height 95 mm
Net weight 185 g

Read more

Theben TECTA D180 WH Motion Detector (PIR) for Outdoor Wall Mounting White

Product form

SKU: 1010100

Theben TECTA D180 WH Motion Detector (PIR) for Outdoor Wall Mounting White Theben 1010100 Passive infrared motion detector for wall... Read more

£65.85 ex VAT £79.02 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Frequency 50 Hz
    Installation type Wall installation
    Mounting type Surface mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 10 s - 30 min
    Detection range 14 m
    Detection angle 180°
    Type of protection IP 55
    Stand-by consumption <0.2 W
    Switching capacity 10 A at 230 V AC, cos ? = 1
    Length 52 mm
    Width 95 mm
    Height 95 mm
    Net weight 185 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben TECTA D180 WH Motion Detector (PIR) for Outdoor Wall Mounting White

    Theben 1010100

    • Passive infrared motion detector for wall installation
    • Ideal for entrances, side entrances, basement entrances, carports, and patios
    • 180° detection angle with up to 14 m detection range
    • Mixed light measurement for reliable ambient light control
    • Adjustable light switch-off delay from 10 s to 30 min
    • IP55 protection for dependable outdoor use
    • Low stand-by consumption of less than 0.2 W
    • Switching capacity: 10 A at 230 V AC, cos ? = 1
    • Flat, unobtrusive design in white for seamless facade integration

    The Theben TECTA D180 WH is a compact outdoor motion detector designed for dependable lighting control in residential and commercial applications. Its discreet wall-mounted design blends elegantly into the building envelope while delivering precise detection for areas such as house entrances, side entrances, carports, and patios. With mixed light measurement, adjustable time settings, and a proven potentiometer-based configuration, commissioning is fast and straightforward. The integrated lighting channel supports efficient control of outdoor illumination, while features such as anti-creep detection, exit-on functionality, and a pulse mode for staircase lighting timers enhance versatility. Built with IP55 protection and certified detection performance, the TECTA D180 WH offers a robust, practical solution for basic motion detection requirements.

    .

    Frequency 50 Hz
    Installation type Wall installation
    Mounting type Surface mounted
    Switching output Light
    Light measurement Mixed light measurement
    Light switch-off delay 10 s - 30 min
    Detection range 14 m
    Detection angle 180°
    Type of protection IP 55
    Stand-by consumption <0.2 W
    Switching capacity 10 A at 230 V AC, cos ? = 1
    Length 52 mm
    Width 95 mm
    Height 95 mm
    Net weight 185 g

    Read more
