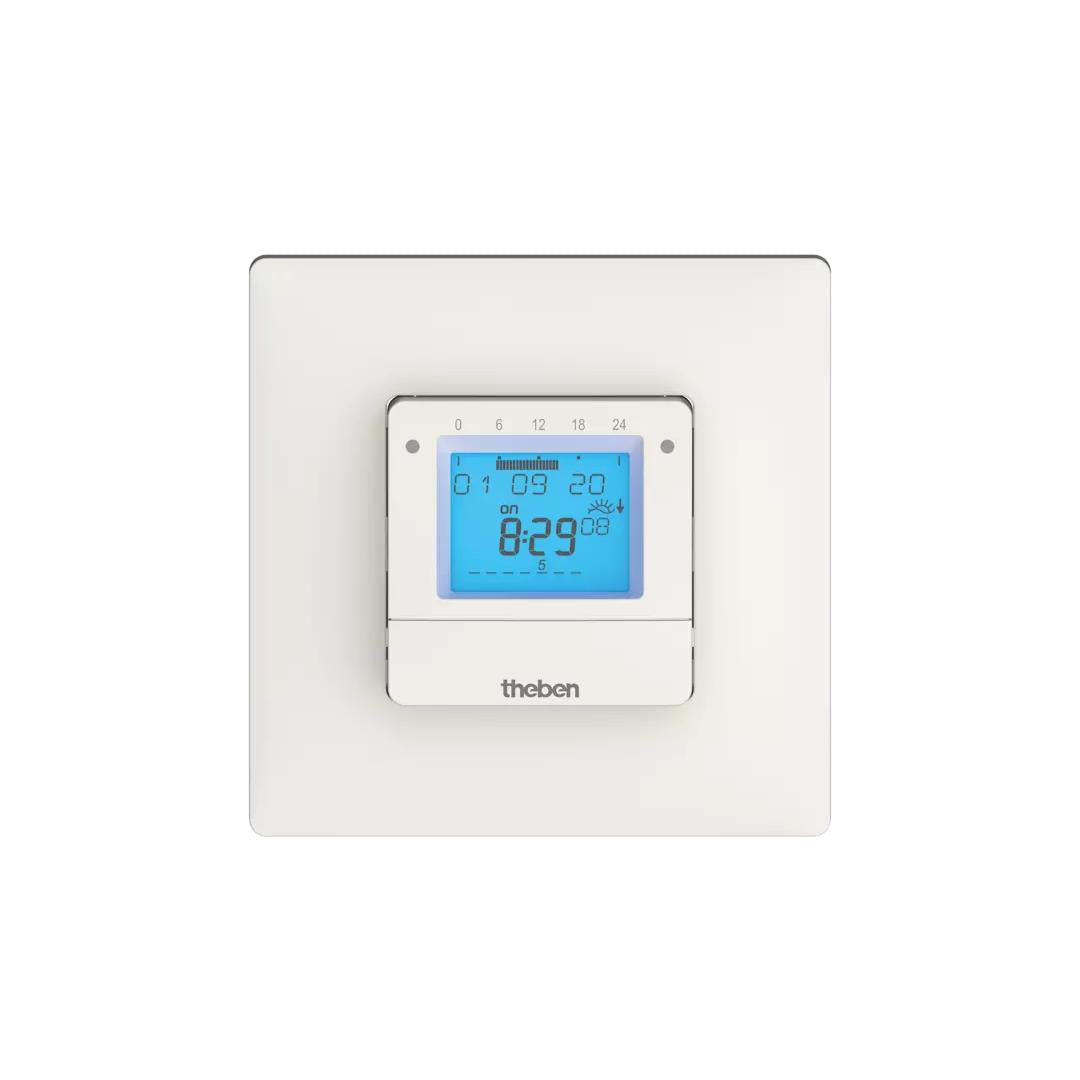

Theben Selekta 070 Top3 Up Digital Flush-Mount Astro Time Switch With Weekly Program

Description

Theben Selekta 070 Top3 Up Digital Flush-Mount Astro Time Switch With Weekly Program

Theben 0700130

  • Digital astro time switch for flush-mounted wall installation
  • Weekly program and astronomical program for precise automated switching
  • Pulse function for flexible control applications
  • Automatic switching at sunrise and sunset based on location data
  • Location programming via coordinates or country and city list
  • Optional app programming with Bluetooth OBELISK top3
  • Tamper-proof data transfer via plug connection
  • High LED switching capacity up to 600 W
  • Very low standby consumption of approx. 0.4 W
  • Power reserve and automatic daylight saving time adjustment
  • PC programmable via OBELISK interface

Designed for professional lighting control, the Theben Selekta 070 Top3 Up combines reliable weekly scheduling with intelligent astro functionality to deliver convenient, energy-efficient operation. Its precise quartz timing, broad programming options, and support for modern LED loads make it a dependable solution for residential and commercial installations where automation, accuracy, and ease of use are essential.

.

Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption ~0.4 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Program Weekly program, Astronomical program
Program functions Pulse
Switching capacity at 250 V AC, cos ? = 1 10 A
Switching capacity at 250 V AC, cos ? = 0,6 2 A
Shortest switching times 1 s
Time accuracy at 25 °C Typical ± 0,25 s/day (quartz)
Length 57 mm
Width 85 mm
Height 85 mm
Net weight 121 g

Read more

Theben Selekta 070 Top3 Up Digital Flush-Mount Astro Time Switch With Weekly Program

Product form

SKU: 0700130

Theben Selekta 070 Top3 Up Digital Flush-Mount Astro Time Switch With Weekly Program Theben 0700130 Digital astro time switch for... Read more

£131.03 ex VAT £157.24 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Program Weekly program, Astronomical program
    Program functions Pulse
    Switching capacity at 250 V AC, cos ? = 1 10 A
    Switching capacity at 250 V AC, cos ? = 0,6 2 A
    Shortest switching times 1 s
    Time accuracy at 25 °C Typical ± 0,25 s/day (quartz)
    Length 57 mm
    Width 85 mm
    Height 85 mm
    Net weight 121 g
      Downloads

    Description

    Theben Selekta 070 Top3 Up Digital Flush-Mount Astro Time Switch With Weekly Program

    Theben 0700130

    • Digital astro time switch for flush-mounted wall installation
    • Weekly program and astronomical program for precise automated switching
    • Pulse function for flexible control applications
    • Automatic switching at sunrise and sunset based on location data
    • Location programming via coordinates or country and city list
    • Optional app programming with Bluetooth OBELISK top3
    • Tamper-proof data transfer via plug connection
    • High LED switching capacity up to 600 W
    • Very low standby consumption of approx. 0.4 W
    • Power reserve and automatic daylight saving time adjustment
    • PC programmable via OBELISK interface

    Designed for professional lighting control, the Theben Selekta 070 Top3 Up combines reliable weekly scheduling with intelligent astro functionality to deliver convenient, energy-efficient operation. Its precise quartz timing, broad programming options, and support for modern LED loads make it a dependable solution for residential and commercial installations where automation, accuracy, and ease of use are essential.

    .

    Operating voltage 230 V AC
    Frequency 50 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Program Weekly program, Astronomical program
    Program functions Pulse
    Switching capacity at 250 V AC, cos ? = 1 10 A
    Switching capacity at 250 V AC, cos ? = 0,6 2 A
    Shortest switching times 1 s
    Time accuracy at 25 °C Typical ± 0,25 s/day (quartz)
    Length 57 mm
    Width 85 mm
    Height 85 mm
    Net weight 121 g

    Read more
