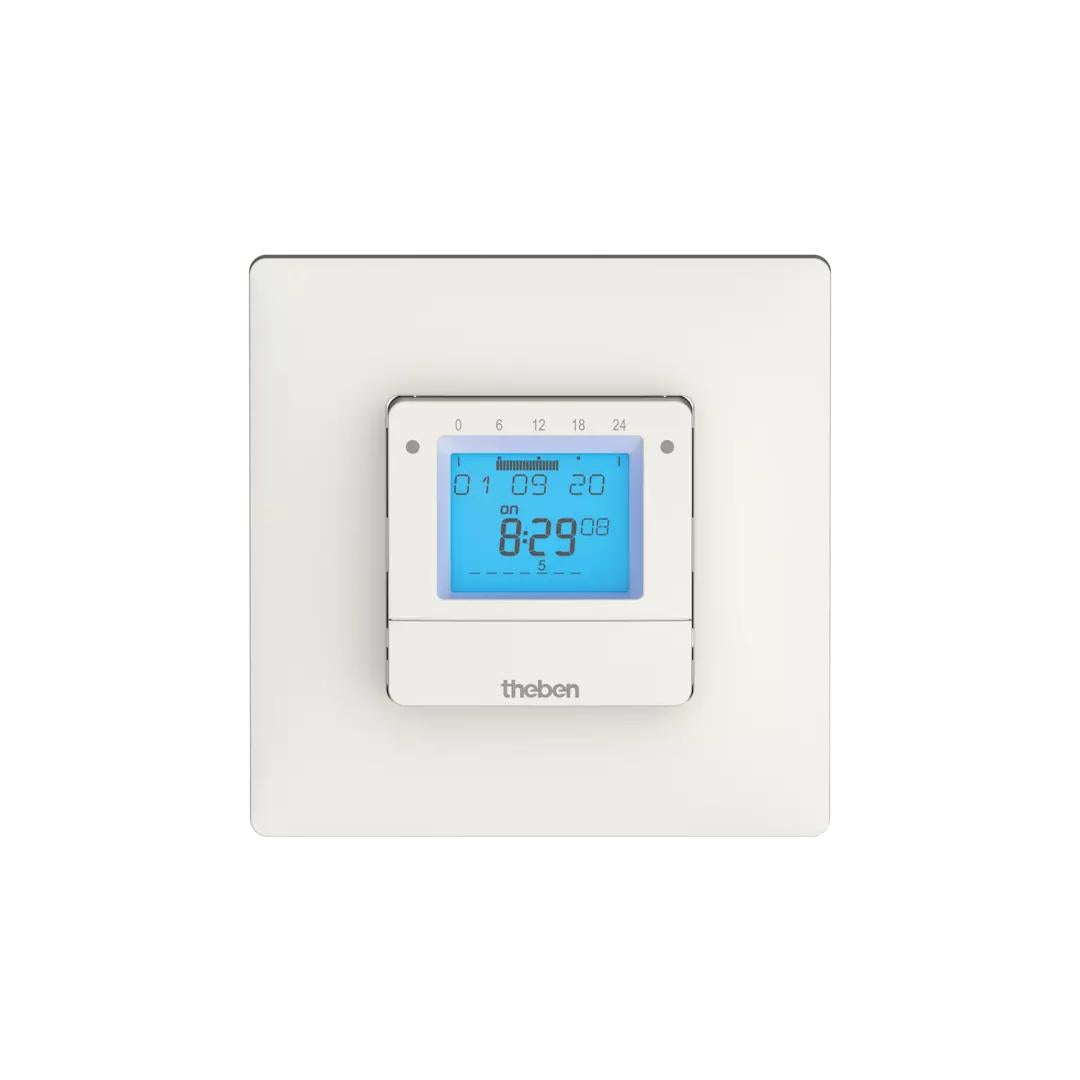

Theben Tr 030 Top3 Up Digital Time Switch Wall-Mounted Weekly Program 1 Channel

Description

Theben Tr 030 Top3 Up Digital Time Switch Wall-Mounted Weekly Program 1 Channel

Theben 0300130

  • Digital time switch for flush-mounted wall installation
  • Weekly program with ON/OFF, pulse, and cycle functions
  • Designed for high LED loads up to 600 W
  • High inrush current handling up to 800 A
  • App-based programming via optional Bluetooth Low Energy OBELISK top3
  • Maximum tamper resistance through adapter-based program transfer
  • Low stand-by consumption of approximately 0.4 W
  • Integrated power reserve and automatic daylight saving time adjustment
  • 100% compatible with top2 systems
  • 100% programmable via PC using the OBELISK interface

This digital time switch combines advanced functionality with efficient operation for professional building control applications. Its weekly program structure supports flexible scheduling, while the robust switching performance makes it suitable for demanding LED installations and general load management. With convenient app-based programming, secure data transfer, and integrated time-saving features, it delivers reliable automation for modern electrical systems.

.

Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption ~0.4 W
Protection class II according to EN 60 730-1
Type of protection IP 20
Program Weekly program
Program functions ON-OFF, Pulse, Cycle
Switching capacity at 250 V AC, cos ? = 1 10 A
Switching capacity at 250 V AC, cos ? = 0,6 2 A
Shortest switching times 1 s
Time accuracy at 25 °C Typical ± 0,25 s/day (quartz)
Length 57 mm
Width 85 mm
Height 85 mm
Net weight 121 g

Read more

Theben Tr 030 Top3 Up Digital Time Switch Wall-Mounted Weekly Program 1 Channel

Product form

SKU: 0300130

Theben Tr 030 Top3 Up Digital Time Switch Wall-Mounted Weekly Program 1 Channel Theben 0300130 Digital time switch for flush-mounted... Read more

£81.60 ex VAT £97.92 inc VAT

Available 10-16 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Operating voltage 230 V AC
    Frequency 50 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Program Weekly program
    Program functions ON-OFF, Pulse, Cycle
    Switching capacity at 250 V AC, cos ? = 1 10 A
    Switching capacity at 250 V AC, cos ? = 0,6 2 A
    Shortest switching times 1 s
    Time accuracy at 25 °C Typical ± 0,25 s/day (quartz)
    Length 57 mm
    Width 85 mm
    Height 85 mm
    Net weight 121 g
      Downloads

    Description

    Theben Tr 030 Top3 Up Digital Time Switch Wall-Mounted Weekly Program 1 Channel

    Theben 0300130

    • Digital time switch for flush-mounted wall installation
    • Weekly program with ON/OFF, pulse, and cycle functions
    • Designed for high LED loads up to 600 W
    • High inrush current handling up to 800 A
    • App-based programming via optional Bluetooth Low Energy OBELISK top3
    • Maximum tamper resistance through adapter-based program transfer
    • Low stand-by consumption of approximately 0.4 W
    • Integrated power reserve and automatic daylight saving time adjustment
    • 100% compatible with top2 systems
    • 100% programmable via PC using the OBELISK interface

    This digital time switch combines advanced functionality with efficient operation for professional building control applications. Its weekly program structure supports flexible scheduling, while the robust switching performance makes it suitable for demanding LED installations and general load management. With convenient app-based programming, secure data transfer, and integrated time-saving features, it delivers reliable automation for modern electrical systems.

    .

    Operating voltage 230 V AC
    Frequency 50 Hz
    Stand-by consumption ~0.4 W
    Protection class II according to EN 60 730-1
    Type of protection IP 20
    Program Weekly program
    Program functions ON-OFF, Pulse, Cycle
    Switching capacity at 250 V AC, cos ? = 1 10 A
    Switching capacity at 250 V AC, cos ? = 0,6 2 A
    Shortest switching times 1 s
    Time accuracy at 25 °C Typical ± 0,25 s/day (quartz)
    Length 57 mm
    Width 85 mm
    Height 85 mm
    Net weight 121 g

    Read more
