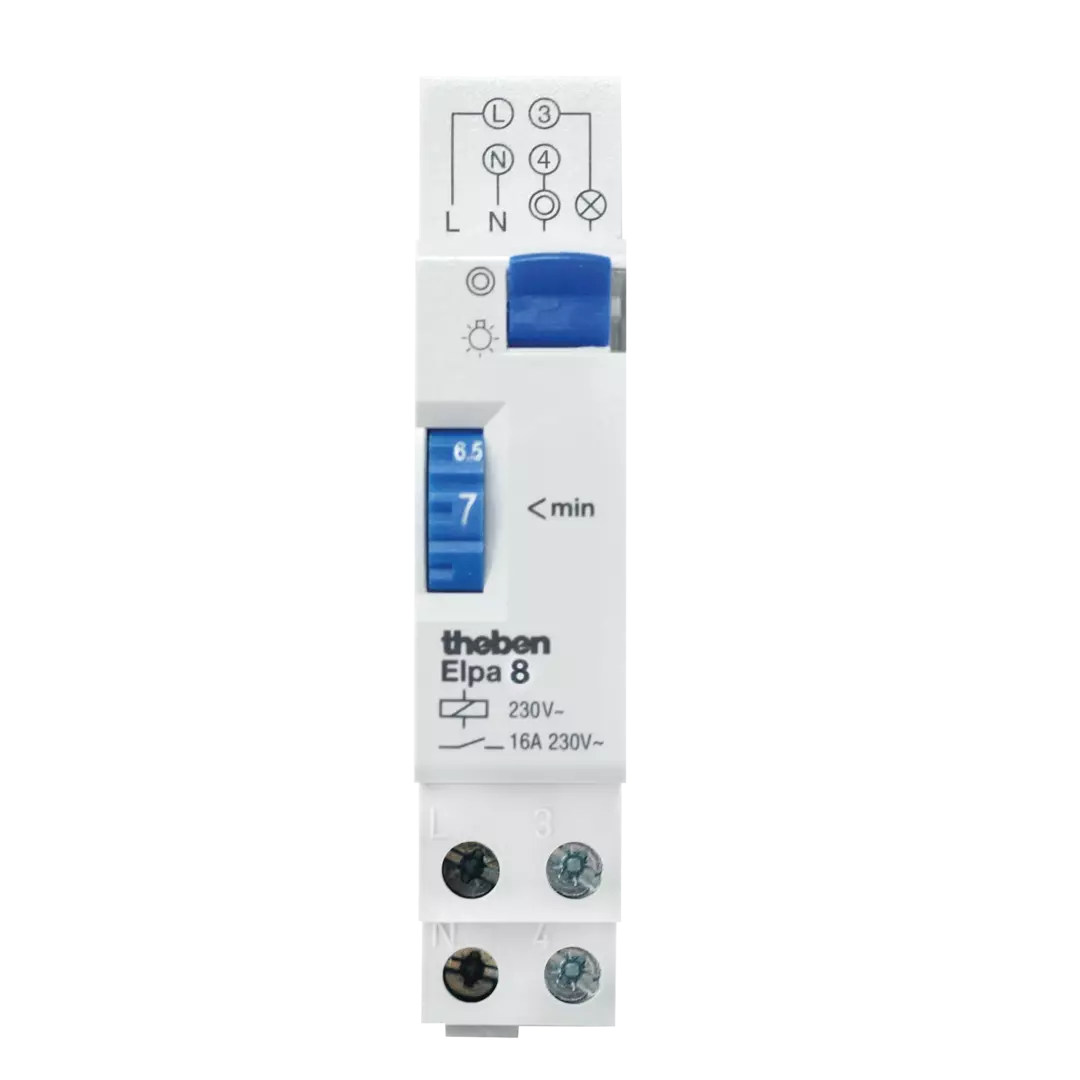

Theben ELPA 8 1 Module DIN Rail Electro-Mechanical Staircase Light Time Switch

Description

Theben ELPA 8 1 Module DIN Rail Electro-Mechanical Staircase Light Time Switch

Theben 0080002

  • Electro-mechanical staircase time switch for DIN rail installation
  • Operating voltage: 230 V AC, 50 Hz
  • Adjustable time setting range: 1 to 7 minutes
  • Suitable for 3/4-way conductor installations
  • Secondary switching after 30 seconds
  • Normally open (NO) contact
  • High switching capacity: 6 AX at 230 V AC (cos ? = 0.3), 16 A at 230 V AC (cos ? = 1)
  • Supports fluorescent lamp load up to 2300 VA
  • Stand-by consumption: approximately 0 W
  • Durable housing made of high-temperature resistant, self-extinguishing thermoplastic
  • Protection class II for enhanced safety
  • Operating temperature range: -10°C to 50°C

Theben ELPA 8 is a reliable and compact staircase time switch designed for efficient lighting control in stairwells, corridors, and other shared spaces. Its robust synchronous motor drive ensures stable and interference-resistant operation, while the analogue dial allows precise adjustment of the delay time between 1 and 7 minutes. With support for both 3-wire and 4-wire installations, the ELPA 8 offers flexible integration into a wide range of electrical systems. The integrated toggle switch enables permanent ON operation when continuous lighting is required, and its zero standby consumption supports energy-conscious operation. Combining high switching performance with a durable DIN rail design, the ELPA 8 is a practical solution for professional lighting applications.

.

Product type Electro-mechanical staircase time switch
Installation DIN rail
Operating voltage 230 V AC
Frequency 50 Hz
Stand-by consumption ~0 W
Capacity loss max. 0.7 W
Time setting range 1 - 7 min
3/4-way conductors Yes
Secondary switching After 30 s
Contact type NO contact
Fluorescent lamp load 2300 VA
Switching capacity 6 AX at 230 V AC, cos ? = 0.3 / 16 A at 230 V AC, cos ? = 1
Housing material High-temperature resistant, self-extinguishing thermoplastic
Ambient temperature -10°C ... 50°C
Protection class II
Dimensions (L x W x H) 64 x 17.5 x 84 mm
Net weight 71 g

Read more

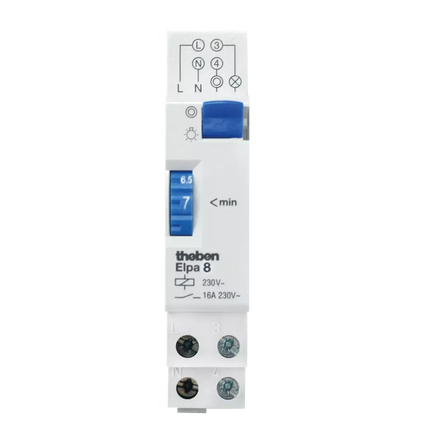

Theben ELPA 8 1 Module DIN Rail Electro-Mechanical Staircase Light Time Switch

Product form

SKU: 0080002

Theben ELPA 8 1 Module DIN Rail Electro-Mechanical Staircase Light Time Switch Theben 0080002 Electro-mechanical staircase time switch for DIN... Read more

£44.23 ex VAT £53.08 inc VAT

Available 1-3 working days  This product is ordered directly from the supplier, as it is not stocked in our warehouse. The displayed ETA reflects the estimated time for us to delivery your order.

    • Guaranteed secure & safe checkout.

      shop pay
    • Free shipping on all orders above £100 + vat
      Specification
    Product type Electro-mechanical staircase time switch
    Installation DIN rail
    Operating voltage 230 V AC
    Frequency 50 Hz
    Stand-by consumption ~0 W
    Capacity loss max. 0.7 W
    Time setting range 1 - 7 min
    3/4-way conductors Yes
    Secondary switching After 30 s
    Contact type NO contact
    Fluorescent lamp load 2300 VA
    Switching capacity 6 AX at 230 V AC, cos ? = 0.3 / 16 A at 230 V AC, cos ? = 1
    Housing material High-temperature resistant, self-extinguishing thermoplastic
    Ambient temperature -10°C ... 50°C
    Protection class II
    Dimensions (L x W x H) 64 x 17.5 x 84 mm
    Net weight 71 g
      Downloads
    Datasheet unavailable for this product at the moment.

    Description

    Theben ELPA 8 1 Module DIN Rail Electro-Mechanical Staircase Light Time Switch

    Theben 0080002

    • Electro-mechanical staircase time switch for DIN rail installation
    • Operating voltage: 230 V AC, 50 Hz
    • Adjustable time setting range: 1 to 7 minutes
    • Suitable for 3/4-way conductor installations
    • Secondary switching after 30 seconds
    • Normally open (NO) contact
    • High switching capacity: 6 AX at 230 V AC (cos ? = 0.3), 16 A at 230 V AC (cos ? = 1)
    • Supports fluorescent lamp load up to 2300 VA
    • Stand-by consumption: approximately 0 W
    • Durable housing made of high-temperature resistant, self-extinguishing thermoplastic
    • Protection class II for enhanced safety
    • Operating temperature range: -10°C to 50°C

    Theben ELPA 8 is a reliable and compact staircase time switch designed for efficient lighting control in stairwells, corridors, and other shared spaces. Its robust synchronous motor drive ensures stable and interference-resistant operation, while the analogue dial allows precise adjustment of the delay time between 1 and 7 minutes. With support for both 3-wire and 4-wire installations, the ELPA 8 offers flexible integration into a wide range of electrical systems. The integrated toggle switch enables permanent ON operation when continuous lighting is required, and its zero standby consumption supports energy-conscious operation. Combining high switching performance with a durable DIN rail design, the ELPA 8 is a practical solution for professional lighting applications.

    .

    Product type Electro-mechanical staircase time switch
    Installation DIN rail
    Operating voltage 230 V AC
    Frequency 50 Hz
    Stand-by consumption ~0 W
    Capacity loss max. 0.7 W
    Time setting range 1 - 7 min
    3/4-way conductors Yes
    Secondary switching After 30 s
    Contact type NO contact
    Fluorescent lamp load 2300 VA
    Switching capacity 6 AX at 230 V AC, cos ? = 0.3 / 16 A at 230 V AC, cos ? = 1
    Housing material High-temperature resistant, self-extinguishing thermoplastic
    Ambient temperature -10°C ... 50°C
    Protection class II
    Dimensions (L x W x H) 64 x 17.5 x 84 mm
    Net weight 71 g

    Read more
